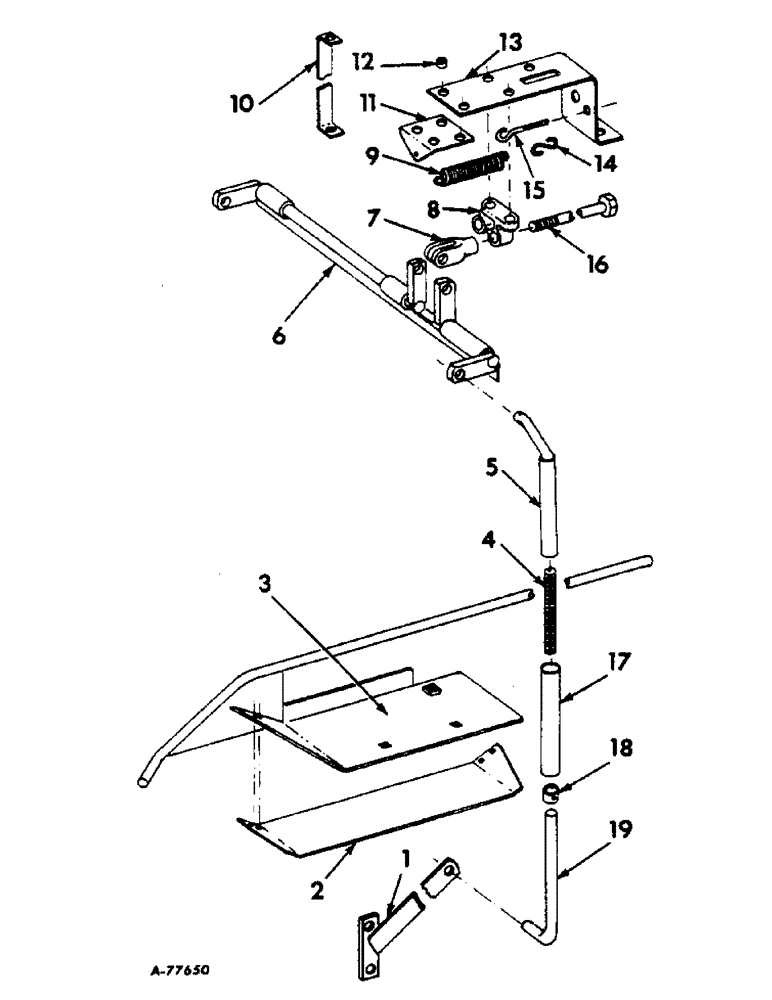

Запчасти Case IH 414 (092) - HYDRAULIC DRUM CONTROL ATTACHMENT, CONTROL VALVE ACTUATING PARTS (35) - HYDRAULIC SYSTEMS

1

669045R91

BRACKET

ASSY, offset left

2шт.

1

669046R91

BRACKET

ASSY, offset right

2шт.

5/16 X 3/4" MACH BOLT

8шт.

5/16" LOCK WASHER

8шт.

2

669060R1

PLATE, runner wear wide

4шт.

2

669061R1

PLATE, runner wear narrow

4шт.

1/2 X 1-1/4" CRG BOLT W/NUT

4шт.

1/2 X 1-3/4" CRG BOLT W/NUT

4шт.

1/2" LOCK WASHER

8шт.

3

669037R91

SHOE

ASSY, plant lifter left

2шт.

3

669038R91

SHOE

ASSY, plant lifter right

2шт.

1/2 X 1-1/4" CRG BOLT W/NUT

4шт.

1/2 X 4" SQ-HD OV-PT SET SCREW

2шт.

1/2" LOCK WASHER

4шт.

4

523677R1

SPRING

push rod

4шт.

5

669052R91

ROD ASSY, upper push left

2шт.

5

669053R91

ROD ASSY, upper push right

2шт.

1/8 X 1" COTTER PIN

2шт.

6

669026R91

ROCKSHAFT ASSY, drum height control left

1шт.

6

669027R91

ROCKSHAFT ASSY, drum height control right

1шт.

3/8 X 3/4" MACH BOLT W/NUT

1шт.

3/8 X 1" MACH BOLT W/NUT

2шт.

3/8" LOCK WASHER

3шт.

7

63229D

CLEVIS

4шт.

3/16 X 1" COTTER PIN

4шт.

D3373

DISC

1/2 X 1-1/2" ST-HD PIN

4шт.

8

669062R1

GUIDE, valve lifter

2шт.

9

626206R1

SPRING

valve lever

2шт.

10

669068R1

SUPPORT, oil tank right inner

1шт.

11

669059R1

ANCHOR, spring

2шт.

12

669572R1

SPACER

valve bracket

38шт.

13

669033R1

BRACKET, hydraulic valve

2шт.

3/8 X 1" MACH BOLT

8шт.

1/2 X 1-1/4" MACH BOLT W/NUT

4шт.

1/2 X 2" MACH BOLT

2шт.

1/2" JAM NUT

4шт.

3/8" LOCK WASHER

8шт.

1/2" LOCK WASHER

4шт.

14

512749R1

HOOK

spring

2шт.

15

345330R1

BOLT, spring eye

2шт.

1/4" NUT

4шт.

16

669067R1

BOLT, valve lifter

4шт.

1/2" JAM NUT

4шт.

17

669058R1

TUBE,30.2 mm OD, 406.5 mm Length

spring cover

4шт.

18

516595R1

COLLAR

lower push rod lock

4шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

1/2 X 3/4" SQ-HD CUP POINT SET SCREW

4шт.

19

669057R1

ROD

lower push (420 cotton picker only)

4шт.

19

669075R1

ROD

lower push (414 cotton picker only)

4шт.

1/8 X 1" COTTER PIN

4шт.
