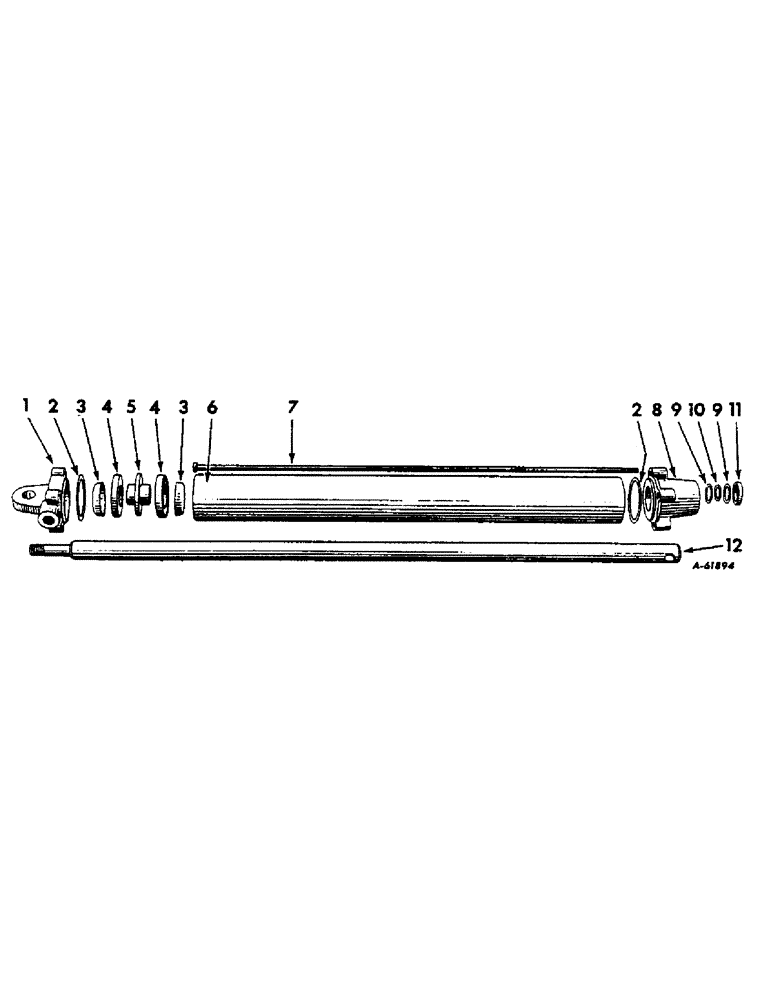

Запчасти Case IH 414 (081[1]) - HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

BASKET HYDRAULIC CYLINDER, (When ordered) (665273R91)

2шт.

1

665234R1

HEAD, rear cylinder

2шт.

2

15109EA

SHIM

GASKET, cylinder head

4шт.

3

450664R2

RETAINER

piston cup

4шт.

4

450665R2

SEAL

piston

4шт.

5

665233R1

PISTON

2шт.

6

664468R1

TUBE, cylinder 3.01" OD, 30.296" Length

2шт.

7

664575R1

BOLT, 3/8 x 33-1/4" mach

8шт.

3/8" NUT

8шт.

3/8" LOCK WASHER

8шт.

8

665235R1

HEAD, front cylinder

2шт.

9

665236R1

RING

seal

4шт.

10

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

2шт.

11

70464H

OIL SEAL, piston

2шт.

12

665232R1

ROD, piston

1шт.

385020R1

NUT

3/4NF NUT

2шт.

25/32 X 1-1/4" X 16 GA WASHER

8шт.
