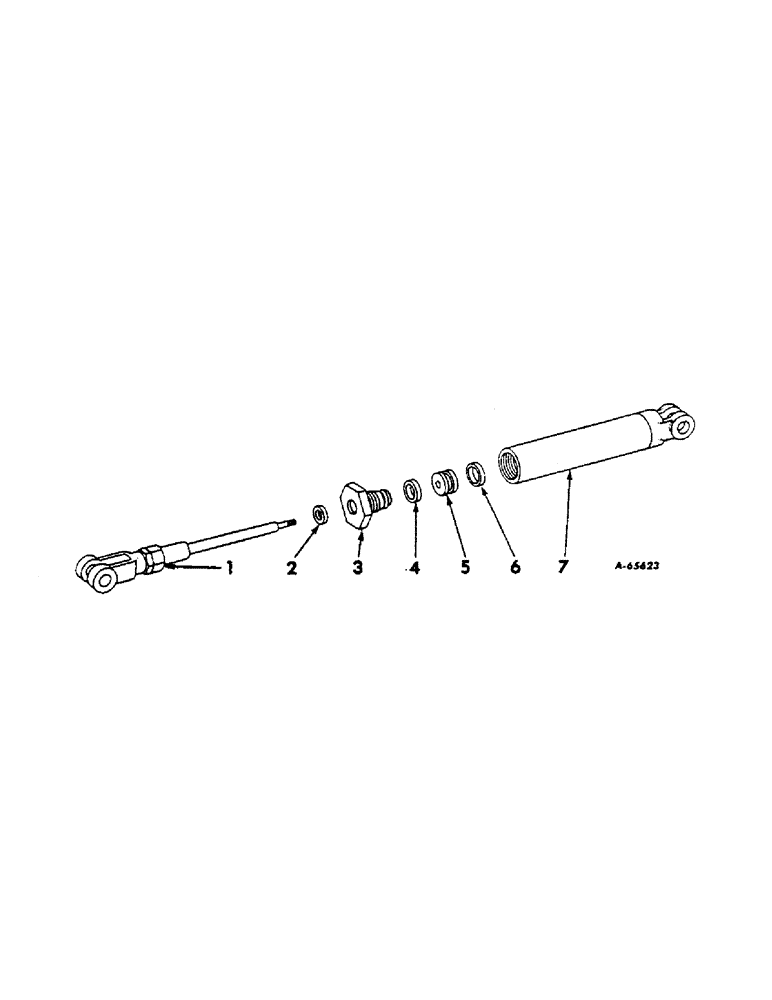

Запчасти Case IH 414 (076[1]) - DRUM DRIVE CYLINDER (35) - HYDRAULIC SYSTEMS

666221R91

CYLINDER

ASSEMBLY, drum drive, Consists of all parts listed below

1шт.

1

574781R91

ROD ASSEMBLY, piston

1шт.

5/16" NUT

1шт.

5/16" LOCK WASHER

1шт.

2

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

3

574779R1

BEARING

1шт.

4

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

5

574780R1

PISTON

1шт.

6

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

1шт.

7

666222R91

BARREL ASSEMBLY

1шт.
