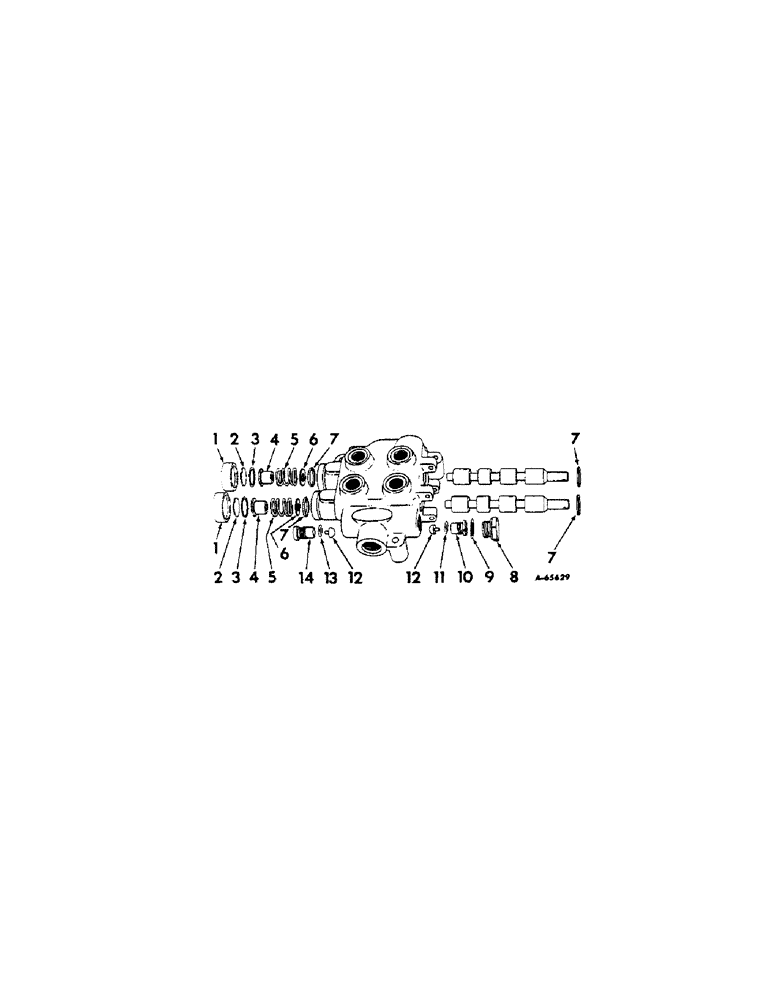

Запчасти Case IH 414 (075) - BASKET AND DRUM DRIVE CONTROL VALVE (35) - HYDRAULIC SYSTEMS

666215R91

VALVE ASSEMBLY, basket and drum drive control, Consists of all parts listed below

1шт.

1

663034R1

CYLINDER END CAP

CAP, bonnet

2шт.

2

663023R1

CAP

end

2шт.

1/4 X 1/2" RD-HD SCREW

2шт.

1/4" INTERNAL TOOTH LOCK WASHER

2шт.

3

663025R1

OIL SEAL

RING, snap

2шт.

4

663022R1

COLLAR

stop

2шт.

5

663024R1

SPRING

centering

2шт.

6

149372R1

WASHER

stop

2шт.

7

663032R1

O-RING

SEAL, spool

4шт.

8

666241R1

CAP, relief plug

1шт.

9

663029R1

GASKET

relief body

1шт.

10

666720R1

PLUG, relief valve seat

1шт.

11

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

relief valve

1шт.

12

666719R1

VALVE POPPET

BALL, check

2шт.

13

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

check ball

1шт.

14

666722R1

PLUG

check ball

1шт.
