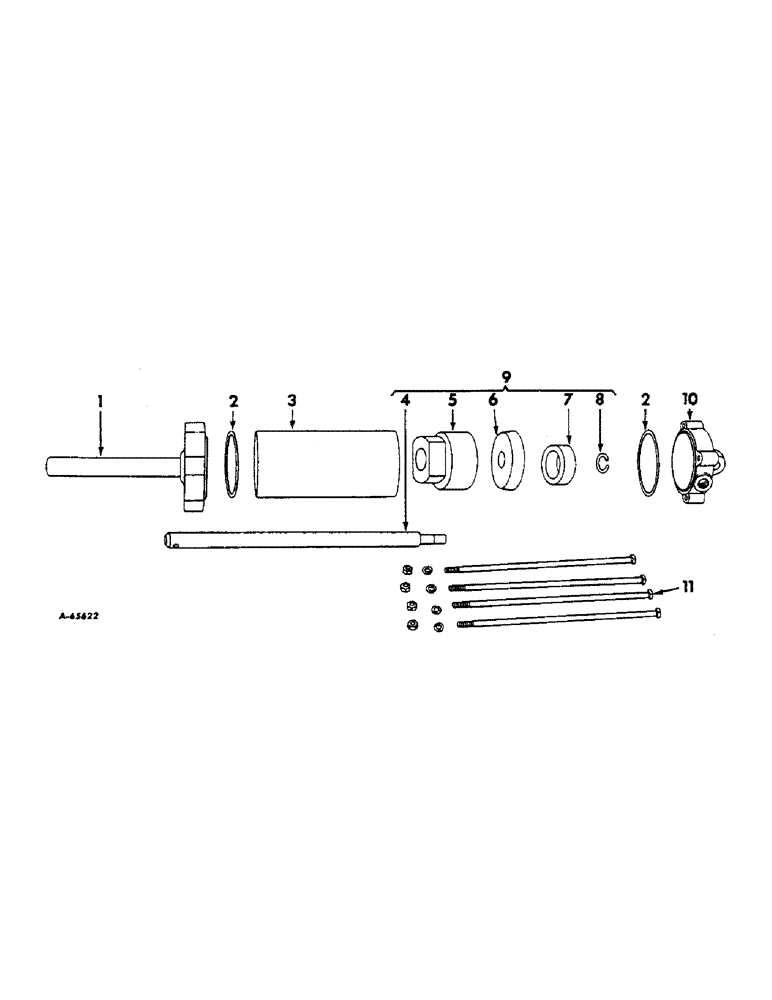

Запчасти Case IH 414 (075[1]) - PICKER DRUM HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

15135EDX

CYLINDER ASSEMBLY, picker drum hydraulic, Consists of all parts listed below

1шт.

1

15095EA

GUIDE

piston rod

2шт.

1

15139EAX

HEAD AND GUIDE ASSEMBLY, front cylinder

2шт.

2

15100EA

O-RING

GASKET, cylinder head

4шт.

3

15096E

SLEEVE, cylinder

2шт.

4

369447R1

ROD, piston

2шт.

5

5192E

PISTON

2шт.

6

15750E

CUP

2шт.

7

15749E

RETAINER

2шт.

8

15254E

RING

snap

2шт.

9

494033R92

PISTON AND ROD ASSEMBLY

2шт.

10

5036EA

HEAD, rear cylinder

2шт.

11

13789R1

BOLT, 3/8 X 13-1/4" sq-hd mach

8шт.

3/8" NUT

8шт.

3/8" LOCK WASHER

8шт.
