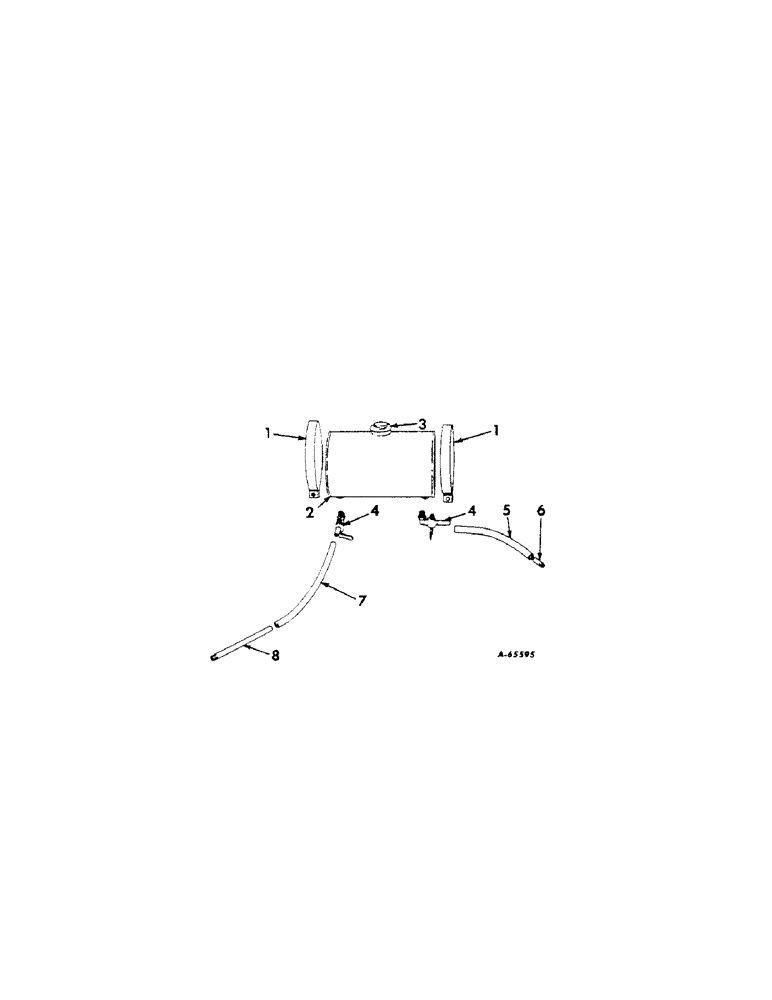

Запчасти Case IH 414 (056) - OIL FLUSH TANK (35) - HYDRAULIC SYSTEMS

1

665974R1

STRAP, oil tank

4шт.

5/16 X 1-1/2" MACH BOLT W/NUT

4шт.

5/16" LOCK WASHER

4шт.

2

665973R91

TANK W/CAP, oil

2шт.

3

364899R91

BREATHER

CAP, oil tank

2шт.

4

665975R91

VALVE, oil flush

4шт.

5

HOSE, oil flush tank short (Use 10 inches of 1/2" hose from 50 foot roll marked, 665181R1)

1шт.

6

665253R1

CONNECTOR, drum oiler hose short

2шт.

7

HOSE, oil flush tank (Use 16 inches of 1/2" hose from 50-foot roll marked, 665181R1)

1шт.

7

HOSE, oil flush tank (Use 17 inches of 1/2" hose from 50-foot roll marked, 665181R1)

1шт.

8

665976R1

NIPPLE, LUBE

CONNECTOR, drum oiler hose long

2шт.
