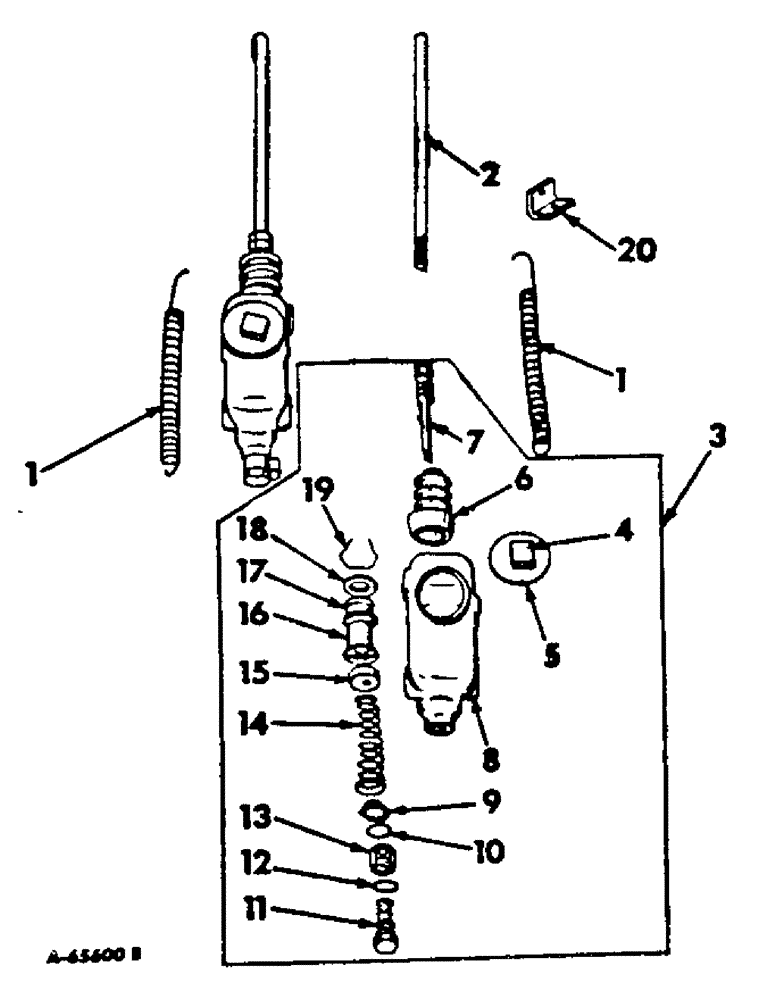

Запчасти Case IH 414 (176) - MASTER CYLINDERS (33) - BRAKES & CONTROLS

1

49599DA

SPRING, brake pedal return

2шт.

2

666007R1

ROD, brake

2шт.

NUT, 7/16NF

2шт.

PIN, 1/8 x 3/4 cotter

2шт.

S3631/2

PIN

3/8 x 1-1/4 std hd

2шт.

3

559380R91

CYLINDER BLOCK

CYLINDER ASSY, basket master

2шт.

BOLT W/NUT, 3/8 x 5-1/2 mach

2шт.

WASHER, 3/8 lock

2шт.

4

561956R91

CAP

W/BAFFLE, filler

2шт.

5

92148H

GASKET

filler cap

2шт.

6

161556R1

BOOT

master cylinder

2шт.

7

561955R91

PUSH BUTTON

ROD, push

2шт.

8

561947R1

TANK, master cylinder

2шт.

9

561949R91

VALVE AND SEAT ASSY

2шт.

10

48166H

WASHER

GASKET, inlet connecting

2шт.

11

48165H

BANJO BOLT

FITTING, connection bolt tube

2шт.

12

561962R1

GASKET

connection inlet

2шт.

13

130998H

CONNECTION, inlet

2шт.

14

561948R91

SPRING AND RETAINER ASSY

2шт.

15

561958R1

CUP, master cylinder

2шт.

16

PISTON, Order kit, 562917R91

1шт.

17

CUP, Order kit, 562917R91

1шт.

18

PLATE, Order kit, 562917R91

1шт.

19

WIRE, Order kit, 562917R91

1шт.

20

668082R1

ANCHOR

spring

1шт.

BOLT W/NUT, 3/8 x 3/4 mach

1шт.

WASHER, 3/8 lock

1шт.

562917R91

KIT

master cylinder, service package, Consists of

1шт.

161556R1

BOOT

1шт.

561958R1

CUP

1шт.

561950R91

PISTON

(NSS)

1шт.

561949R91

VALVE

1шт.

561953R1

WIRE (NSS)

1шт.
