(131) - MAIN AXLE SUPPORT

Запчасти Case IH 414 (131) - MAIN AXLE SUPPORT (25) - FRONT AXLE SYSTEM

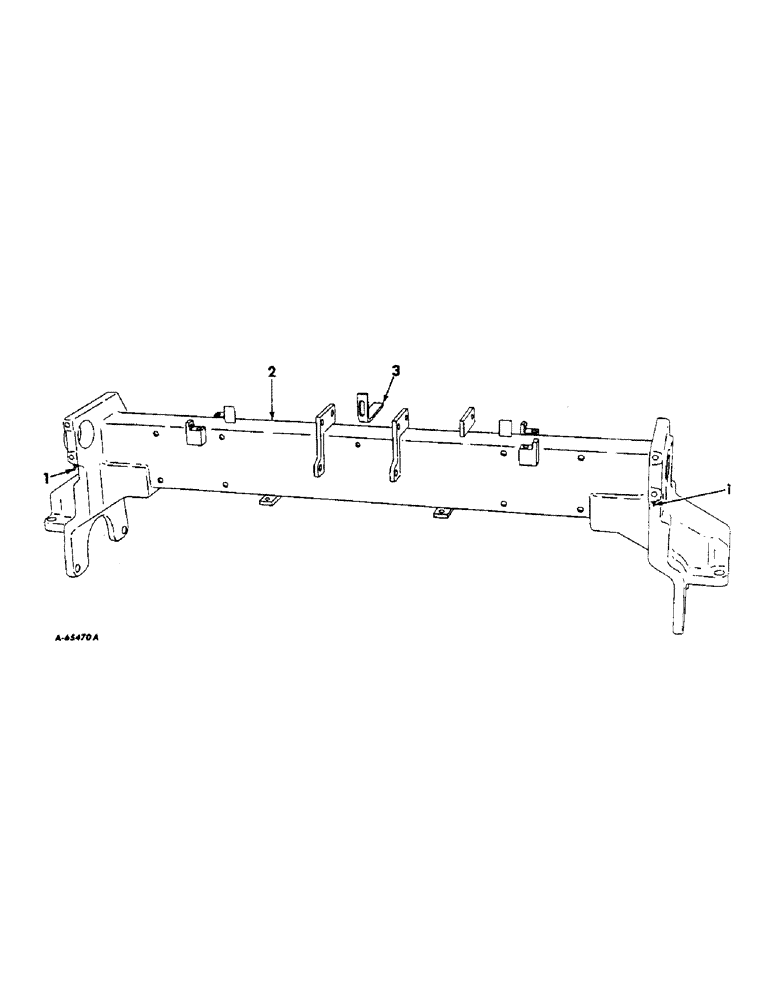

Схема запчастей Case IH 414 - (131) - MAIN AXLE SUPPORT (25) - FRONT AXLE SYSTEM
1
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8 self-tapping lubrication

2шт.

2

666136R92

SUPPORT, main axle

1шт.

SCREW W/NUT, 1/2 x 5-1/4 cap

8шт.

WASHER, 1/2 lock

8шт.

3

665972R1

GUIDE, belt upper

1шт.

BOLT W/NUT, 3/8 x 4-3/4 mach

1шт.

WASHER, 3/8 lock

1шт.
