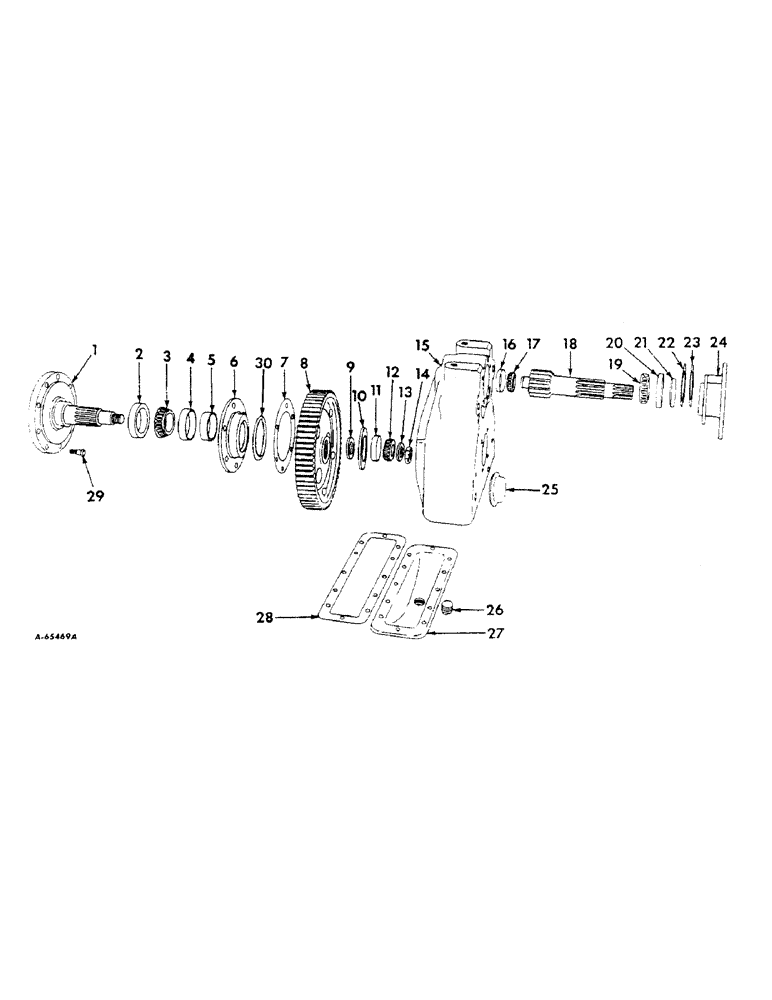

Запчасти Case IH 414 (030[1]) - FINAL DRIVE (25) - FRONT AXLE SYSTEM

1

376448R2

SHAFT, final drive

2шт.

1/8 X 2" COTTER PIN

2шт.

2

380185R91

OIL SEAL

OIL SEAL, final drive shaft outer bearing cage

2шт.

3

ST2073

TAPERED BEARING,2.625" ID x 4.4375" OD x 1.1875"

CONE, final drive shaft outer bearing

2шт.

4

13363D

TAPERED BEARING

CUP, final drive shaft outer bearing

2шт.

5

380282R1

SPACER, final drive outer bearing

2шт.

6

583236R1

CAGE, final drive shaft outer bearing

2шт.

7/16 X 1-1/4" CAP SCREW

12шт.

7/16" LOCK WASHER

12шт.

7

583244R1

GASKET, final drive shaft outer bearing cage (Note A)

2шт.

8

384101R91

GEAR ASSEMBLY, final drive

2шт.

373109R1

FINAL DRIVE GEAR RIVET

12шт.

9

376452R1

SPACER, final drive shaft inner bearing

2шт.

10

376459R1

RETAINER, final drive shaft inner bearing

2шт.

297330R1

BOLT

3/8 X 1" NYLOCK CAP SCREW

8шт.

11

ST863

BEARING CUP,93.22mm OD x 23.81mm W

CUP, final drive shaft inner bearing

2шт.

12

ST2100

TAPERED BEARING,44.45mm ID x 93.264mm OD x 30.18mm

CONE, final drive shaft inner bearing

2шт.

13

589765R1

WASHER

final drive shaft inner

2шт.

14

73177R1

NUT

final drive shaft

2шт.

15

376446R2

HOUSING, left final drive

1шт.

15

376447R2

HOUSING, right final drive

1шт.

7/8" JAM NUT

4шт.

7/8 X 2-1/4" CAP SCREW

4шт.

7/8 X 5-3/4" CAP SCREW

4шт.

7/8" LOCK WASHER

8шт.

16

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Final drive pinion shaft outer

2шт.

17

618023R1

CONE

final drive pinion shaft outer bearing

2шт.

18

376461R2

SHAFT

final drive pinion

2шт.

19

56934D

ROLLER BEARING,2.1663" ID x 3.8125" OD x 0.8268"

CONE, final drive pinion shaft inner bearing

2шт.

20

105497H

BEARING CUP,96.85mm OD x 15.77mm W

CUP, final drive pinion shaft inner bearing

2шт.

21

380186R91

OIL SEAL

OIL SEAL, brake housing adapter

2шт.

22

317923R1

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

brake housing adapter

2шт.

23

376467R1

SHIM

brake housing adapter light

4шт.

24

379506R1

ADAPTER, brake housing

2шт.

141279

DOWEL,1/2" x 3/4"

1/2 X 3/4" DOWEL PIN

2шт.

376465R1

7/16 X 1-1/4" NYLOCK CAP SCREW

10шт.

25

583238R1

PLATE

CAP, final drive shaft inner bearing

2шт.

26

217-442

PLUG,3/4" - 14

3/4" sq-hd pipe

4шт.

27

587078R91

PAN ASSY.

PAN ASSEMBLY, final drive housing

2шт.

3/8 X 3/4" CAP SCREW

24шт.

3/8" LOCK WASHER

24шт.

28

587655R1

GASKET

final drive housing pan

2шт.

29

389075R1

BOLT,Serr, 9/16" - 18 x 1.812"

wheel

18шт.

663106R1

SPECIAL NUT

DRIVE WHEEL BOLT NUT

18шт.

30

252741R1

O-RING

final drive housing (Note B)

2шт.

61991R91

BREATHER,1/8"-27 NPT, Short, w/washer

final drive housing oil

2шт.
