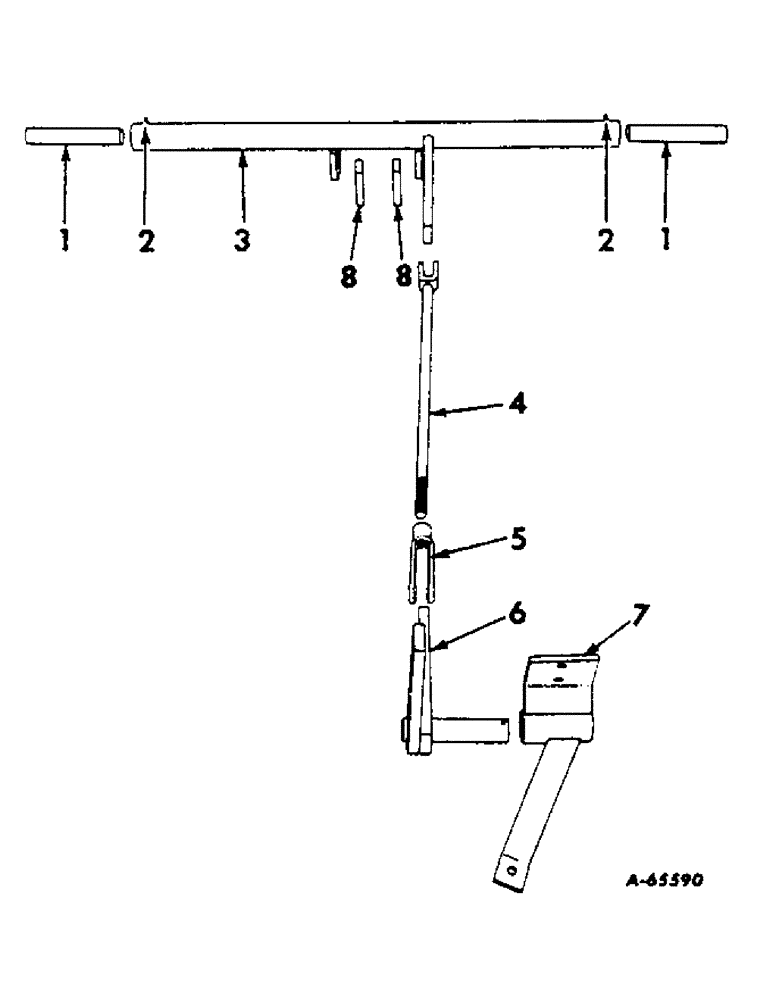

Запчасти Case IH 414 (154) - GROUND DRIVE THROW-OUT (18) - CLUTCH

1

666563R1

SHAFT, throw-out yoke pivot

2шт.

PIN, 1/4 x 4-1/2 cotter

2шт.

2

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 lubrication

3шт.

3

666147R91

SHAFT, throw-out, welded assy

1шт.

WASHER, 1-5/32 x 1-3/4 x 22 ga

2шт.

WASHER, 1-5/32 x 1-3/4 x 16 ga

3шт.

4

666153R91

ROD, ground drive clutch, welded assy

1шт.

NUT, 5/8NF

1шт.

5

127786

ADJUSTABLE CLEVIS,5/16"-18 x 4 15/16"

CLEVIS, 5/8 adjustment rod end

1шт.

PIN, 1/8 x 1 cotter

4шт.

114788

AXLE PIN

PIN, 5/8 rod end

4шт.

6

666155R91

ROCKSHAFT, ground drive, welded assy

1шт.

PIN, 3/16 x 1-3/4 cotter

1шт.

WASHER, 1-9/32 x 2 x 16 ga

1шт.

7

666158R91

BEARING, ground drive rockshaft, welded assy

1шт.

BOLT W/NUT, 3/8 x 1 mach

2шт.

WASHER, 3/8 lock

2шт.

8

666502R1

SUPPORT

PLATE, throw-out arm

2шт.

BOLT, 3/8 x 1-1/4 mach

4шт.

WASHER, 3/8 lock

4шт.
