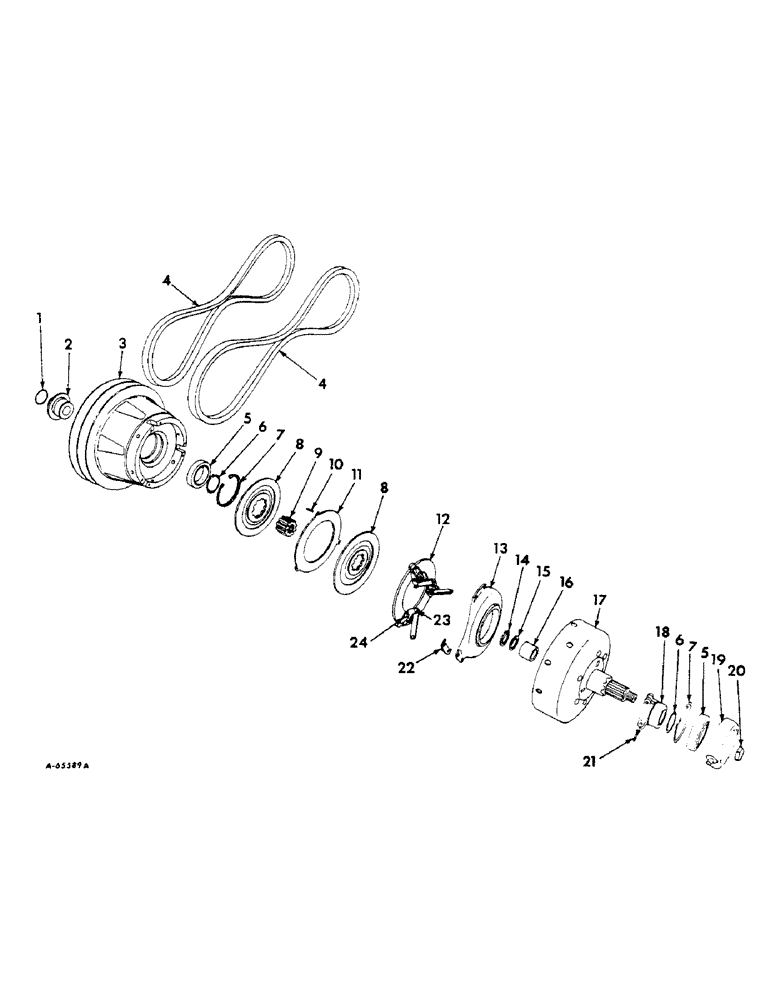

Запчасти Case IH 414 (047) - GROUND DRIVE CLUTCH (18) - CLUTCH

1

306351R1

O-RING

pinion shaft

1шт.

2

666350R11

SUPPORT W/DUST SHIELD, bearing

1шт.

3

666348R1

PULLEY, drum drive

1шт.

3/8 X 3/4" MACH BOLT

6шт.

3/8" LOCK WASHER

6шт.

4

665970R1

V-BELT,93.50" L

Main drive 93.50" L

2шт.

5

610921R91

BALL BEARING

limit clutch

2шт.

6

300026R1

RING

SNAP RING, bearing retainer small

2шт.

7

374010R1

RING, SNAP

SNAP RING, bearing retainer large

2шт.

8

666353R92

LARGE PLATE

MEMBER, clutch driven

2шт.

9

666355R1

ADAPTER

SLEEVE, adapter

1шт.

10

666354R1

SPRING

separator

3шт.

11

666356R1

PLATE

center

1шт.

12

666359R91

PLATE ASSY.

PLATE AND LEVER ASSEMBLY, pressure

1шт.

13

666357R91

PLATE, back

1шт.

5/16 X 3/4" CD-PLTD CAP SCREW

6шт.

5/16" LOCK WASHER

6шт.

14

666537R1

SNAP RING, internal

1шт.

15

666687R1

WASHER, bearing retainer

1шт.

16

666362R91

BEARING

needle roller

1шт.

17

666361R11

SHAFT AND HOUSING (Welded assembly)

1шт.

1/8 X 2" COTTER PIN

1шт.

615196R1

WASHER

29/32 X 1-3/4" X 11 GA WASHER

1шт.

18

666351R1

SLEEVE

release

1шт.

19

666352R1

CARRIER

release bearing

1шт.

20

111424H

NUT, 7/8 NF

1шт.

21

42947V

CLEVIS PIN,1/4" x 1 1/8"

PIN, 1/4 X 1-1/8" ROD END

3шт.

1/16 X 1/2" COTTER PIN

3шт.

22

666358R91

SHIM

back plate

1шт.

23

667303R1

PIN

clevis short

3шт.

667302R1

RING

SNAP RING, external

3шт.

24

667304R1

PIN

clevis long

3шт.

667302R1

RING

SNAP RING, external

3шт.
