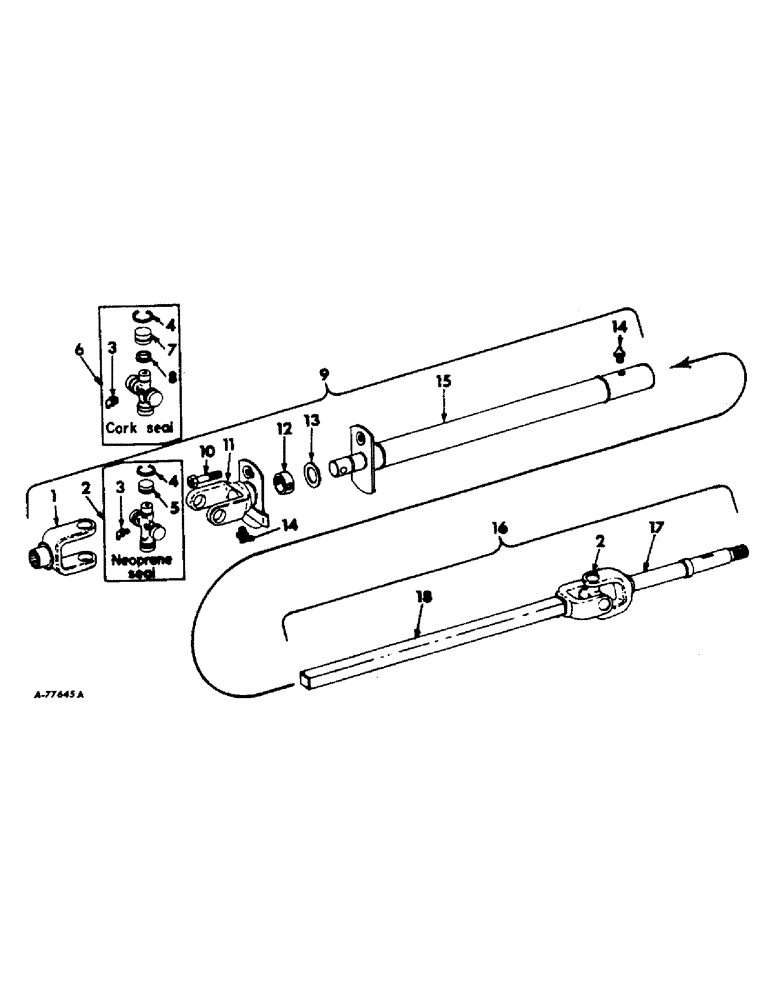

Запчасти Case IH 414 (152) - DRUM DRIVE SHAFT (14) - MAIN GEARBOX & DRIVE

1

659048R1

YOKE

2шт.

2

669564R91

CROSS

KIT, cross service, neoprene seal

2шт.

3

271284

YOKE

lubrication

2шт.

4

661657R1

RING

snap

8шт.

5

669565R91

CAP

BEARING ASSY, cross

8шт.

6

659262R91

U-JOINT SPIDER

KIT, cross service, cork seal

2шт.

7

661655R91

BEARING ASSY,0.59375" ID x 1.0625" OD x 0.4375"

ASSY, cross

8шт.

8

661656R1

WASHER, cork

8шт.

9

668342R91

SHAFT ASSY, front half drive

1шт.

10

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

w/nut, shear bolt Hex, 1/4"-20 x 1 1/2", G5

2шт.

WASHER, 1/4 lock

2шт.

11

666500R91

YOKE, flanged

2шт.

12

665265R1

RING, thrust

2шт.

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

2шт.

13

665264R1

WASHER, shear bolt

2шт.

14

273354

SHEAVE

FITTING, lubrication

4шт.

15

666496R91

TUBULAR ASSY, drive

2шт.

16

667267R91

SHAFT ASSY, rear half drive

1шт.

17

666234R91

YOKE

SHAFT W/YOKE

2шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8NF sltd hex

2шт.

PIN, 1/8 x 1-1/2 cotter

1шт.

PO12898

WASHER

29/32 x 1-1/2 x 11 ga

2шт.

18

666236R91

SHAFT ASSY, rectangular

2шт.
