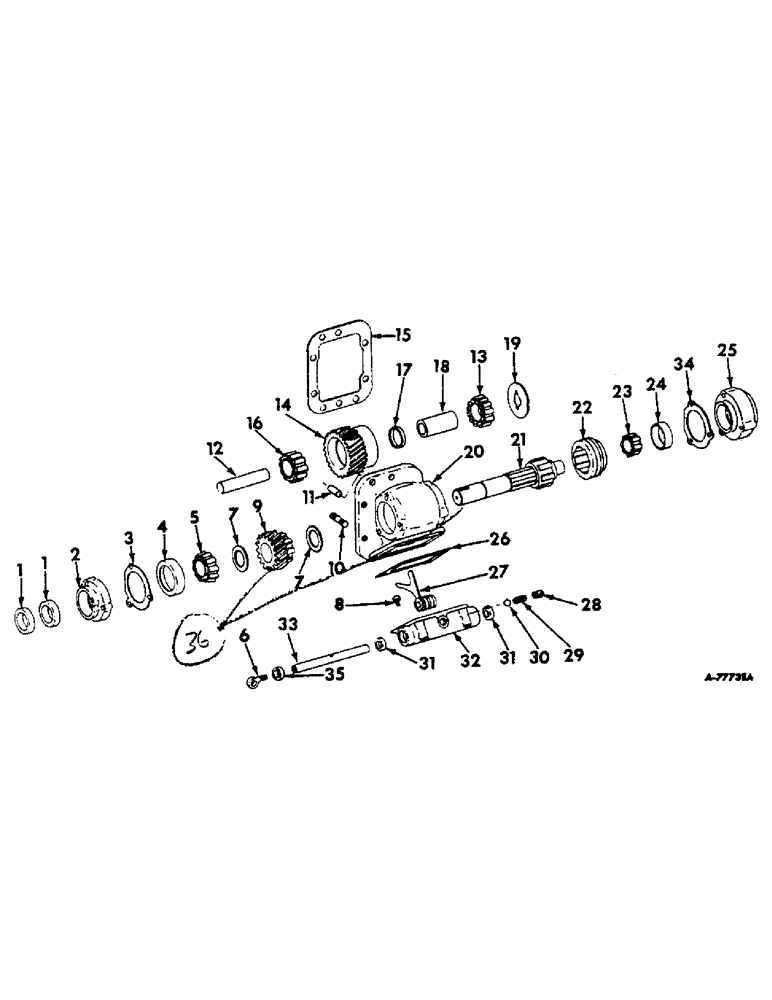

Запчасти Case IH 414 (147) - POWER TAKE-OFF, 416780K AND ABOVE, 4221193K AND ABOVE (14) - MAIN GEARBOX & DRIVE

670840R92

POWER TAKE-OFF ASSY

1шт.

1

112052R91

SEAL

drive shaft oil

2шт.

2

671019R1

CAP, bearing front

1шт.

665449R1

SCREW, 5/16-18 x 1-1/4 hex hd cap nylock

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

671021R1

BEARING CAP,2.735" ID x 0.005"

GASKET, bearing cap front, .005

1шт.

4

671033R1

BEARING, CUP

BEARING, drive shaft front cup

1шт.

5

671032R91

BEARING ASSY

ASSY, drive shaft front cone

1шт.

6

668097R1

BOLT, shifter eye

1шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

7

668091R1

WASHER, thrust

2шт.

8

668093R1

BOLT (SPREADER),Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 hex-hd cap dld hd

1шт.

9

671029R1

GEAR, output

1шт.

10

668892R1

STUD, PTO

6шт.

11

20024R1

PIN

PTO dowel

2шт.

12

666282R1

SHAFT, idler gear

1шт.

13

258501R1

BEARING ASSY, idler gear rear

1шт.

14

671018R1

GEAR, idler

1шт.

15

666629R2

GASKET

SHIM, .005

2шт.

15

666630R2

GASKET

SHIM, .0075

2шт.

15

666631R2

GASKET

SHIM, .020

2шт.

16

669518R91

BEARING ASSY,1.378" ID x 2.6734" OD x 1.375"

ASSY, idler gear front

1шт.

17

669520R1

WASHER

SPACER, idler gear bearing

1шт.

18

666286R1

SLEEVE, idler shaft

1шт.

19

666287R1

WASHER, notched thrust

1шт.

20

671015R1

HOUSING

1шт.

217910

SCREW

3/8-16 x 5/8 hex soc hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

672549R1

SCREW, 1/4-20 x 1/2 hex-soc ov-pt set

1шт.

21

671017R1

SHAFT

drive

1шт.

22

668090R1

CLUTCH, sliding

1шт.

23

666663R91

BEARING, ROLLER

BEARING ASSY, drive shaft rear cone

1шт.

24

350772R1

CUP ASSY.

BEARING, drive shaft rear cup

1шт.

25

666290R21

CAP W/BEARING CUP, rear

1шт.

666666R1

SCREW, 5/16-18 x 1-5/8 hex hd cap nylock

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

26

300687R1

GASKET

shifter cover

1шт.

27

671016R91

FORK, shifter

1шт.

28

103884

PLUG,Slotted, 1/4" NPT

1/4 slt-hdls pipe

1шт.

29

668101R1

SPRING, shifter

1шт.

30

17014R1

BALL

7/16 steel

1шт.

31

132707R91

SEAL

shifter shaft oil

1шт.

32

668094R1

COVER, shifter

1шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

665447R1

BOLT,Hex, 5/16" - 18 x 3/4", Pellet

SCREW, 5/16-18 x 3/4 hex-hd cap nylock

1шт.

33

668096R1

SHAFT, shifter

1шт.

34

671021R1

BEARING CAP,2.735" ID x 0.005"

GASKET, end plate, .005

1шт.

34

671022R1

GASKET, end plate, .012

1шт.

34

671020R1

GASKET, end plate, .003

1шт.

35

661629R1

SLEEVE, shifter shaft

1шт.
