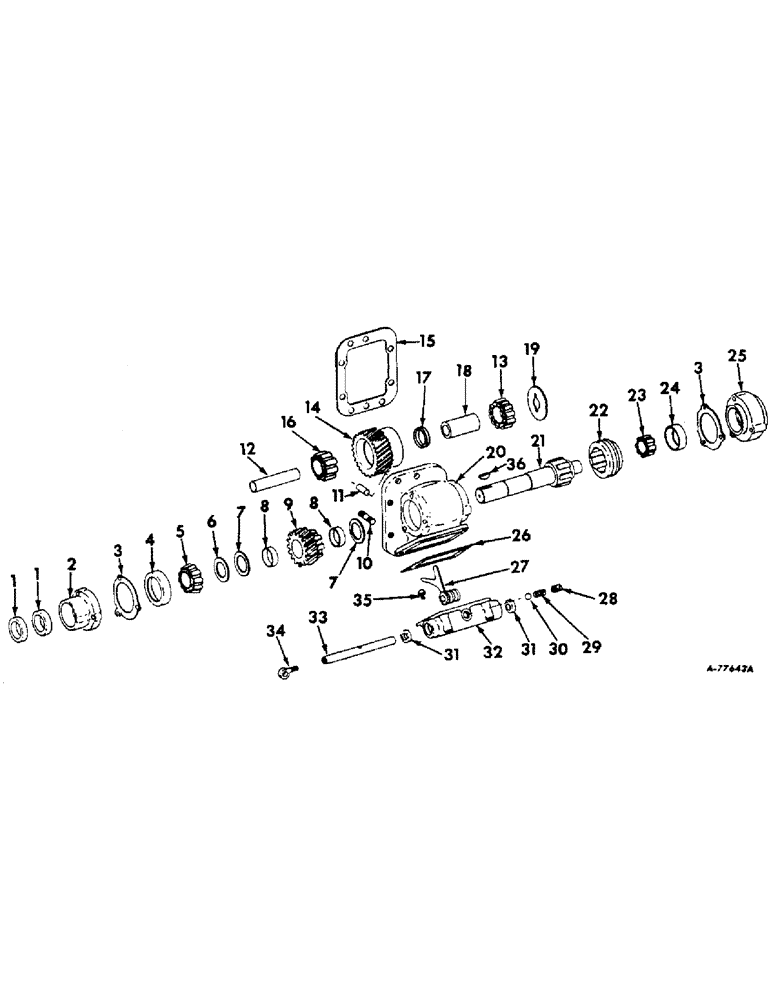

Запчасти Case IH 414 (145) - POWER TAKE-OFF, 416501H THROUGH 799H, 422501H THROUGH 1192H (14) - MAIN GEARBOX & DRIVE

666213R93

POWER TAKE-OFF ASSY

1шт.

1

112052R91

SEAL

OIL SEAL, drive shaft

2шт.

2

666289R1

CAP, bearing

1шт.

665449R1

SCREW, 5/16 x 1-1/4 cap

3шт.

WASHER, 5/16 lock

3шт.

3

666291R1

GASKET, end plate, .005

1шт.

3

666292R1

GASKET, end plate, .010

1шт.

3

666293R1

GASKET, end plate, .003

1шт.

4

13822V

BEARING

CUP, drive shaft front bearing

1шт.

5

59756H

CONE

drive shaft front bearing

1шт.

6

668092R1

SPACER, drive shaft bearing

1шт.

7

668091R1

WASHER, drive gear thrust

2шт.

8

668087R1

BUSHING, drive gear

2шт.

9

668086R11

GEAR, drive

1шт.

10

668892R1

STUD, PTO

6шт.

666639R1

LOCK NUT,3/8"-24, GB

NUT, 3/8NF lock

6шт.

11

20024R1

PIN

PTO dowel

2шт.

12

666282R1

SHAFT, idler gear

1шт.

13

258501R91

BEARING

idler gear

1шт.

14

669519R1

GEAR, idler

1шт.

120680

SCREW, 1/4 x 1/2 hex-soc set

1шт.

15

666629R2

GASKET

PTO housing, .005

2шт.

15

666630R2

GASKET

PTO housing, .0075

2шт.

15

666631R2

GASKET

PTO housing, .020

2шт.

16

669518R91

BEARING ASSY,1.378" ID x 2.6734" OD x 1.375"

idler gear front

1шт.

17

669520R1

WASHER

SPACER, idler gear bearing

1шт.

18

666286R1

SLEEVE, idler shaft

1шт.

19

666287R1

WASHER, notched thrust

2шт.

20

666276R1

HOUSING

1шт.

217910

SCREW

3/8 x 5/8 Allen cap

1шт.

WASHER, 3/8 lock

1шт.

21

668089R1

SHAFT, drive

1шт.

22

668090R1

CLUTCH, sliding

1шт.

23

666663R91

BEARING, ROLLER

CONE, drive shaft bearing rear

1шт.

24

350772R1

CUP ASSY.

CUP, drive shaft bearing rear

1шт.

25

666290R1

CAP W/BEARING CUP, end

1шт.

666666R1

SCREW, 5/16 x 1-5/8 cap

3шт.

WASHER, 5/16 lock

3шт.

26

300687R1

GASKET

shift cover

1шт.

27

668095R1

FORK, shifter

1шт.

28

103884

PLUG,Slotted, 1/4" NPT

pipe headless

1шт.

29

668101R1

SPRING, shifter

1шт.

30

17014R1

BALL

7/16 steel

1шт.

31

132707R91

SEAL

OIL SEAL, shifter shaft

2шт.

32

668094R1

COVER SHIFTER

1шт.

665447R1

BOLT,Hex, 5/16" - 18 x 3/4", Pellet

SCREW, 5/16 x 3/4 nylock cap

2шт.

SCREW, 5/16 x 2 cap

2шт.

WASHER, 5/16 lock

6шт.

33

668096R1

SHAFT, shifter

1шт.

34

668097R1

EYEBOLT, shifter

1шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

35

668093R1

BOLT (SPREADER),Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16 x 5/8 dld-hd cap

1шт.

36

124557

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

KEY, 5/16 x 1-1/8 Woodruff

1шт.
