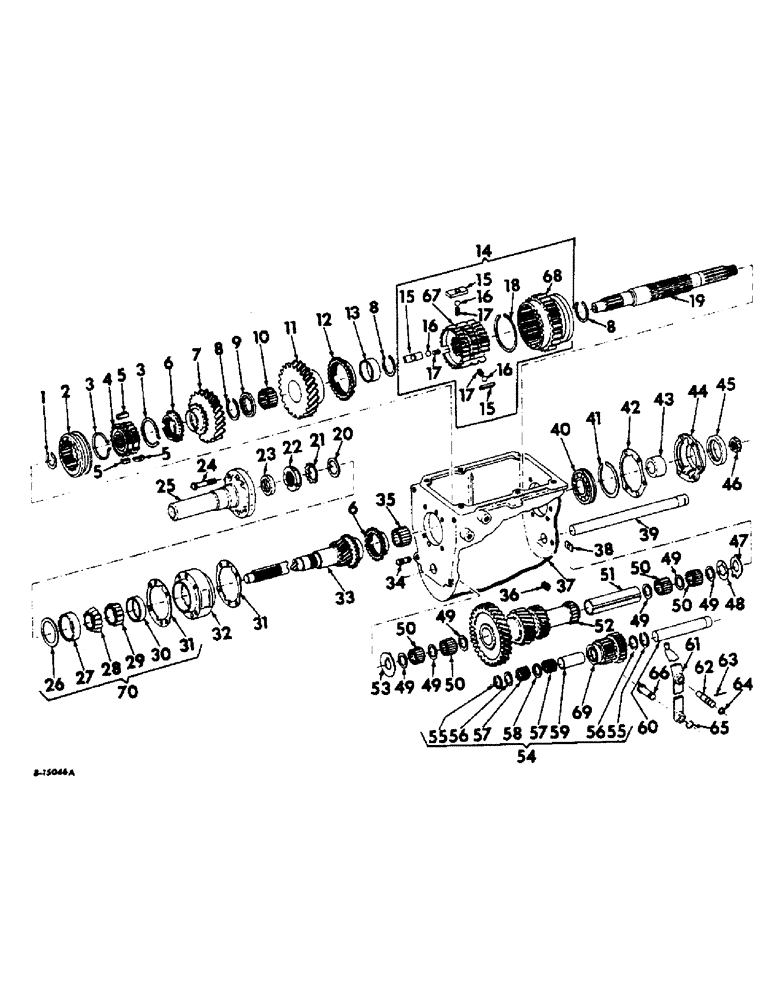

Запчасти Case IH 414 (143) - TRANSMISSION, 416780K AND ABOVE, 4221193K AND ABOVE (14) - MAIN GEARBOX & DRIVE

670973R93

TRANSMISSION ASSY, Consists of parts listed below and parts shown in transmission control lever and housing unit

1шт.

20024R1

PIN

3/8 x 1 dowel

2шт.

103026

NUT,3/8"-24, G5

6шт.

20285H

WASHER

13/32 x 3/4 x 11 ga

6шт.

1

71841R1

RING

clutch hub snap

1шт.

2

NOT SERVICED SEPARATELY, See ref. 4

1шт.

3

317444C1

SPRING

synchronizer

2шт.

4

71835R1

HUB AND SLEEVE, second and direct, Composed of ref nos 2 and 4

1шт.

5

71838R1

PLATE ASSY.

PLATE, shifting

3шт.

6

71840R1

RING

synchronizer blocking

2шт.

7

666274R11

GEAR W/BUSHING

1шт.

8

71843R1

RING

main shaft snap

3шт.

9

71842R1

WASHER

second speed gear thrust

1шт.

10

71846R1

BEARING, roller

34шт.

11

666273R1

GEAR, main shaft second speed

1шт.

12

71847R1

RING

synchronizer blocking

1шт.

13

82079R1

SPACER, bearing

1шт.

14

317447C91

GEAR ASSY, low and second speed

1шт.

15

82080R1

PLATE, shifting

3шт.

16

16012R1

BALL

3/8 steel

3шт.

17

73298R1

SPRING

3шт.

18

82082R1

RING, SNAP

RING, shift plate retaining

1шт.

19

71834R2

SHAFT, main

1шт.

20

671012R1

WASHER, bearing thrust

1шт.

21

473659C1

NUT

bearing nut lock

1шт.

22

127710

NUT

bearing lock

1шт.

23

109119R91

SEAL

main drive gear oil

1шт.

24

671014R1

SCREW, 5/16-18 x 2-1/8 hex-hd cap

6шт.

25

671009R1

RETAINER, main drive gear

1шт.

26

671011R1

SHIM

main drive gear bearing retainer

1шт.

27

NOT SERVICED SEPARATELY

1шт.

28

NOT SERVICED SEPARATELY

1шт.

29

NOT SERVICED SEPARATELY

1шт.

30

NOT SERVICED SEPARATELY

1шт.

31

671010R1

GASKET

main drive gear bearing retainer

2шт.

32

671013R1

CARRIER, tapered roller bearing

1шт.

33

671008R1

GEAR, main drive

1шт.

34

94807R1

SCREW

STUD, case

4шт.

35

59579R1

BEARING, ROLLER

16шт.

36

243321R1

PLUG

3/4-14 auto square head drain and filler magnetic

2шт.

37

668891R21

CASE W/STUDS AND DOWELS, transmission

1шт.

38

27082H

PLATE, idler and countershaft lock

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, 3/8 external lock

1шт.

39

71860R1

DRIVE, ANGLE

COUNTERSHAFT

1шт.

40

ST532

BEARING ASSY

main drive shaft

1шт.

41

77945R1

RING

main shaft bearing snap

1шт.

42

668067R1

GASKET

main shaft bearing retainer

1шт.

43

317627R1

SPACER, speedometer drive gear

1шт.

44

666271R1

RETAINER, main shaft bearing

1шт.

NLS

NO LONGER SERVICED

1шт.

179846

LEVER

1шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, 3/8 external tooth lock

5шт.

45

382868C91

PACKING RING

SEAL, main shaft oil

1шт.

46

666270R1

NUT, main shaft

1шт.

103348

WASHER,1" x 2" x .134"

1-1/16 x 2 x .108

1шт.

47

71859R1

THRUST WASHER

WASHER, countershaft thrust rear

1шт.

48

311267C1

THRUST WASHER

countershaft thrust rear

1шт.

49

59572R1

WASHER,29.64mm ID x 37.57mm OD x 4.57mm Thk

SPACER, countershaft gear bearing

6шт.

50

59574R1

ROLLER

roller

88шт.

51

95363R1

SPACER, countershaft bearing

1шт.

52

671004R1

GEAR, countershaft

1шт.

53

71857R1

THRUST WASHER

countershaft thrust front

1шт.

54

317451C11

GEAR, w/bearing and sleeve reverse idle

1шт.

55

293332C1

RING, reverse idler gear snap

2шт.

56

91091R1

WASHER

reverse idler thrust

2шт.

57

91094R1

ROLLER

roller

74шт.

58

91093R1

SCRAPER RING

SPACER, reverse idler roller

1шт.

59

91095R1

SLEEVE, reverse idler

1шт.

60

59423R1

DRIVE, ANGLE

SHAFT, reverse idler

1шт.

61

147922R1

ARM, reverse shifting

1шт.

62

147921R1

PIVOT,shifting arm

1шт.

63

103565

PLUG, DRAIN,#0 x 1 1/4", Tapered

PIN, no. 0 x 1-1/4 taper

1шт.

64

147920R1

SEAL

shifting arm pivot oil

1шт.

65

82084R1

WASHER

shifting shoe C

1шт.

66

91090R1

SHOE

shifting reverse

1шт.

67

NOT SERVICED SEPARATELY

1шт.

68

NOT SERVICED SEPARATELY

1шт.

69

NOT SERVICED SEPARATELY

1шт.

70

673167R91

NO LONGER SERVICED

BEARING PACKAGE, transmission

1шт.
