Запчасти Case IH 414 (387) - RADIATOR, RADIATOR SUPPORTS AND SCREEN (10) - ENGINE

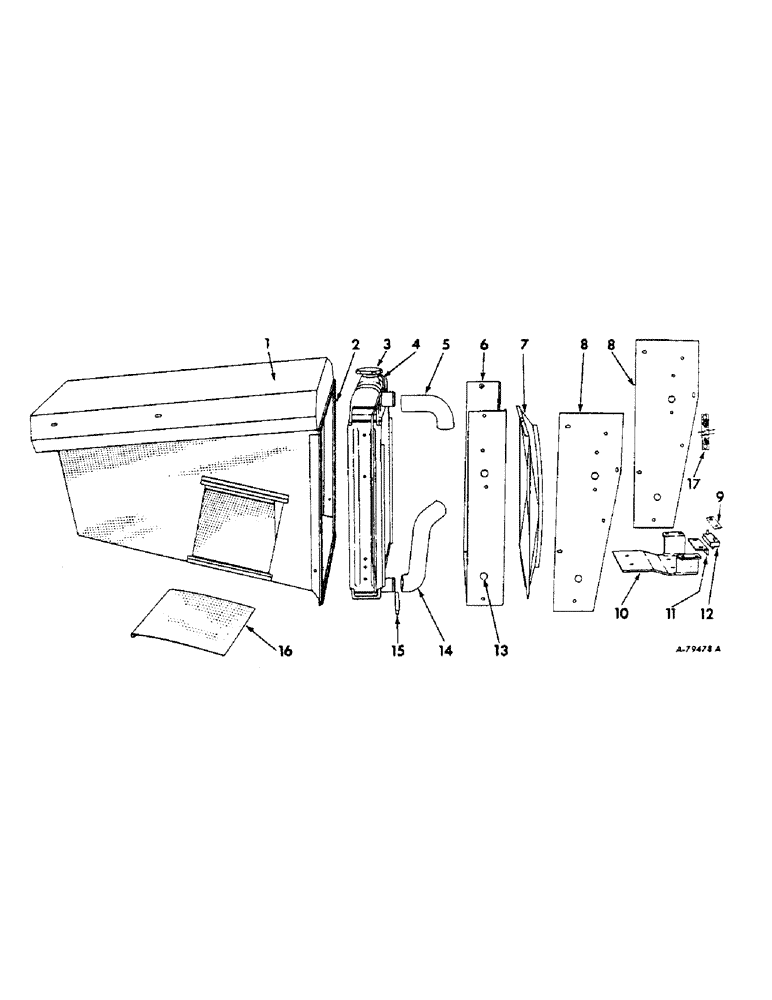

Схема запчастей Case IH 414 - (387) - RADIATOR, RADIATOR SUPPORTS AND SCREEN (10) - ENGINE
15
12
10
5
6
2
14
8
8
16
7
9
1
17
3
13
11
4

Артикул

Название

Примечание

Количество

1

666086R91

SCREEN, radiator

1шт.

1

674436R91

SCREEN, radiator, Used with increased capacity cooling

1шт.

BOLT, 5/16 x 3/4 mach

6шт.

NUT, 5/16

2шт.

WASHER, 5/16 lock

6шт.

WASHER, 11/32 x 3/4 x 16 ga

4шт.

2

666098R1

STRIP, radiator screen sealer

4шт.

3

361705R91

COVER

CAP, radiator pressure, Used only w/radiator, 370415R92

1шт.

3

393229R91

CAP

radiator pressure, Used with radiators, 370415R93, 370415R94, 395508R1 and 401634R91

1шт.

4

370415R94

RADIATOR ASSY, less cap, Order radiator, 395508R1 and hose, 395509R1, all 414 & 420 Cotton Pickers, 416 up to serial no. CH1155L, 422 up to serial no. CH1966L

1шт.

4

395508R1

RADIATOR ASSY, less cap, 416-CH1156L and above, 422-CH1967L and above

1шт.

4

401634R91

RADIATOR ASSY, less cap, Used with increased capacity cooling

1шт.

444578

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF, Brass

PLUG, 1/4-18 auto. sq-hd pipe

1шт.

17424R1

BOLT,Hex, 1/4" - 20 x 1"

1/4-20 x 1 hex-hd mach

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

5

369346R1

RADIATOR HOSE,2.00" ID x 6.30", SAE 20R4, Class R, Grade 1

Inlet, all 414 & 420 Cotton Pickers, 416 up to serial no. CH1155L, 422 up to seial no. CH1966L 2.00" ID x 6.30", SAE 20R4, Class R, Grade 1

1шт.

5

395509R1

HOSE

radiator inlet, 416-CH1156L and above, 422-CH1967L and above

1шт.

6

666056R91

SUPPORT, radiator, welded assy

1шт.

BOLT, 1/2 x 1 mach

2шт.

NUT, 1/2 hex.

2шт.

WASHER, 1/2 lock

2шт.

7

315726R2

HOUSING, fan

1шт.

7

401795R1

HOUSING, fan, Used with increased capacity cooling

1шт.

SCREW, 1/4 x 5/8 hex-hd cap

4шт.

NUT, 1/4 hex.

4шт.

WASHER, 1/4 lock

4шт.

8

666099R2

SIDE, radiator support

2шт.

8

674446R1

SIDE, radiator support, Used with increased capacity cooling

2шт.

BOLT, 5/16 x 3/4 mach

3шт.

WASHER, 5/16 lock

3шт.

9

674521R1

SPACER, engine, Used with increased capacity cooling

1шт.

BOLT, 1/2 x 1-1/4 C-Z mach

2шт.

10

666052R91

SUPPORT, rear engine, welded assy

1шт.

10

674449R1

SUPPORT, rear engine, welded assy, Used with increased capacity cooling

1шт.

NUT, 5/8 hex.

2шт.

SCREW, 5/8 x 1-1/4 hex-hd cap

2шт.

SCREW, 5/8 x 1-3/4 hex-hd cap

2шт.

WASHER, 5/8 reg lock

4шт.

11

662274R2

ANGLE, engine and radiator support

1шт.

BOLT, 1/2 x 1-1/4 mach

2шт.

NUT, 1/2 hex.

2шт.

WASHER, 1/2 lock

2шт.

WASHER, 11/32 x 1 x 16 ga

2шт.

WASHER, 17/32 x 1 x 16 ga

4шт.

12

72085R92

INSULATOR

engine mount

1шт.

NUT, 5/16NF

4шт.

WASHER, 5/16 lock

4шт.

13

369932R1

INSULATOR

PLATE, radiator mounting

4шт.

SCREW, no. 8-32 x 1/4 hex-hd self-tapping

16шт.

14

316140R1

RADIATOR HOSE,2.00" ID x 10.30", SAE 20R4

Outlet 2.00" ID x 10.30", SAE 20R4

1шт.

14

401794R1

HOSE

radiator outlet, Used with increased capacity cooling

1шт.

15

2740889R91

CLAMP, radiator hose

4шт.

16

661340R1

DOOR, radiator screen inspection

2шт.

16

674445R1

DOOR, radiator screen inspection, Used with increased capacity cooling

2шт.

17

200462C1

STRAP, engine ground

1шт.

401699R91

PACKAGE, heavy duty radiator, Consists of

1шт.

401796R1

FAN

1шт.

401793R1

HOSE

1шт.

401794R1

HOSE

1шт.

401795R1

HOUSING

1шт.

201352C1

PAD

1шт.

401634R91

RADIATOR

1шт.

Выбрано товаров: 62
