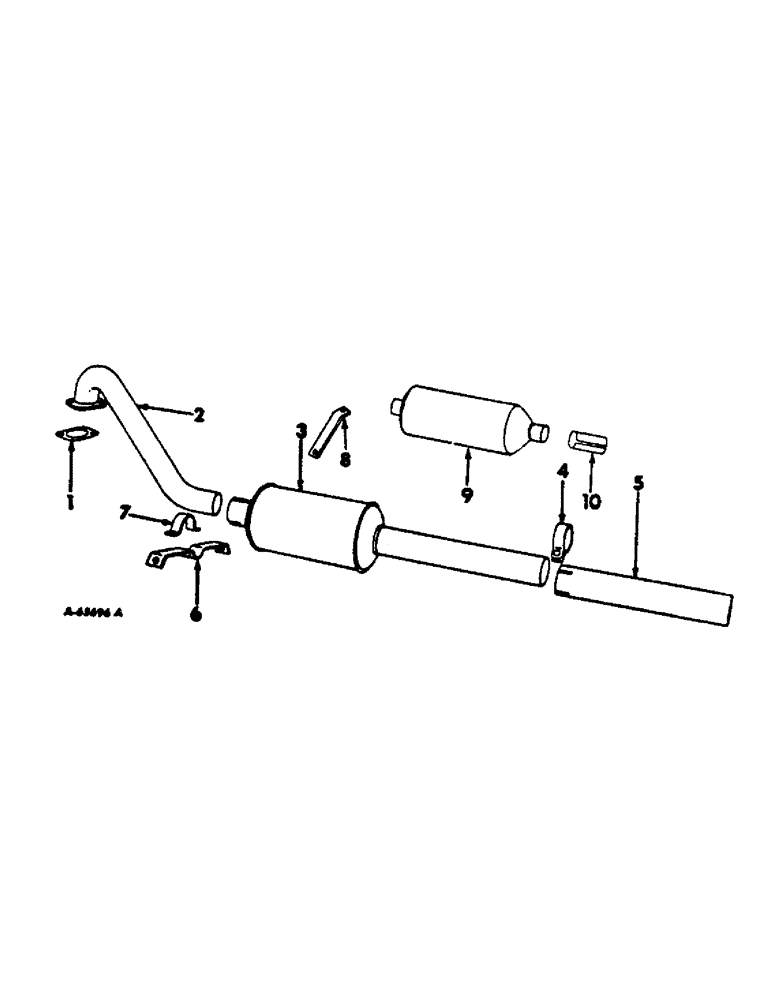

Запчасти Case IH 414 (385) - EXHAUST PIPE AND MUFFLER (10) - ENGINE

1

369282R2

GASKET

exhaust pipe elbow

1шт.

2

666071R91

PIPE ASSY, exhaust, welded assy

1шт.

SCREW, 3/8 x 1 cap

2шт.

WASHER, 3/8 lock

2шт.

3

370773R92

MUFFLER

exhaust

1шт.

4

350602R1

CLAMP

exhaust pipe

1шт.

BOLT, 3/8 x 1-1/2 mach

1шт.

NUT, 3/8 hex.

1шт.

WASHER, 3/8 lock

1шт.

5

666075R1

PIPE, exhaust extension

1шт.

6

666074R1

SUPPORT, exhaust pipe

1шт.

BOLT, 5/16 x 3/4 mach

1шт.

BOLT W/NUT, 3/8 x 3/4 mach

1шт.

WASHER, 5/16 reg lock

1шт.

WASHER, 3/8 reg lock

1шт.

7

665479R1

STRAP, exhaust pipe support

1шт.

BOLT W/NUT, 3/8 x 1 mach

2шт.

WASHER, 3/8 lock

2шт.

8

204228C1

STRAP, exhaust extenison

1шт.

SCREW W/NUT, 3/8 x 1-3/4 cap

1шт.

WASHER, 3/8 lock

1шт.

9

204229C1

ARRESTER, spark, special

1шт.

10

204230C1

BUSHING, special

1шт.
