Запчасти Case IH 414 (384) - AIR CLEANER, 416, CH1122L AND ABOVE, 422, CH1968L AND ABOVE (10) - ENGINE

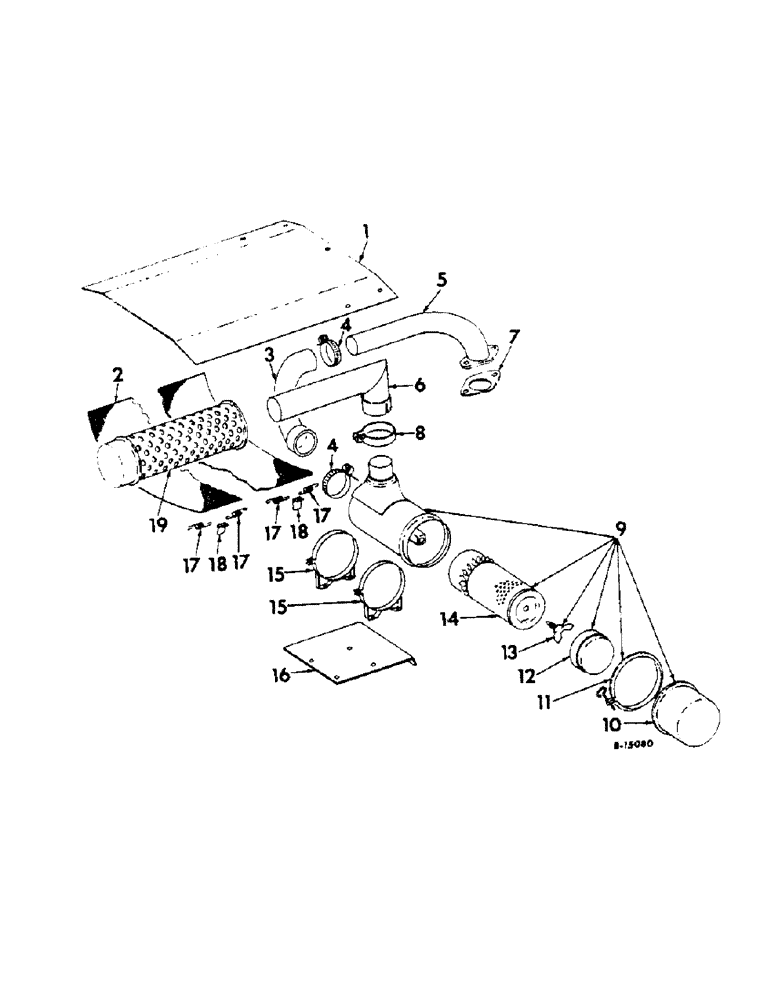

Схема запчастей Case IH 414 - (384) - AIR CLEANER, 416, CH1122L AND ABOVE, 422, CH1968L AND ABOVE (10) - ENGINE
19
14
6
10
11
8
15
3
17
2
12
18
16
5
7
4
1
9
17
17
13
18
17
15
4

Артикул

Название

Примечание

Количество

1

673176R1

HOOD, pre-screener

1шт.

2

397391R91

SCREEN

ASSY

1шт.

3

672548R1

HOSE, air cleaner outlet

1шт.

4

274088R91

HOSE CLAMP,2.25/3.13 Type F Worm

CLAMP, air cleaner pipe hose

2шт.

5

665462R91

PIPE, air intake

1шт.

179858

SUPPORT

SCREW, 7/16-14 x 1 hex-hd cap

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

6

673173R1

PIPE ASSY, pre-screener

1шт.

7

367497R2

GASKET, air intake pipe

1шт.

8

384402R1

FASTENER

CLAMP, pre-screener pipe

1шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

9

388025R92

CLEANER ASSY, dry type air

1шт.

10

389266R91

CUP ASSY

1шт.

11

59960D

CLAMP ASSY, oil cup retaining

1шт.

12

389265R1

CUP ASSY.

SKIRT, baffle

1шт.

13

389264R91

BOLT (SPREADER),Wing, 3/8" - 16, W/ Wshr, Gasket

BOLT ASSY

1шт.

14

389263R92

FILTER, ELEMENT

ELEMENT ASSY

1шт.

15

347672R91

BAND

ASSY, air cleaner

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

16

673177R1

BRACKET, air cleaner

1шт.

17

353639R1

VALVE SPRING

SPRING, screen lock tension

4шт.

18

353758R1

CLIP

screen lock spring

2шт.

19

395775R91

PRE-SCREENER W/SCREEN, springs and clips

1шт.

Выбрано товаров: 27
