Запчасти Case IH 414 (383) - AIR CLEANER, 416, CH501H THROUGH 1121L, 422, CH501H THROUGH 1967L (10) - ENGINE

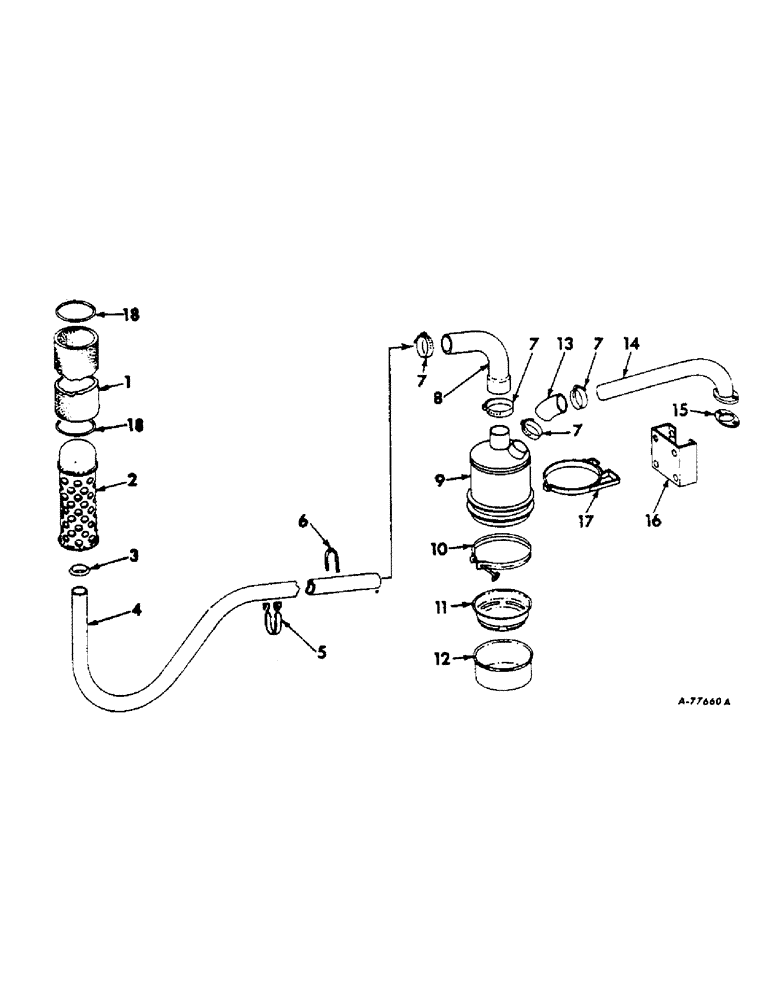

Схема запчастей Case IH 414 - (383) - AIR CLEANER, 416, CH501H THROUGH 1121L, 422, CH501H THROUGH 1967L (10) - ENGINE
16
12
5
15
17
7
18
18
11
14
13
2
9
7
3
4
1
7
10
6
8
7

Артикул

Название

Примечание

Количество

1

665528R21

CLEANER

FILTER W/O-RING, precleaner

1шт.

2

356405R91

PRE-SCREENER

1шт.

3

665661R1

SEAL, precleaner

1шт.

4

669521R1

PIPE, precleaner

1шт.

5

669524R1

STRAP, precleaner

1шт.

BOLT W/NUT, 3/8 x 3/4 mach

2шт.

WASHER, 3/8 lock

2шт.

6

2815NA

BOLT, pipe clamp U

1шт.

NUT, 3/8

2шт.

WASHER, 3/8 lock

2шт.

7

274088R91

HOSE CLAMP,2.25/3.13 Type F Worm

CLAMP, precleaner hose

6шт.

8

669523R1

HOSE, precleaner

1шт.

9

371182R91

CLEANER ASSY, air

1шт.

10

59960D

CLAMP ASSY, oil cup retaining

1шт.

11

372493R1

CUP, oil inner

1шт.

12

372494R1

CUP, oil

1шт.

13

3702371R

HOSE, air intake pipe elbow

1шт.

14

665462R91

PIPE, air intake

1шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16-14 x 1 hex-hd cap

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

15

369497R2

GASKET

air cleaner outlet elbow

1шт.

16

666085R1

BRACKET, air cleaner spacer

1шт.

BOLT, 3/8 x 3/4 mach

4шт.

NUT, 3/8 hex.

4шт.

WASHER, 3/8 lock

4шт.

17

260790R91

BAND, air cleaner mounting

2шт.

NUT, 3/8-16 hex.

4шт.

105605

NUT

5/16 sq

2шт.

117295

SCREW, 5/16 x 1-1/4 fil-hd mach

2шт.

SCREW, 3/8-16 x 1/2 hex-hd cap

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

18

380595R1

O-RING

5-5/8 x 5-7/8 x 1/8

2шт.

Выбрано товаров: 32
