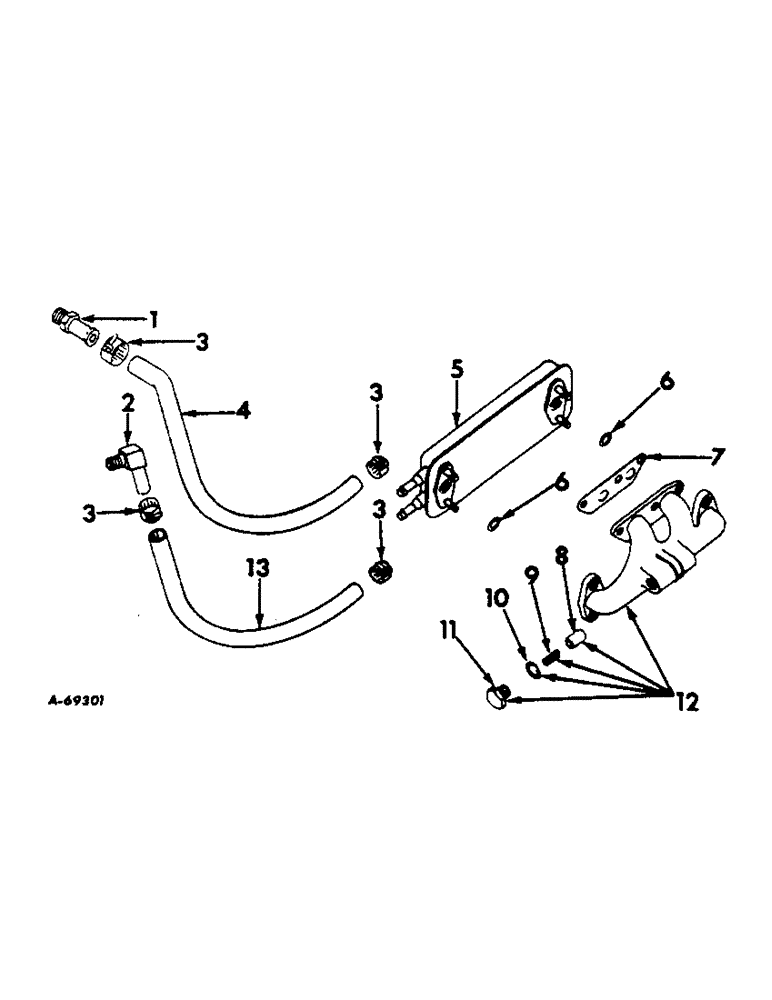

Запчасти Case IH 414 (364) - ENGINE OIL COOLER (10) - ENGINE

1

320182R1

CONNECTOR, water inlet hose

1шт.

2

320275R1

ELBOW UNION

ELBOW, hose, 5/8 x 12NP x 90 deg

1шт.

3

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, water hose

4шт.

4

321880R1

HOSE

engine oil cooler water inlet

1шт.

5

279212R91

COOLER ASSY.

COOLER, engine oil, optional w/338905R91

1шт.

5

3389059R1

COOLER, engine oil, optional w/279212R91

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

3/4 x 15/16 x 3/32, oil cooler to manifold

2шт.

7

349038R1

GASKET

oil cooler manifold

1шт.

8

251400R1

VALVE

oil cooler relief

1шт.

9

279163R1

SPRING

oil cooler relief valve

1шт.

10

251403R1

GASKET

relief valve plug

1шт.

11

251402R1

PLUG

relief valve

1шт.

12

279160R11

MANIFOLD ASSY, engine oil cooler, Consists of

1шт.

251403R1

GASKET

1шт.

NSS

NOT SOLD SEPARAT

MANIFOLD

1шт.

251402R1

PLUG

1шт.

279163R1

SPRING

1шт.

251400R1

VALVE

1шт.

444574

PLUG,Sq Hd, 1/4"-18 NPTF

1/4 sq-hd pipe

2шт.

13

312503R1

PIPE CLAMP

HOSE, engine oil cooler water outlet

1шт.
