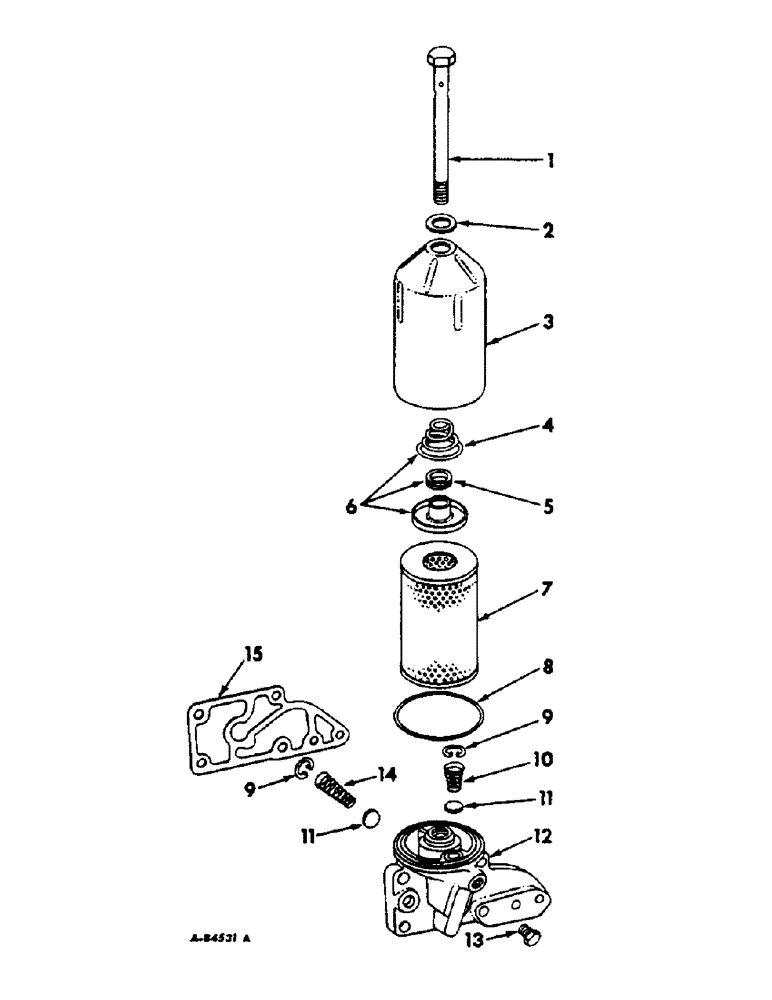

Запчасти Case IH 414 (360) - LUBRICATING OIL FILTER, CARTRIDGE TYPE, D-282 WITH SERIAL NUMBER 70876 AND ABOVE (10) - ENGINE

601786C91

OIL RESERVOIR

FILTER ASSY, oil, less ref. 15

1шт.

1

384530R11

TUBE ASSY, oil filter center 7.4" Length

1шт.

2

384532R1

GASKET

center tube

1шт.

3

384529R1

CASE

oil filter

1шт.

4

384536R1

SPRING, element hold-down

1шт.

5

384535R1

WASHER

GROMMET, element retaining washer

1шт.

6

384533R91

RETAINER

ASSY, element

1шт.

7

279994R91

ELEMENT

oil filter

1шт.

8

304854R1

RING

GASKET, oil filter case

1шт.

9

303322R1

SNAP RING,1.00", Int, #100

2шт.

10

384525R1

SPRING

check valve

1шт.

11

384528R2

VALVE

oil filter base

2шт.

12

601789C11

BASE

W/PLUG, 445673, oil filter

1шт.

138225

BEARING

SCREW, 5/16-18 x 1-3/4 soc-hd cap

2шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, 7/16-14 x 1-1/4 hex-hd cap

3шт.

179866

BOLT,Hex, 7/16" - 14 x 2", Gr 5

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

13

444618

PLUG

1/4-18 auto hex-hd drain

1шт.

14

384527R1

SPRING

element by-pass

1шт.

15

601790C1

GASKET

oil filter base

1шт.
