Запчасти Case IH 414 (359) - LUBRICATING OIL FILTER, CARTRIDGE TYPE, D-282 WITH SERIAL NUMBER 70875 AND BELOW (10) - ENGINE

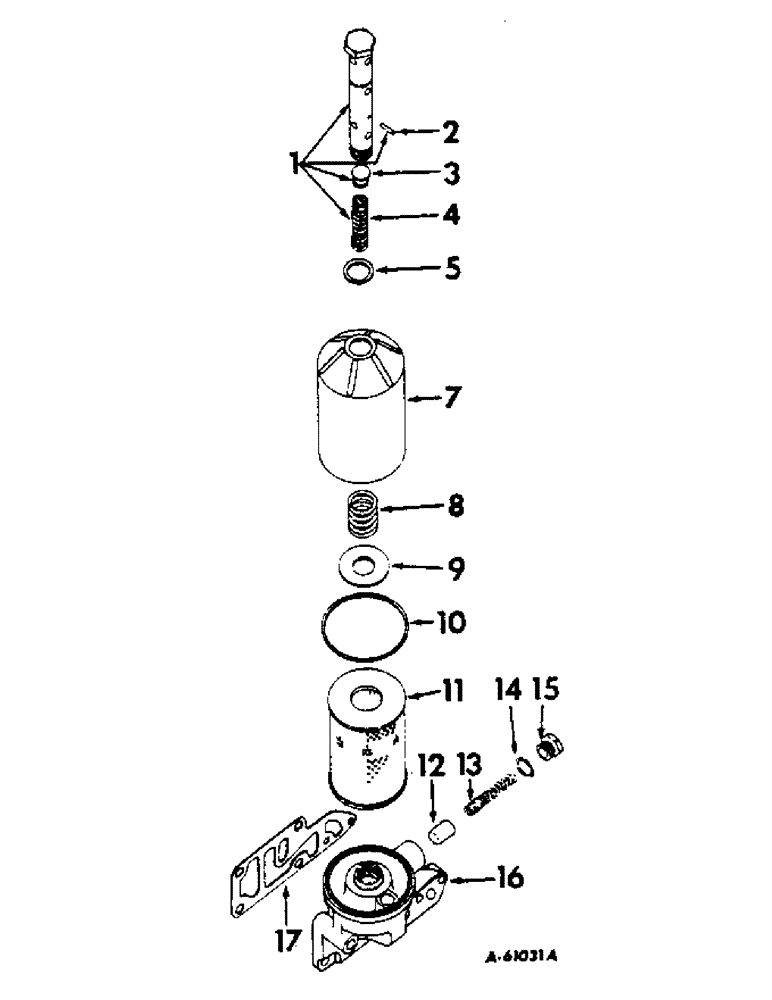

Схема запчастей Case IH 414 - (359) - LUBRICATING OIL FILTER, CARTRIDGE TYPE, D-282 WITH SERIAL NUMBER 70875 AND BELOW (10) - ENGINE
10
3
2
16
11
14
1
7
15
12
8
4
13
9
5
17

Артикул

Название

Примечание

Количество

304003R91

FILTER CARTRIDGE

FILTER ASSY, oil

1шт.

1

304005R91

FILTER CARTRIDGE

TUBE W/PIN, 17141R1, valve, 304008R1 and spring, 304009R1, center

1шт.

2

17141R1

LOCK PIN,5/32" x 1", Slotted

Pin, , by-pass & spring retainer 5/32" x 1", Slotted

1шт.

103364

PIN

1/16 x 1-1/4 cot.

1шт.

3

304008R1

VALVE

by-pass

1шт.

4

304009R1

VALVE SPRING

SPRING, by-pass valve

1шт.

5

304012R1

GASKET

center tube

1шт.

6

NOT USED IN THIS APPLICATION

1шт.

7

303998R11

CASE ASSY, lubricating oil filter, Includes ref. nos. 1 through 6, 8 and 9

1шт.

8

304011R1

SPRING

element hold down

1шт.

9

304010R1

WASHER

element retaining

1шт.

10

304854R1

RING

GASKET, oil filter case

1шт.

11

323827R91

ENGINE OIL FILTER

ELEMENT, lubricating oil filter w/gasket 304854R1

1шт.

12

61261VA

LOCK VALVE

VALVE, relief

1шт.

13

49946HA

VALVE SPRING

SPRING, relief valve

1шт.

14

3405H

GASKET

relief valve plug

1шт.

15

61263VA

PLUG

relief valve

1шт.

16

320285R11

BASE

W/PLUG ASSY 445668, lubricating oil filter

1шт.

445686

PLUG

3/8 sq-hd pipe

1шт.

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1/4 hex-hd pipe, drain

1шт.

179858

SUPPORT

SCREW, 7/16-18 x 1 hex-hd cap

1шт.

179870

BOLT,Hex, 7/16" - 14 x 3", Gr 5

SCREW, 7/16 x 18 x 3 hex-hd cap

2шт.

179866

BOLT,Hex, 7/16" - 14 x 2", Gr 5

1шт.

138225

BEARING

SCREW, 5/16-18 x 1-3/4 hex-soc-hd cap

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

17

349039R1

GASKET

lubricating oil filter base

1шт.

Выбрано товаров: 26
