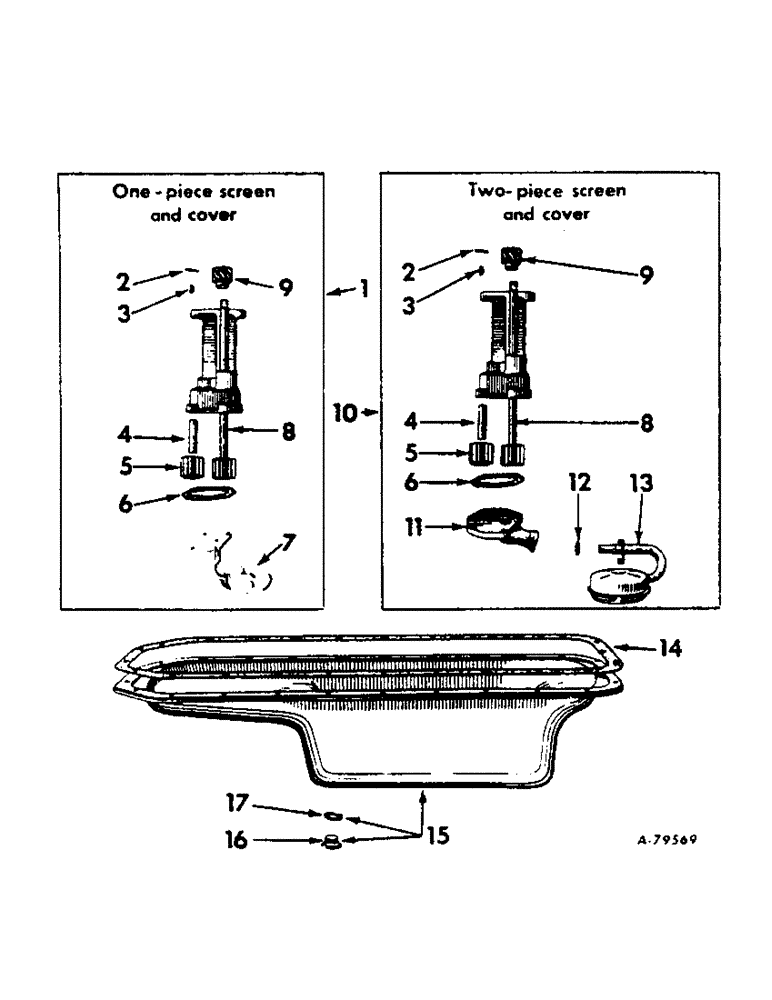

Запчасти Case IH 414 (358) - CRANKCASE OIL PAN AND OIL PUMP (10) - ENGINE

1

379138R91

PUMP, ENGINE OIL

PUMP ASSEMBLY, oil, Order ref nos 10, 12 and 13

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

112011

PIN,1/8" x 7/8"

PIN, 1/8 x 7/8 sq end straight, optional with 877422R1

1шт.

2

877422R1

PIN, 1/8 x 7/8 sq end straight, optional with 112011

1шт.

3

103905

KEY

1/8 x 5/8 Woodruff no. 5

1шт.

4

35647H

SHAFT

SHAFT, idler gear

1шт.

5

227713R1

GEAR WHEEL

GEAR, pump body driven

1шт.

6

69607R1

GASKET

GASKET, oil pump cover

1шт.

7

379139R91

COVER

COVER & SCREEN ASSY, oil pump

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-18 x 7/8", G5, Full Thd

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

8

230409R91

GEAR

SHAFT & GEAR ASSY, oil pump drive

1шт.

9

69608R3

PINION

GEAR, oil pump drive

1шт.

10

230421R91

PUMP, HYDRAULIC

PUMP ASSY, oil, less screen

1шт.

10

735245C91

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

10

1928211C1

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

169679R1

SPARE PART COVER, oil pump body

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

12

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

O-RING, 9/16 x 3/4 x 3/32, oil pump screen

1шт.

13

308367R91

FILTER CARTRIDGE

SCREEN ASSY, oil pump

1шт.

137195

PIN, 1/8 x 1-1/4 phosphate coated cot.

1шт.

14

369984R1

GASKET

GASKET, crankcase pan

1шт.

15

381137R91

PAN

PAN ASSY, crankcase oil

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

25шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

25шт.

16

688067C1

PLUG

PLUG, crankcase oil pan drain, Replaces 445096

1шт.

17

3405H

GASKET

GASKET, oil pan drain plug

1шт.
