Запчасти Case IH 414 (356[1]) - ELECTRIC FUEL PUMP, 414, CH813F TO CH1568G, 420, CH1372F TO CH2820G, 416, CH501H AND ABOVE (10) - ENGINE

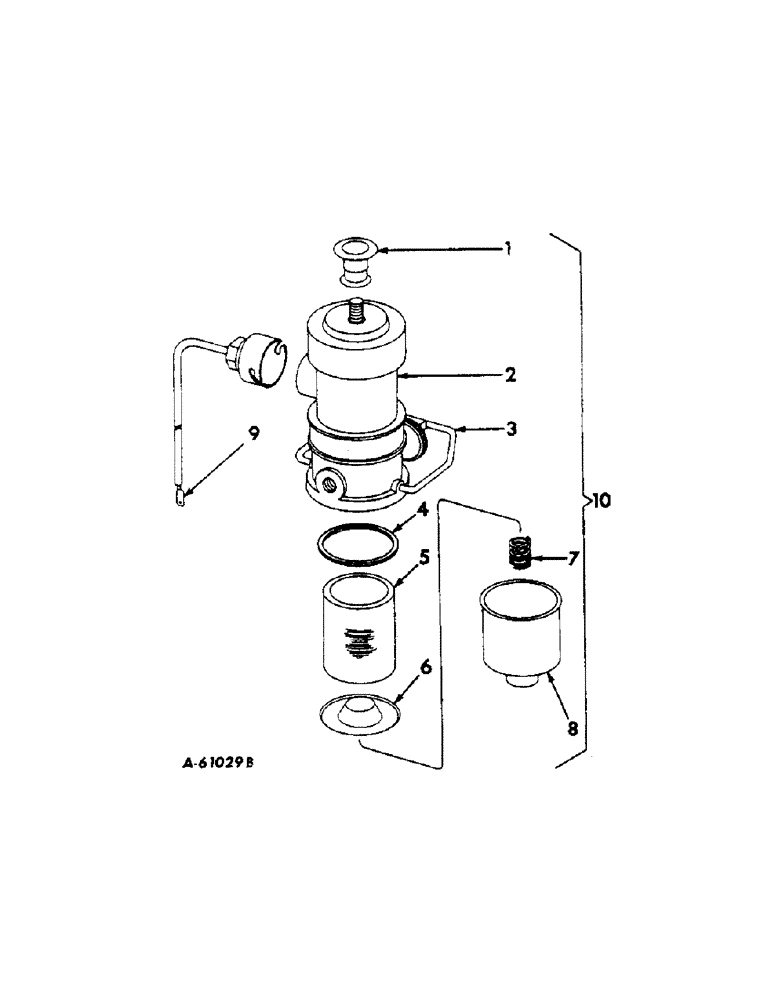

Схема запчастей Case IH 414 - (356[1]) - ELECTRIC FUEL PUMP, 414, CH813F TO CH1568G, 420, CH1372F TO CH2820G, 416, CH501H AND ABOVE (10) - ENGINE
10
1
4
8
9
2
7
3
6
5

Артикул

Название

Примечание

Количество

1

313602R1

COVER, rubber pulse chamber

1шт.

2

PUMP ASSY, Order pump assembly, 306274R91, ref no. 10

1шт.

124818

JAM NUT,Hex, 1/4" - 20, Gr 5

1шт.

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

3

313603R91

BAIL ASSY, pump

1шт.

4

313604R1

GASKET

fuel pump

1шт.

5

313606R1

FILTER CARTRIDGE

FILTER, fuel bowl

1шт.

6

313607R1

BASE

fuel bowl

1шт.

7

313608R1

SPRING, fuel filter base

1шт.

8

313605R1

BOWL, fuel filter pump

1шт.

9

306396R1

CONNECTOR, terminal

1шт.

10

306274R91

PUMP

ASSY, electric, 12 volt

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Выбрано товаров: 15
