Запчасти Case IH 414 (355) - WATER TRAP (10) - ENGINE

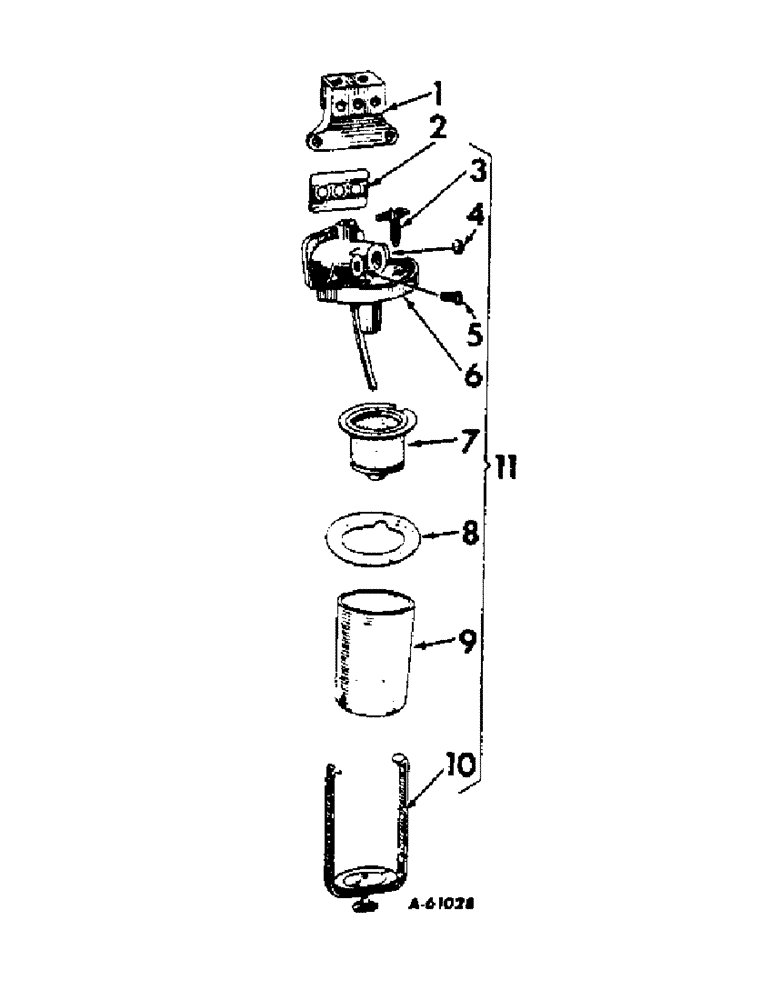

Схема запчастей Case IH 414 - (355) - WATER TRAP (10) - ENGINE
11
5
6
2
1
9
10
3
8
4
7

Артикул

Название

Примечание

Количество

1

9311D

BRACKET, water trap

1шт.

NLS

NO LONGER SERVICED

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

51527DC

GASKET

water trap

1шт.

3

279173R1

CAPSCREW,3/8" x 1 5/32"

SCREW, water trap drain

1шт.

4

24805D

PLUG

3/8 BRS expansion, type no. 1

1шт.

5

60871DA

SCREW, water trap vent

1шт.

6

251380R91

TOP

W/DRAIN PIPE AND PLUG, 24805D water trap

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-20 x 3 hex-hd cap

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

7

251348R91

SCREEN

water trap

1шт.

8

260708R2

GASKET

water trap bowl

1шт.

9

60877D

BOWL

GLASS, water trap

1шт.

10

60878DX

BALL

BAIL W/THUMB SCREW, water trap

1шт.

11

251355R91

TRAP

ASSY, water, Consists of

1шт.

60878DX

BALL

BAIL

1шт.

60877D

BOWL

1шт.

260708R2

GASKET

1шт.

251348R91

SCREEN

1шт.

60871DA

SCREW

1шт.

279173R1

CAPSCREW,3/8" x 1 5/32"

SCREW

1шт.

251380R91

TOP

1шт.

Выбрано товаров: 23
