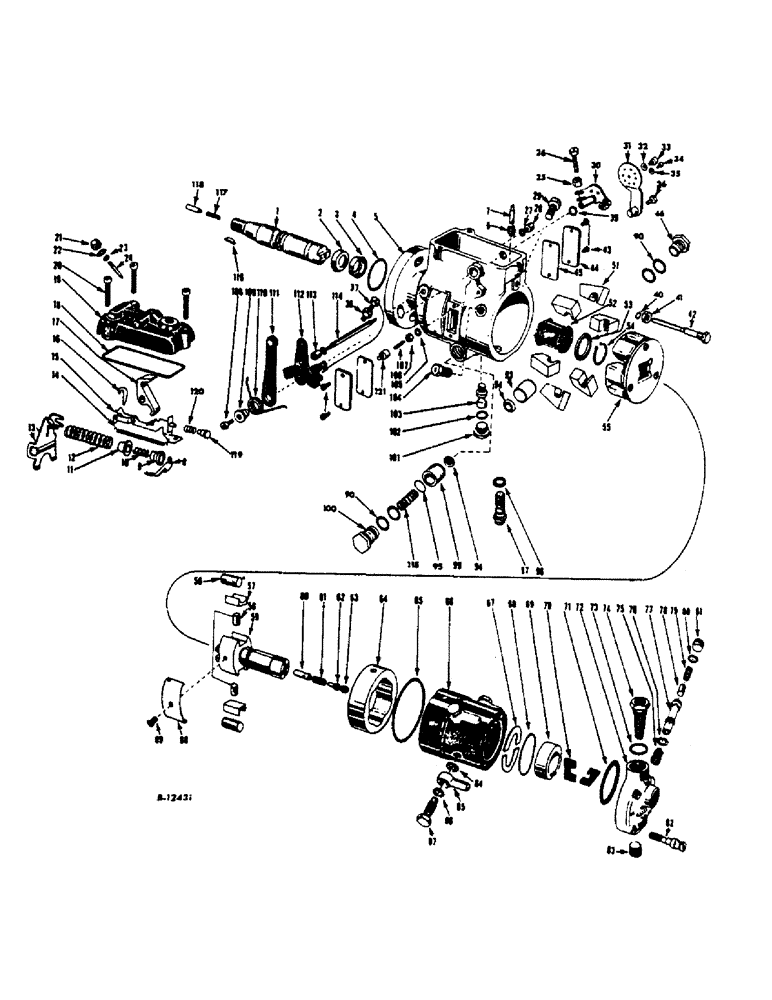

Запчасти Case IH 414 (350) - FUEL INJECTION PUMP, ROOSA-MASTER (10) - ENGINE

321303R91

PUMP ASSY, fuel injection, Order pump assy, 613931C91

1шт.

1

304715R1

SHAFT

drive

1шт.

2

313288R1

SEAL

OIL SEAL, drive shaft

1шт.

3

313288R1

SEAL

OIL SEAL, drive shaft

1шт.

4

304720R1

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

pilot tube

1шт.

5

702858C91

HOUSING

W/TWO BUSHING, 619449C1, Replaces 319667R91 by also ordering washer, 324791R1

1шт.

619449C1

BUSHING

housing

2шт.

6

304746R1

VALVE SPRING

SPRING, fuel metering valve

1шт.

7

313673R1

LOCK VALVE

VALVE, fuel metering

1шт.

313286R1

WASHER

SHIM, metering valve

1шт.

8

321315R91

ARM, fuel metering valve

1шт.

9

368015R1

RETAINER, governor idling spring

1шт.

10

304810R1

SPRING

governor idling

1шт.

11

367998R1

GUIDE

governor idling spring

1шт.

12

367999R1

VALVE SPRING

SPRING, governor control

1шт.

13

321367R1

ARM

governor

1шт.

14

367995R1

VALVE SPRING

SPRING, governor linkage

1шт.

15

702350C1

LINKAGE

HOOK, governor linkage, Replaces 313241R91

1шт.

16

368023R1

CAM

fuel shut-off

1шт.

17

304794R1

LEVER

throttle shaft

1шт.

18

368012R1

SEAL

governor control cover

1шт.

19

304744R1

COVER ASSY

COVER, governor control

1шт.

20

319674R1

SCREW

governor control cover hold down

3шт.

319676R1

WASHER

COVER HOLD DOWN SCREW WASHER

3шт.

138534

LOCK WASHER,Int Tooth, #10

NO. 10 INTERNAL TOOTH LOCK WASHER

3шт.

21

368009R1

NUT

idle adjusting screw lock, cover

1шт.

22

304728R1

WASHER

idle adjusting screw cover

1шт.

23

304729R1

SEAL

idle adjusting screw oil, cover

1шт.

24

304788R1

SET SCREW

idle adjusting, cover

1шт.

25

307818R1

LOCK NUT

NUT, shut-off valve adjusting screw

2шт.

26

368002R1

ADJUSTMENT SCREW,Drilled Sl Hex, #10 - 32 x 1.406"

shut-off lever adjusting

2шт.

27

304721R1

SEAL

governor arm pivot shaft retaining nut

1шт.

28

368018R1

NUT

governor arm pivot shaft retaining

2шт.

29

368810R1

SCREW, hydraulic head locking

2шт.

30

702394C1

SHAFT

AND LEVER ASSY, shut-off

1шт.

31

304748R91

ARM

ASSY, adjustable shut-off

1шт.

32

115545

LOCK WASHER,Int Tooth, #10

WASHER, no. 10 internal-tooth lock, shut-off lever positioning

1шт.

33

217920

COVER

SCREW. 10-32 x 3/8 hex-soc-hd, shut-off lever retaining

1шт.

34

368026R1

SCREW, shut-off lever positioning

1шт.

35

115544

WASHER,Int Tooth, #8

no. 8 internal-tooth lock, shut-off lever positioning screw

1шт.

36

450643

SCREW,Hex Hd, #8-32 x 3/8"

no. 8 x 3/8 hex-hd mach, shut-off arm fitting

1шт.

37

304789R1

ADJUSTMENT SCREW

throttle high idle adjustment

1шт.

38

307818R1

LOCK NUT

NUT, throttle high idle adjusting screw lock

1шт.

39

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1/4 x 3/8 x 1/16, throttle shaft torque screw seal unit

2шт.

40

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1/4 x 3/8 x 1/16, guide stud

1шт.

41

304742R1

NUT

governor idling spring guide stud

1шт.

42

304793R1

STUD

governor idling spring guide

1шт.

43

134213

SCREW,Sl Oval Hd, #8 - 32 x 5/16"

8-32 x 5/16 slt-ov-hd mach, Used with timing line cover

4шт.

44

304740R1

COVER ASSY

COVER, timing line

2шт.

45

367979R1

GASKET

timing line cover

2шт.

46

627938C1

PLUG

piston hole

1шт.

47

NOT USED IN THIS APPLICATION

1шт.

48

NOT USED IN THIS APPLICATION

1шт.

49

NOT USED IN THIS APPLICATION

1шт.

50

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

O RING, 1/4 x 3/8 x 1/16, load advance ball check stop screw

2шт.

51

368343R1

WEIGHT

governor

6шт.

52

321369R1

ARM

SLEEVE, governor thrust

1шт.

53

368342R1

THRUST WASHER

governor thrust

1шт.

54

368345R1

SNAP RING

RING, governor weight retainer retaining

1шт.

55

627946C91

RETAINER

W/RING 615768C1, governor weight

1шт.

615768C1

CLIP

RING, flexible retaining

1шт.

56

368805R1

ROLLER

plunger actuating cam

2шт.

57

368804R1

SHOE (ASSY)

SHOE, plunger actuating cam

2шт.

58

PLUNGER, rotor, Not serviced separately, Order head and rotor assy, 304719R91

1шт.

59

ROTOR, Not serviced separately, Order head and rotor assy, 304719R91

1шт.

60

606141C1

LOCK VALVE

VALVE, distributor rotor delivery, standard, also order spring, 606144C1 and stop, 606145C1

1шт.

60

606142C1

LOCK VALVE

VALVE, distributor rotor delivery, oversize

1шт.

61

606144C1

VALVE SPRING

SPRING, distributor rotor delivery valve, also order valve, 606141C1 and stop, 606145C1

1шт.

62

606145C1

LOCK ASSY

STOP, distributor rotor delivery valve, also order spring, 606144C1 and valve, 606141C1

1шт.

63

317901R1

CAPSCREW,3/25" x 7/32"

SCREW, distributor rotor delivery valve retaining

1шт.

64

304796R1

RING, cam

1шт.

65

368337R1

SEALING RING

SEAL, hydraulic head

1шт.

66

304719R91

ROTOR

HEAD AND ROTOR ASSY, hydraulic, Composed of

1шт.

NSS

NOT SOLD SEPARAT

HEAD

1шт.

NSS

NOT SOLD SEPARAT

PLUNGER

2шт.

304800R1

WASHER

RETAINER

2шт.

304801R1

RING

1шт.

NSS

NOT SOLD SEPARAT

ROTOR

1шт.

317901R1

CAPSCREW,3/25" x 7/32"

SCREW

1шт.

317902R1

SCREW

1шт.

606144C1

VALVE SPRING

SPRING

1шт.

606145C1

LOCK ASSY

STOP

1шт.

606141C1

LOCK VALVE

VALVE

1шт.

67

304800R1

WASHER

RETAINER, distributor rotor

2шт.

68

304801R1

RING

distributor rotor retainer

1шт.

69

304745R1

GUIDE

LINER, transfer pump

1шт.

70

367982R1

O-RING,0.154" Width

1.312 x 1.812 x .150, transfer pump

1шт.

72

367985R91

COVER ASSY

PLATE, injection pump end

1шт.

73

368030R1

RING

O-RING, .555 x .701 x .073, cap and filter fuel inlet strainer

1шт.

74

368029R91

SIEVE

STRAINER, cap and filter fuel inlet

1шт.

75

367986R1

VALVE SPRING

SPRING, fuel pressure regulating valve plunger retaining

1шт.

76

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Regulating valve plunger sleeve seal

1шт.

77

304795R1

SLEEVE, regulating valve plunger

1шт.

78

367988R1

PLUNGER

PISTON, fuel pressure regulating

1шт.

79

367989R1

VALVE SPRING

SPRING, fuel pressure regulating

1шт.

80

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Regulating valve plunger sleeve seal

1шт.

81

367990R1

PLUG, end plate sleeve retaining STD

1шт.

81

343767R1

PLUG, end plate sleeve retaining, .010

1шт.

81

305139R1

PLUG

end plate sleeve retaining, .020

1шт.

81

367991R1

PLUG, end plate sleeve retaining, .030

1шт.

81

305140R1

PLUG, end plate sleeve retaining, .040

1шт.

81

367992R1

PLUG, end plate sleeve retaining, .050

1шт.

81

305141R1

PLUG

end plate sleeve retaining, .060

1шт.

81

305142R1

PLUG, end plate sleeve retaining, .070

1шт.

81

317957R1

PLUG, end plate sleeve retaining, .080

1шт.

81

305144R1

PLUG

end plate sleeve retaining, .090

1шт.

82

304790R1

SCREW

injection pump end plate

4шт.

83

321076R1

PLUG

injection pump end plate pipe

1шт.

312593R1

SEAL

end plate pipe plug

1шт.

84

367984R1

SEALING WASHER

WASHER, fuel line connector

6шт.

85

CONNECTOR, injection pipe, furnished as part of injection pipe

1шт.

86

367984R1

SEALING WASHER

WASHER, fuel line connector

6шт.

87

367983R1

CAPSCREW,Hex, 3/8" - 24 x 1.055", Drilled

SCREW, fuel line connector

6шт.

88

304797R1

VALVE SPRING

SPRING, plunger limiting leaf

1шт.

89

368806R1

SCREW, plunger limiting leaf spring adjusting

1шт.

90

319687R1

WIPER SEAL

piston hole plug

4шт.

91

NOT USED IN THIS APPLICATION

1шт.

92

NOT USED IN THIS APPLICATION

1шт.

93

338980R1

PISTON ASSY

PISTON, power

1шт.

94

368035R1

WASHER

automatic advance slide

2шт.

95

372618R1

SHIM

advance spring, .032, .034

1шт.

96

304724R1

SEAL

SEAL, head locating screw

2шт.

97

319679R91

CAPSCREW

SCREW, head locating

1шт.

98

NOT USED IN THIS APPLICATION

1шт.

99

319686R1

PISTON ASSY

PISTON, load advance spring

1шт.

100

319684R1

PLUG, piston hole

1шт.

101

319688R1

PLUG

advance screw hole

1шт.

102

319689R1

WIPER SEAL

advance screw hole

1шт.

103

347316R1

SCREW

cam advance

1шт.

104

368810R1

SCREW, hydraulic head locking

1шт.

105

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1/4 x 3/8 x 1/16, metering valve controlling torque screw seal nut

1шт.

106

321313R1

NUT

metering controlling torqe screw lock

1шт.

107

368813R1

SCREW, metering valve controlling torque

1шт.

108

217921

SCREW, 10-32 x 5/8 hex-soc-hd cap, throttle arm spring retainer screw

1шт.

109

304743R1

RETAINER

throttle arm spring

1шт.

110

304739R1

VALVE SPRING

SPRING, throttle arm

1шт.

111

305491R91

LEVER, throttle

1шт.

112

702393C1

SHAFT

throttle

1шт.

319744R1

WASHER

throttle shaft seal

1шт.

113

368018R1

NUT

governor arm pivot shaft ret

1шт.

114

368016R1

SHAFT

governor arm pivot

1шт.

115

304799R1

SPRING, automatic advance

1шт.

116

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Drive shaft #6, 5/32" x 5/8", HT

1шт.

117

304717R1

VALVE SPRING

SPRING, drive shaft thrust button

1шт.

118

304716R1

KNOB

BUTTON, drive shaft thrust

1шт.

119

368020R1

SLEEVE CYLINDER

SLEEVE, governor linkage hook action damper, Used w/linkage hook 313241R91

1шт.

120

368019R1

SPRING, governor linkage hook action damper, Used w/linkage hook 313241R91

1шт.

121

313287R1

COVER ASSY

CAP, torque

1шт.

279673R91

WASHER

TORQUE, screen cap seal, wire

1шт.

347784R91

GASKET KIT

PACKAGE, fuel injection pump overhaul, For components see list of parts under details of service packages

1шт.
