Запчасти Case IH 2044 (9D-32) - BASKET FLOOR, 2044 COTTON PICKER (16) - BASKET

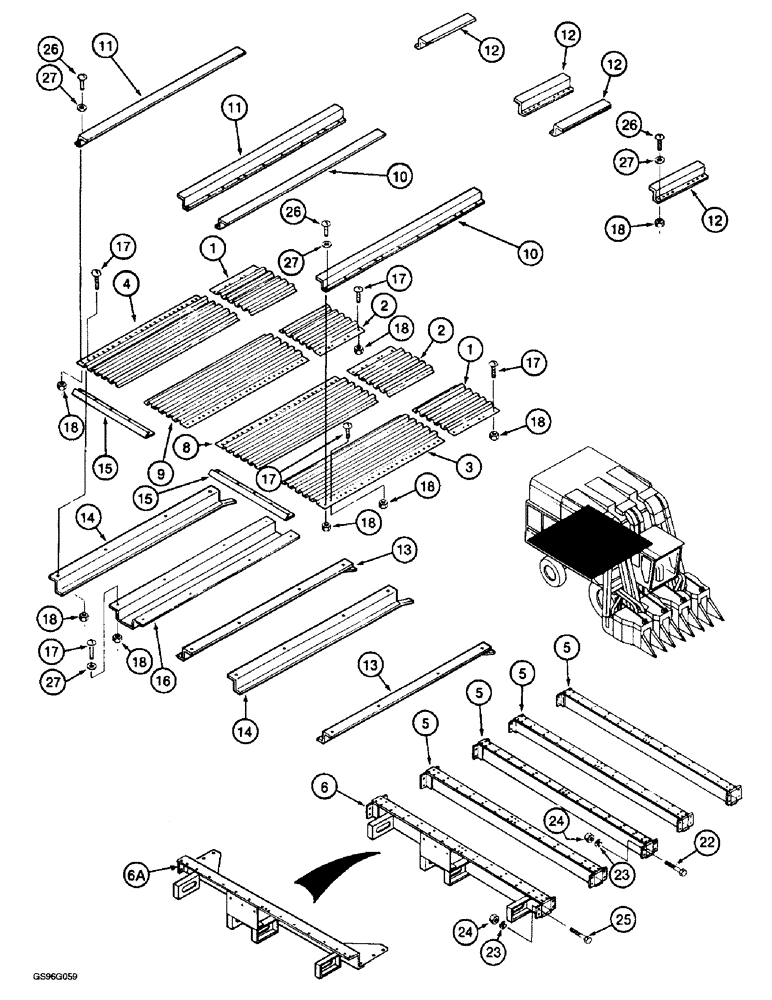

Схема запчастей Case IH 2044 - (9D-32) - BASKET FLOOR, 2044 COTTON PICKER (16) - BASKET
14
2
27
23
26
2
15
6
18
12
11
12
9
14
27
18
27
26
17
5
25
24
13
18
1
6a
24
26
10
3
18
12
22
1
18
17
5
10
5
5
4
13
27
11
16
12
15
18
23
8
18
18
17
17
17

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

BASKET ASSEMBLY - cotton picker, complete (See Note)

1шт.

1

1260260C1

PANEL

- floor

2шт.

2

1260274C1

PANEL

- floor

2шт.

3

1260269C2

PANEL

- floor

1шт.

4

1260270C2

PANEL

- floor

1шт.

5

1260275C3

SUPPORT

STRUT - floor

4шт.

6

1260290C3

SUPPORT

PANEL - floor, no longer available, order strut 248441A1, item 6A below

1шт.

6a

248441A1

SUPPORT

STRUT - floor, right-hand (Replaces strut 1260290C3)

1шт.

8

1262484C2

PANEL

- floor

1шт.

9

1262485C2

PANEL

- floor

1шт.

10

1270076C1

GUIDE

- bracket, basket chain

2шт.

11

1270077C1

GUIDE

- bracket, basket chain

2шт.

12

1270078C1

GUIDE

- bracket, basket chain

4шт.

13

1339112C1

ANGLE

BAR - support, lower front

2шт.

14

1339113C1

ANGLE

BAR - support, lower rear

2шт.

15

1278298C1

GUIDE

- chain

2шт.

16

1278058C1

SUPPORT

- center

1шт.

17

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

1шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

22

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

23

492-11038

LOCK WASHER,3/8"

1шт.

24

425-106

NUT,3/8"-16, Cl 5

1шт.

25

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

26

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

1шт.

27

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

Выбрано товаров: 25
