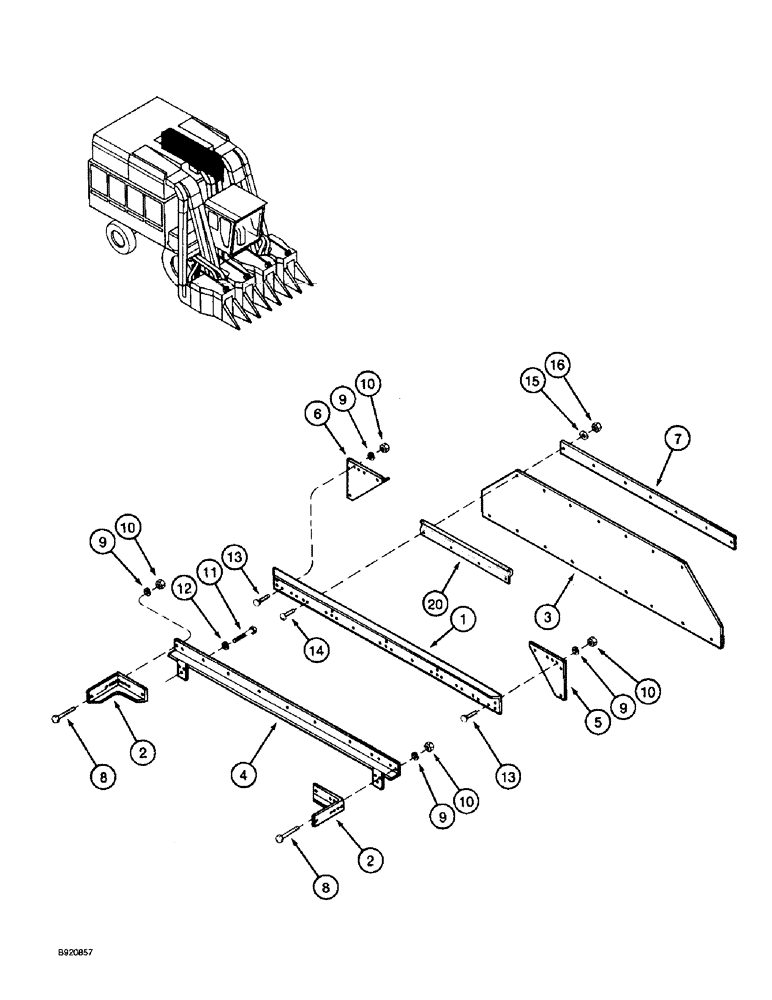

Запчасти Case IH 2044 (9D-28) - BASKET SIDE, LEFT-HAND, EXCLUDING DOOR ASSEMBLY (16) - BASKET

REF

INSTRUCTION

BASKET ASSEMBLY - cotton picker, complete (See Note)

1шт.

1

1260248C1

SUPPORT

ANGLE - basket

1шт.

2

1278117C1

ANGLE

BRACE - corner

4шт.

3

1288754C5

MUDFLAP

FLAP - door

1шт.

4

1288785C3

SUPPORT

BRACKET - upper

1шт.

5

1288786C1

LARGE PLATE

PLATE - corner, front

1шт.

6

1288787C1

LARGE PLATE

PLATE - corner, rear

1шт.

7

1288894C2

BAR

- door

1шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

9

492-11038

LOCK WASHER,3/8"

1шт.

10

425-106

NUT,3/8"-16, Cl 5

1шт.

11

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

13

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

4шт.

14

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

1шт.

15

495-81143

WASHER,13/32" x 1 1/2" x .120"

1шт.

16

231-5146

FLANGE NUT,3/8"-16

1шт.

20

1990166C1

COVER

- basket lamp harness

2шт.
