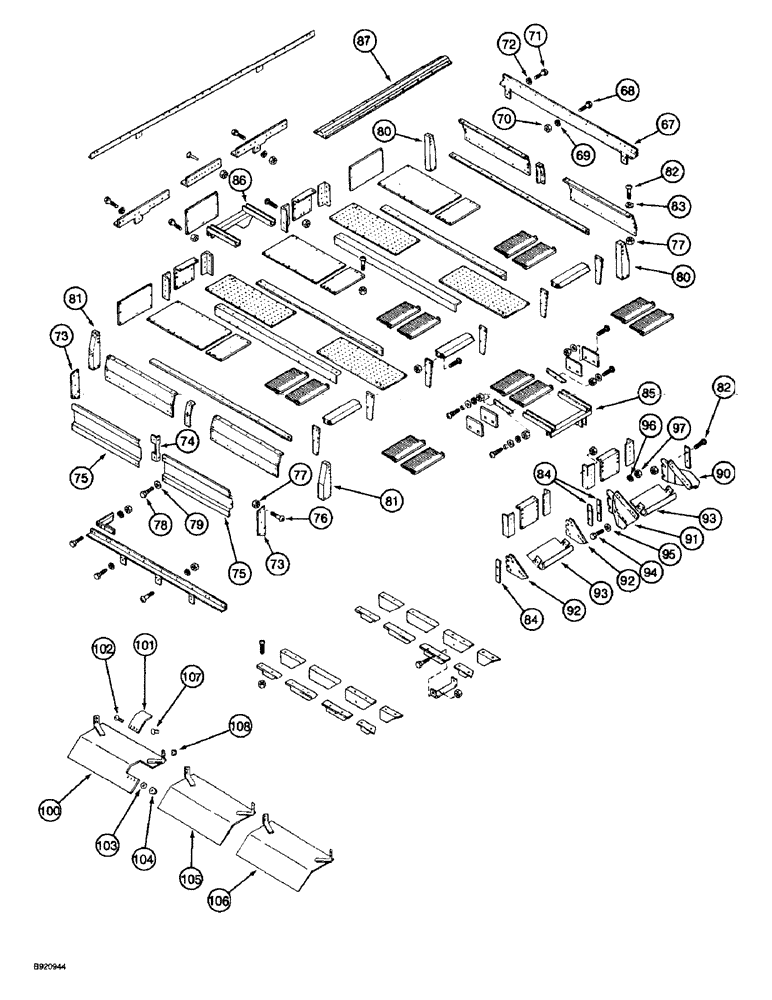

Запчасти Case IH 2044 (9D-16) - BASKET TOP, 2044 COTTON PICKER (16) - BASKET

67

1288785C3

SUPPORT

BRACKET - side, left-hand

1шт.

68

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

69

492-11038

LOCK WASHER,3/8"

1шт.

70

425-106

NUT,3/8"-16, Cl 5

1шт.

71

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

72

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

73

1278767C1

LARGE PLATE

END - channel

2шт.

74

1278768C1

SUPPORT

- center

1шт.

75

1278766C2

CONDUIT

CHANNEL - side

2шт.

76

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

1шт.

77

231-5146

FLANGE NUT,3/8"-16

1шт.

78

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

1шт.

79

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

- flat, 11/32 x 1-1/4 x 1/16 inch

1шт.

80

1260278C3

LARGE PLATE

PLATE - end, left-hand (Replaces plate 1260278C2)

2шт.

81

1260279C3

LARGE PLATE

BRACKET - end, right-hand (Replaces bracket 1260279C2)

2шт.

82

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

1шт.

83

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

84

1270282C1

LARGE PLATE

BAR - spacer

12шт.

85

1278012C4

CHANNEL

- cylinder mount, front

1шт.

86

1278013C4

CHANNEL

- mount, rear

1шт.

87

87530C1

SUPPORT

- top

1шт.

90

1345222C3

SUPPORT

- grate, left-hand notch with flap

2шт.

91

1982282C2

SUPPORT

- grate, right-hand

2шт.

92

1345191C2

SUPPORT

- grate hood (Replaces support 1345191C1)

2шт.

93

1982265C2

LARGE PLATE

PLATE - grate filler

3шт.

94

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

6шт.

95

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

6шт.

96

392-11025

LOCK WASHER,1/4"

1/4"

6шт.

97

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

6шт.

100

1984199C1

DEFLECTOR

- left-hand

1шт.

101

1984213C1

LARGE PLATE

PLATE - deflector, left-hand

1шт.

102

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

3шт.

103

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

3шт.

104

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

105

1984256C1

DEFLECTOR

- center

1шт.

106

1984197C1

DEFLECTOR

- right-hand

1шт.

107

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

12шт.

108

231-5146

FLANGE NUT,3/8"-16

12шт.
