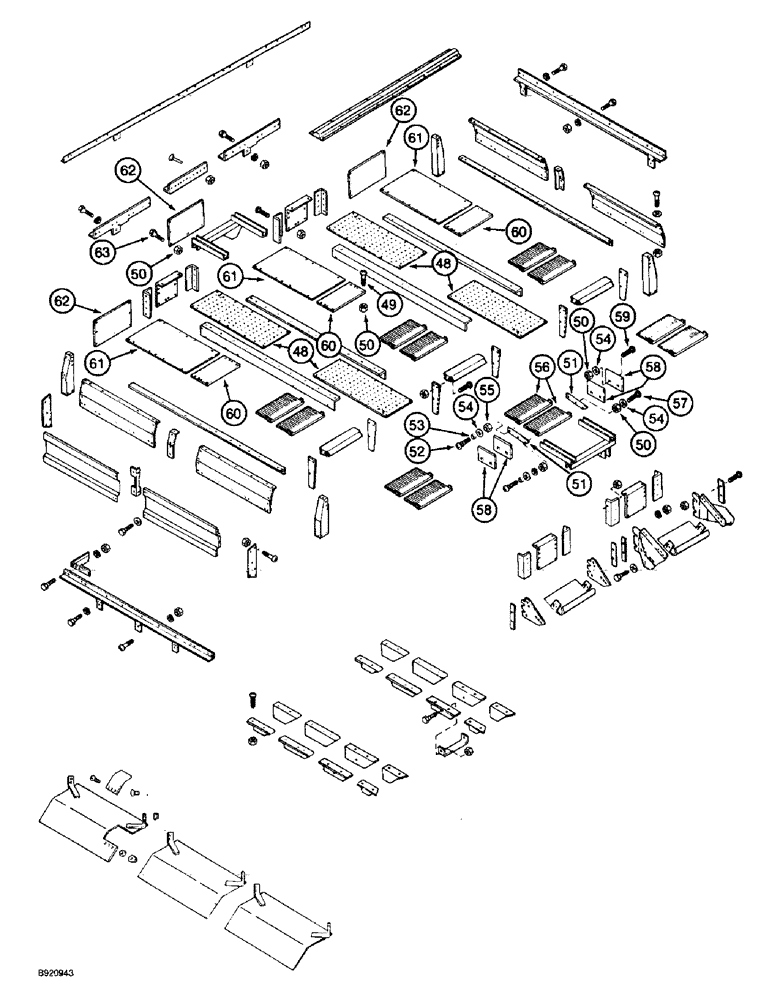

Запчасти Case IH 2044 (9D-14) - BASKET TOP, 2044 COTTON PICKER (16) - BASKET

48

1260282C5

LARGE PLATE

PLATE - extension (Replaces plate 1260282C4)

4шт.

49

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

1шт.

50

231-5146

FLANGE NUT,3/8"-16

1шт.

51

1260284C2

BAR

- cover door

2шт.

52

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

BOLT - carriage, 3/8 NC x 1-1/2 inch

1шт.

53

561277R1

SPACER,5/8" Tube x 1/2"

- 13/32 x 5/8 x 7/16 inch

2шт.

54

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

55

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

1шт.

56

1260285C1

DEFLECTOR

- basket door

2шт.

57

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

1шт.

58

1288762C1

LARGE PLATE

PLATE - support, grate

4шт.

60

87008C2

LARGE PLATE

PLATE - top, front (Replaces plate 87008C1)

3шт.

61

87793C1

LARGE PLATE

PLATE - top, rear

3шт.

62

1270164C2

COVER

- rear

3шт.

63

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

1шт.

59

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

1шт.
