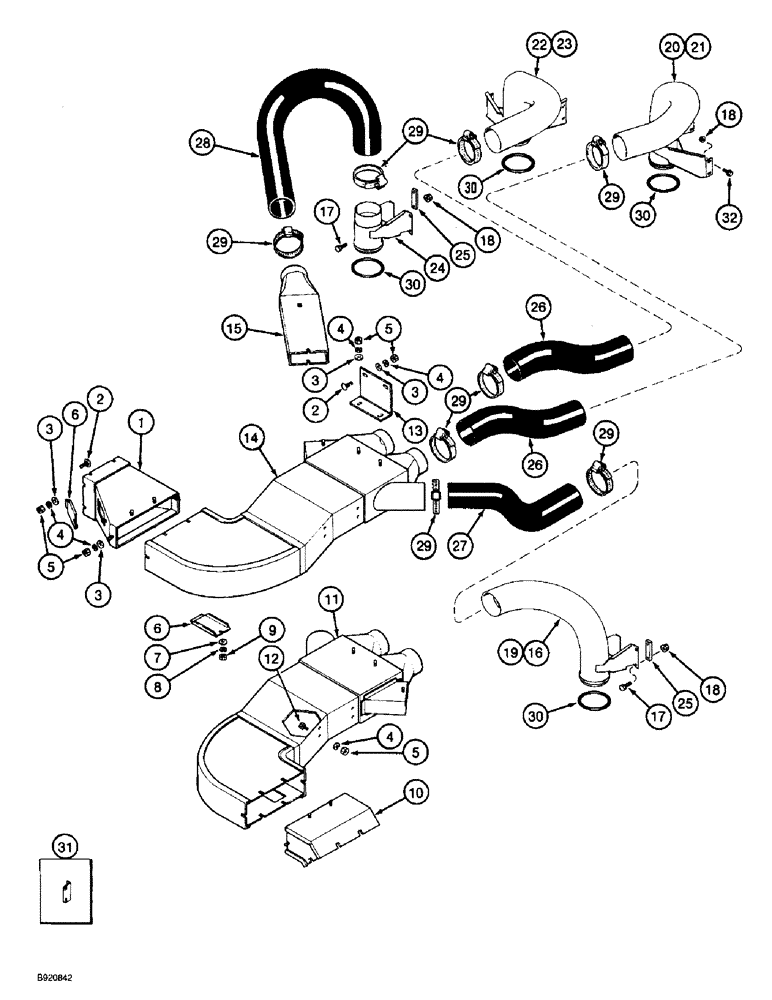

Запчасти Case IH 2044 (9C-32) - AIR DUCTS AND HOSES, 2044 COTTON PICKER (15) - HANDLING SYSTEM

1

1270084C1

DUCT

- transition, left-hand and right-hand sides

2шт.

2

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

18шт.

2

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

3

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

48шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

48шт.

5

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

48шт.

6

1270220C1

COVER

- access hole

4шт.

7

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

9

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

10

1270166C1

DUCT

- elbow

1шт.

11

1270140C2

PIPE, EXHAUST SYSTEM

DUCT - air supply, left-hand

1шт.

12

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

4шт.

13

1270229C2

SUPPORT

BRACKET - duct, support

2шт.

14

1270090C3

PIPE, EXHAUST SYSTEM

DUCT - right-hand (Replaces duct 1270090C2)

1шт.

15

1278744C1

PIPE, EXHAUST SYSTEM

DUCT - inner drum rear

2шт.

16

1983005C1

PIPE, EXHAUST SYSTEM

DUCT - No. 1 drum, rear

1шт.

17

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

16шт.

18

231-5146

FLANGE NUT,3/8"-16

16шт.

19

1983023C1

PIPE, EXHAUST SYSTEM

DUCT - No. 4 drum

1шт.

20

1983009C1

PIPE, EXHAUST SYSTEM

DUCT - No. 1 drum, rear

1шт.

21

1983022C1

PIPE, EXHAUST SYSTEM

DUCT - No. 4 drum, front

1шт.

22

1983013C1

PIPE, EXHAUST SYSTEM

DUCT - No. 2 drum, front

1шт.

23

1983021C1

PIPE, EXHAUST SYSTEM

DUCT - No. 3 drum, front

1шт.

24

1983020C1

PIPE, EXHAUST SYSTEM

DUCT - No. 2 and 3 drum, rear

2шт.

25

1983017C1

LARGE PLATE

PLATE - spacer

4шт.

26

NSS

NOT SOLD SEPARAT

HOSE - 5 inch (127 mm) diameter air, 31 inch (787 mm) long, cut from bulk hose 1349877CX below

4шт.

27

NSS

NOT SOLD SEPARAT

HOSE - 5 inch (127 mm) diameter air, 27 inch (686 mm) long, cut from bulk hose 1349877CX below

2шт.

28

NSS

NOT SOLD SEPARAT

HOSE - 5 inch (127 mm) diameter air, 35 inch (889 mm) long, cut from bulk hose 1349877CX below

2шт.

29

214-1480

HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm

CLAMP, HOSE, , Adj. #80, 4.62/5.50 Type F Worm

16шт.

30

238-6428

O-RING,0.275" Thk x 4.85" ID, -428, Cl 6, 90 Duro

- 4-7/8 ID x 1/4 inch wide

8шт.

31

1983026C1

ANGLE BAR

SUPPORT - duct

4шт.

32

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

16шт.

1349877CX

LARGE HOSE

HOSE - bulk, 5 (27) ID x 300 inch (7620 mm) long

1шт.
