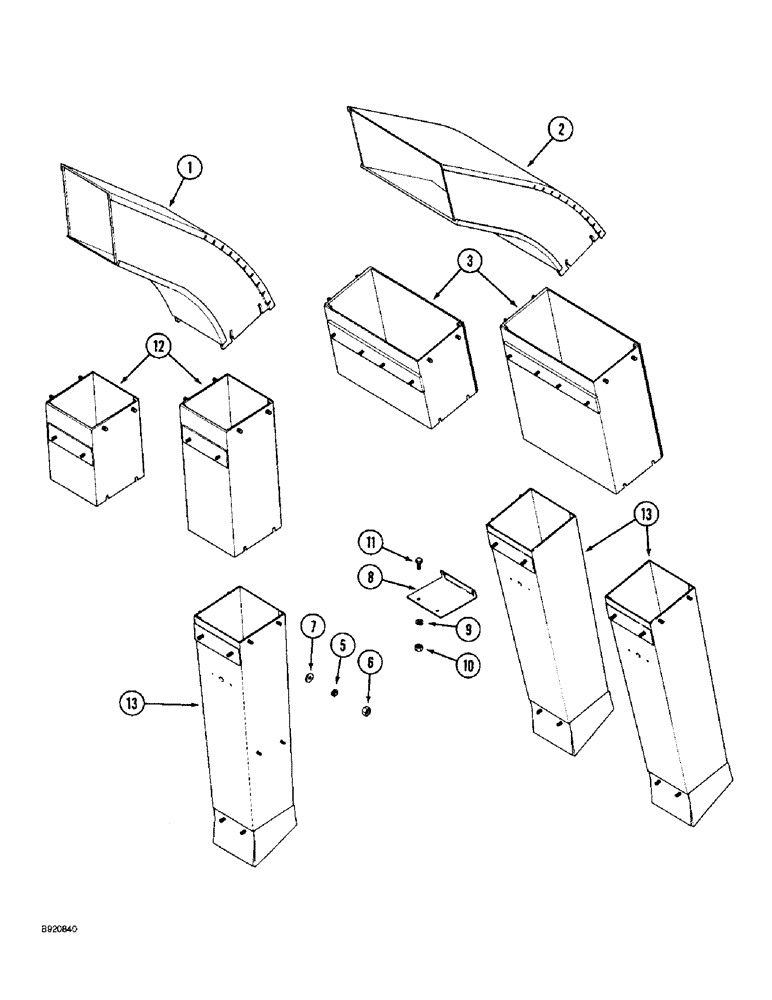

Запчасти Case IH 2044 (9C-28) - CONVEYOR CHUTE LONG EXTENSIONS, 2044 COTTON PICKER (15) - HANDLING SYSTEM

1

REF

INSTRUCTION

HOOD - single chute, see page 9C-27

2шт.

2

REF

INSTRUCTION

HOOD - double chute, see page 9C-27

4шт.

3

1982206C1

TUBE

CHUTE - long double, 23-9/64 inch

2шт.

5

492-11038

LOCK WASHER,3/8"

24шт.

6

425-106

NUT,3/8"-16, Cl 5

24шт.

7

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16") 7/16", SAE

24шт.

8

1278649C1

ANGLE BAR

BRACKET - front chute support (See Note)

4шт.

See Figure Note.

1шт.

9

492-11038

LOCK WASHER,3/8"

8шт.

10

425-106

NUT,3/8"-16, Cl 5

8шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

8шт.

12

1982203C1

TUBE

CHUTE - long single, 23-9/64 inch

4шт.

13

REF

INSTRUCTION

CHUTE - main, see page 9C-27

8шт.

1

REF

INSTRUCTION

HOOD - single chute, see page 9C-27

2шт.

2

REF

INSTRUCTION

HOOD - double chute, see page 9C-27

4шт.

3

1982231C1

TUBE

CHUTE - short double, 14-13/64 inch

2шт.

5

492-11038

LOCK WASHER,3/8"

24шт.

6

425-106

NUT,3/8"-16, Cl 5

24шт.

7

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16") 7/16", SAE

24шт.

12

1982218C1

TUBE

CHUTE - short single, 14-13/64 inch

4шт.

13

REF

INSTRUCTION

CHUTE - main, see page 9C-27

8шт.
