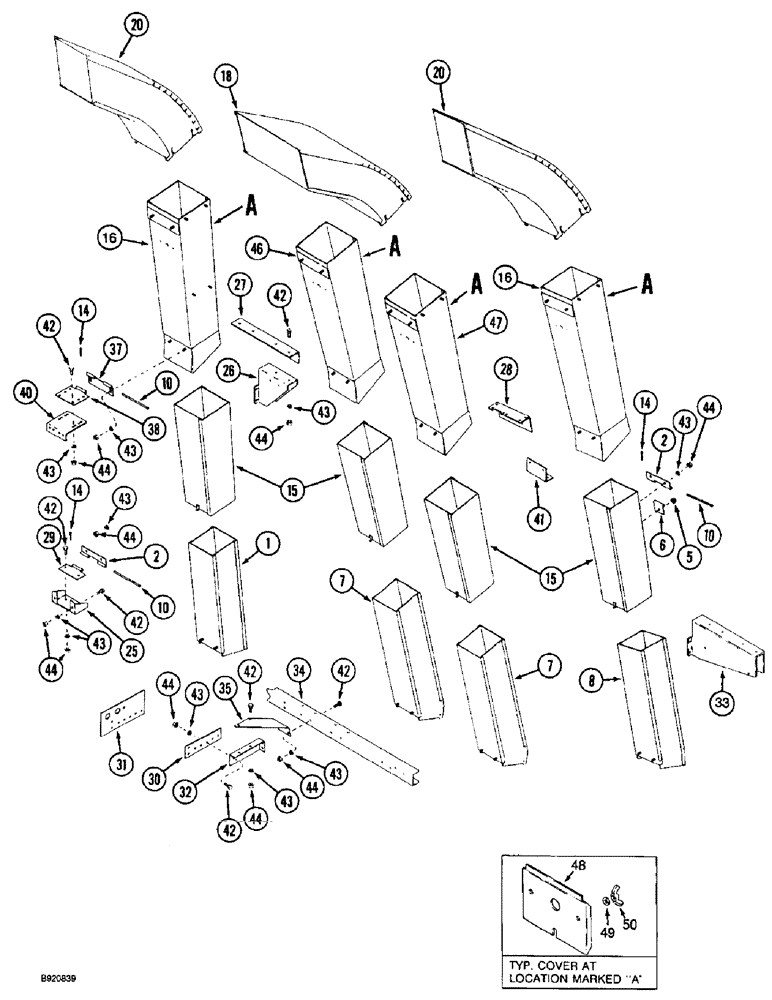

Запчасти Case IH 2044 (9C-26) - CONVEYOR CHUTES, 2044 COTTON PICKER (15) - HANDLING SYSTEM

1

1278534C1

TUBE

CHUTE - lower slide, rear

2шт.

2

220402C1

HINGE

- chute

24шт.

5

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC (Replaces nut 9411655)

16шт.

6

1270014C1

HINGE

- short, male

16шт.

7

1278539C1

TUBE

CHUTE - lower slide, front

4шт.

8

1278580C1

TUBE

CHUTE - lower outer, left-hand, not shown

1шт.

8

1278581C1

TUBE

CHUTE - lower outer, right-hand

1шт.

10

1262749C1

HEADED PIN

PIN - headed, hinge

16шт.

14

32-812

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

15

1278546C2

CHUTE ASSY.

CHUTE - upper slide

8шт.

16

1988782C2

PIPE, EXHAUST SYSTEM

CHUTE - main

4шт.

18

1982210C1

TUBE

HOOD - double chute, right-hand

1шт.

18

1982286C1

TUBE

HOOD - double chute, left-hand, not shown

1шт.

20

1338916C1

PIPE, EXHAUST SYSTEM

HOOD - single chute

4шт.

25

1278617C1

SUPPORT

- rear, chute hinge

2шт.

26

1278620C2

SUPPORT

BRACKET - front, chute support

1шт.

27

1278621C2

ANGLE BAR

BRACKET - front, chute support

2шт.

28

1278622C3

ANGLE BAR

BRACKET - outer, chute support

2шт.

29

1278616C1

HINGE

- short

8шт.

30

1278640C1

LARGE PLATE

PLATE - chute support

1шт.

31

1338925C1

SUPPORT

BRACKET - basket supply hose

1шт.

32

1278641C1

ANGLE BAR

BRACKET - upper chute support, left-hand, not shown

1шт.

32

1278642C1

ANGLE BAR

BRACKET - upper chute support, right-hand

1шт.

33

1984445C1

SUPPORT

BRACKET - air chute

1шт.

34

1982215C1

SUPPORT

CHANNEL - chute support

1шт.

35

1278645C1

SUPPORT

BRACE - upper channel support, left-hand, not shown

1шт.

35

1278646C1

SUPPORT

BRACE - upper channel support, right-hand

1шт.

37

1278647C1

HINGE

- slotted

8шт.

38

1278648C1

HINGE

- adjustable

8шт.

40

1338910C1

ANGLE BAR

BRACKET - outer hinge support

4шт.

41

1982216C1

ANGLE BAR

BRACKET - outer chute support

2шт.

42

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

80шт.

43

492-11038

LOCK WASHER,3/8"

160шт.

44

425-106

NUT,3/8"-16, Cl 5

160шт.

46

1988783C2

PIPE, EXHAUST SYSTEM

CHUTE - outer right-hand, inner left-hand

2шт.

47

1988784C2

PIPE, EXHAUST SYSTEM

CHUTE - outer left-hand, inner right-hand

2шт.

48

1983180C1

COVER

- duct access

4шт.

49

495-31027

WASHER,1/4"

- flat, 17/64 x 5/8 x 3/64 inch

4шт.

50

86627130

WING NUT,1/4"-20

NUT - wing, 1/4 inch NC

4шт.
