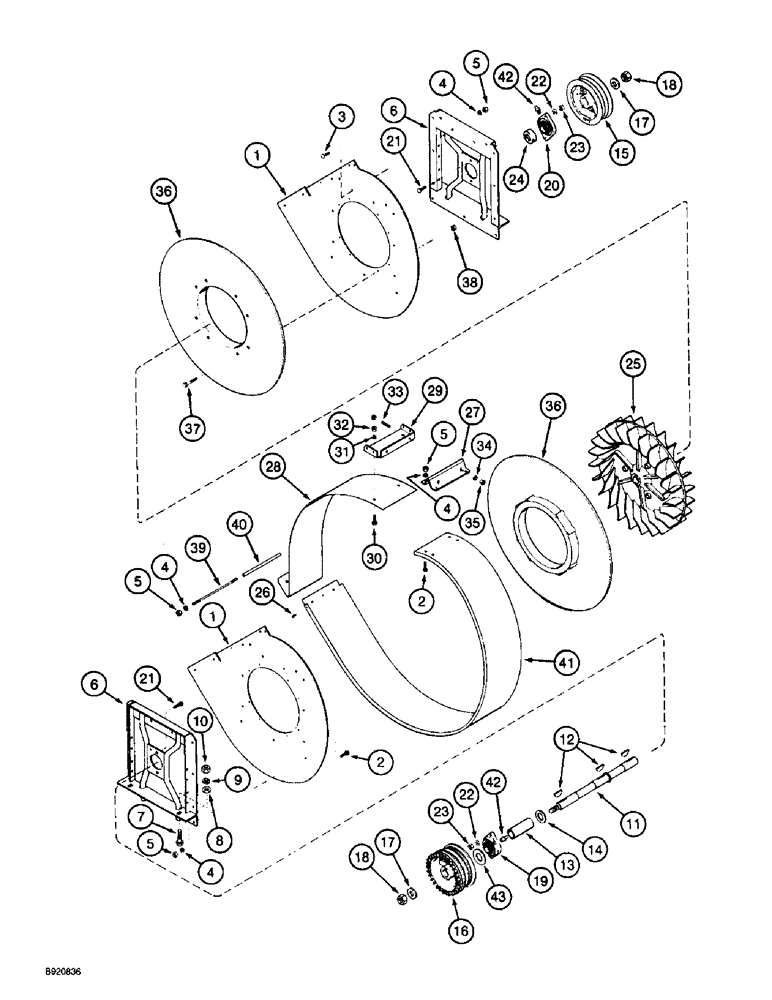

Запчасти Case IH 2044 (9C-10) - REAR FAN, 2044 COTTON PICKER (15) - HANDLING SYSTEM

1345031C2

FAN

ASSEMBLY - rear (Replaces fan assembly 1345031C1)

1шт.

1

1260066C1

LARGE PLATE

PLATE - side, fan

2шт.

2

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT - carriage, 1/4 NC x 3/4 inch

10шт.

3

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

Bolt, Carriage, Short NK, 1/4"-20 x 1/2", G5, Full Thd

19шт.

3

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

1шт.

4

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

32шт.

5

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

32шт.

6

1260120C3

HOUSING

- fan

2шт.

7

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

8

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

4шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

11

1260072C3

SHAFT

- fan drive

1шт.

12

126-147

WOODRUFF KEY,#28, 5/16" x 2 1/8", HT

3шт.

13

1260073C1

SPACER

- fan

1шт.

14

495-81214

WASHER,1.41" ID x 2.25" OD x 0.06" Thk

- flat, 1-13/32 x 2-1/4 x 3/64 inch

1шт.

15

1338322C1

PULLEY

- fan

1шт.

16

87012C2

PULLEY

- fan, 7-5/8 inch (194 mm) diameter

1шт.

17

496-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

- flat, 15/16 x 1-3/4 x 1/8 inch, hardened

2шт.

18

131-476

SPECIAL NUT,7/8"-14

NUT - hex, self-locking, 7/8 inch NF

2шт.

19

1260257C1

FLANGED BEARING,34.93mm ID

BEARING - fan, front

1шт.

20

1263058C91

FLANGED BEARING,34.92mm ID

BEARING - fan, rear

1шт.

21

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

BOLT - carriage, 3/8 NC x 1-1/2 inch

4шт.

22

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

23

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

4шт.

24

517645R11

COLLAR

- locking with set screw

1шт.

25

1260010C1

FAN

- rotor

1шт.

26

260-1346

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"

SCREW - self-tapping, pan Phillips, No. 8-18 x 3/8 inch

2шт.

27

204414C1

SUPPORT

- tie bracket

1шт.

28

204416C1

BAFFLE

PLATE - cover

1шт.

29

204415C1

SUPPORT

- bolt anchor

1шт.

30

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

6шт.

31

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

32

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

6шт.

33

433-648

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3", Gr 5

BOLT - carriage, 3/8 NC x 3 inch

2шт.

34

492-11038

LOCK WASHER,3/8"

2шт.

35

425-106

NUT,3/8"-16, Cl 5

2шт.

36

207515C1

BAFFLE

- fan

2шт.

37

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

16шт.

38

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

16шт.

39

215709C1

STUD

- fan housing connector

1шт.

40

215020C1

PIPE

- fan housing

1шт.

41

221533C1

COVER

- outer

1шт.

42

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper, For machines without centralized chassis grease system (Replaces fitting 109454) 1/4"-28 NPT x .54" lg

2шт.

43

96-11144

WASHER,1.44" ID x 2.75" OD x 0.15" Thk

- flat, 1-7/16 x 2-3/4 x 5/32 inch, hardened

1шт.
