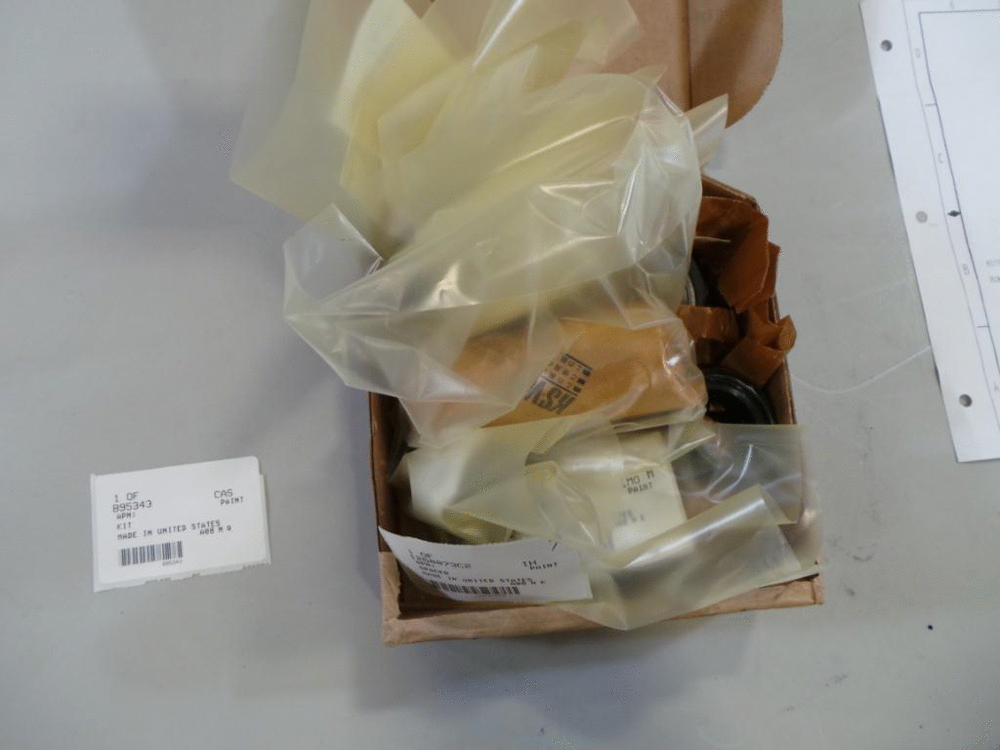

Запчасти Case IH 2044 (9C-10[01]) - 80715 80715 KIT FAN W/O SHAFT FRONT (15) - HANDLING SYSTEM

1

B95343

KIT

Incl 2 - 11

1шт.

2

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

3

86625064

NUT,Prev Torque, 3/8" - 16, Gr B

4шт.

4

496-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

1шт.

5

495-81214

WASHER,1.41" ID x 2.25" OD x 0.06" Thk

2шт.

6

280552

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

4шт.

7

219-439

ADAPTER,90 Degree, 1/4"-1/8 NPTF

2шт.

8

131-476

SPECIAL NUT,7/8"-14

1шт.

9

1260257C1

FLANGED BEARING,34.93mm ID

Fan

2шт.

10

1260073C2

SPACER

Fan Blade

1шт.

11

NH80715

LUBE NIPPLE

2шт.
