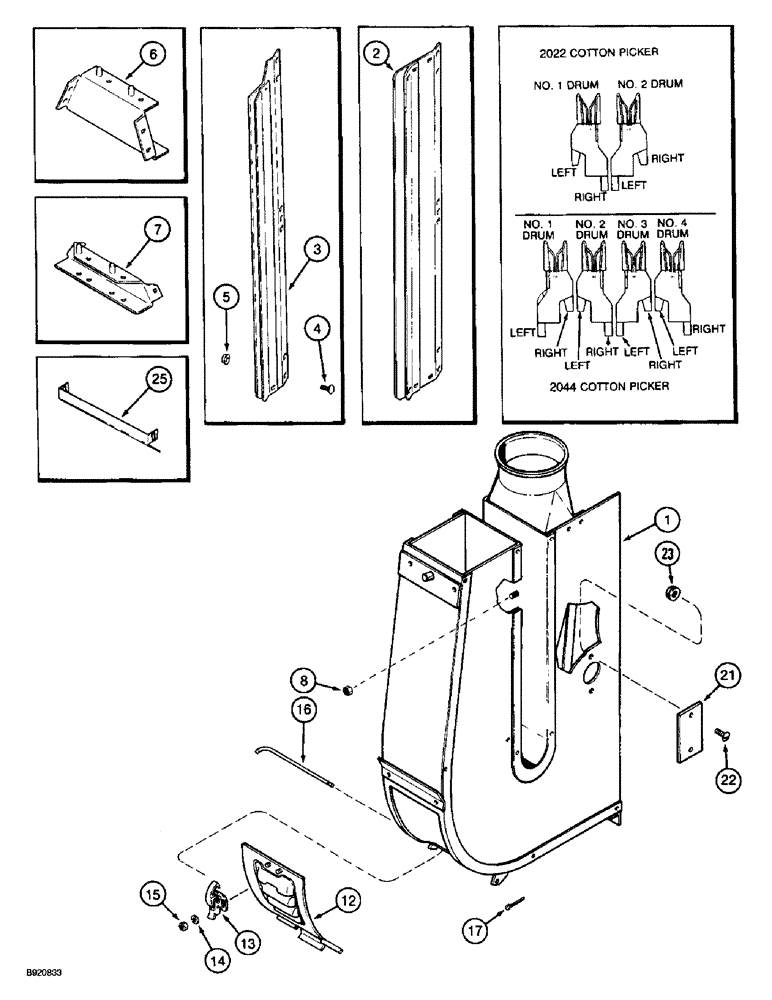

Запчасти Case IH 2044 (9C-02) - OUTLETS (15) - HANDLING SYSTEM

1

1338677C1

CHUTE ASSY.

DOOR - access, left-hand, No. 1 and 2 drum, 2022 Cotton Picker (Replaces door 1338677C1) (replaces 1994824C1)

2шт.

1

1338678C1

CHUTE ASSY.

DOOR - access, right-hand, No. 1 and 2 drum, 2022 Cotton Picker (Replaces door 1338678C1) (replaces 1994821C1)

2шт.

1

1994827C1

CHUTE ASSY.

DOOR - access, left-hand, No. 1 drum, 2044 Cotton Picker (Replaces door 1984363C1)

1шт.

1

1338678C1

CHUTE ASSY.

DOOR - access, right-hand, No. 1 drum, 2044 Cotton Picker

1шт.

1

1338677C1

CHUTE ASSY.

DOOR - access, left-hand, No. 2 and 3 drum, 2044 Cotton Picker

2шт.

1

1338678C1

CHUTE ASSY.

DOOR - access, right-hand, No. 2 and 3 drum, 2044 Cotton Picker

2шт.

1

1338677C1

CHUTE ASSY.

DOOR - access, left-hand, No. 4 drum, 2044 Cotton Picker

1шт.

1

1994829C1

CHUTE ASSY.

DOOR - access, right-hand, No. 4 drum, 2044 Cotton Picker (Replaces door 1984364C1)

1шт.

2

1982851C1

ANGLE BAR

BRACKET - door adapter, front

1шт.

3

1982855C1

ANGLE BAR

BRACKET - door adapter, rear, No. 1 and 2 drum, 2022 Cotton Picker

2шт.

3

1984351C1

SUPPORT

BRACKET - door adapter, rear, No. 1 drum, 2044 Cotton Picker

1шт.

3

1982855C1

ANGLE BAR

BRACKET - door adapter, rear, No. 2 and 3 drum, 2044 Cotton Picker

2шт.

3

1984352C1

ANGLE BAR

BRACKET - door adapter, rear, No. 4 drum, 2044 Cotton Picker

1шт.

4

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

18шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC (Replaces nut 938017R1)

18шт.

6

1982842C1

SUPPORT

- outlet, front, No. 1 drum, 2022 Cotton Picker

1шт.

6

1982844C1

SUPPORT

- outlet, front, No. 2 drum, 2022 Cotton Picker

1шт.

6

1982844C1

SUPPORT

- outlet, front, No. 1 and 3 drum, 2044 Cotton Picker

2шт.

6

1982842C1

SUPPORT

- outlet, front, No. 2 and 4 drum, 2044 Cotton Picker

2шт.

7

1982846C1

SUPPORT

- outlet, rear, No. 1 drum, 2022 Cotton Picker

1шт.

7

1982848C1

SUPPORT

- outlet, rear, No. 2 drum, 2022 Cotton Picker

1шт.

7

1982848C1

SUPPORT

- outlet, rear, No. 1 and 3 drum, 2044 Cotton Picker

2шт.

7

1982846C1

SUPPORT

- outlet, rear, No. 2 and 4 drum, 2044 Cotton Picker

2шт.

8

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, (Replaces nut 9413979) 3/8"-16, GC

4шт.

12

1266308C1

DOOR

- access

2шт.

13

1333780C1

LATCH

- access door

2шт.

14

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

15

225-14210

NUT,#10-32

4шт.

16

216151C1

PIN

- hinge, access door

2шт.

17

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

21

87727C1

LARGE PLATE

PLATE - monitor cover

6шт.

22

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

(Replaces screw 161108C1) Hex Flg, 1/4"-20 x 1/2", Serr

21шт.

23

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

(Replaces nut 938016R1) Flg, USR, 1/4"-20

21шт.

25

1990247C1

GUARD

SHIELD - outlet, No. 1 and 4 drum, 2044 Cotton Picker

1шт.
