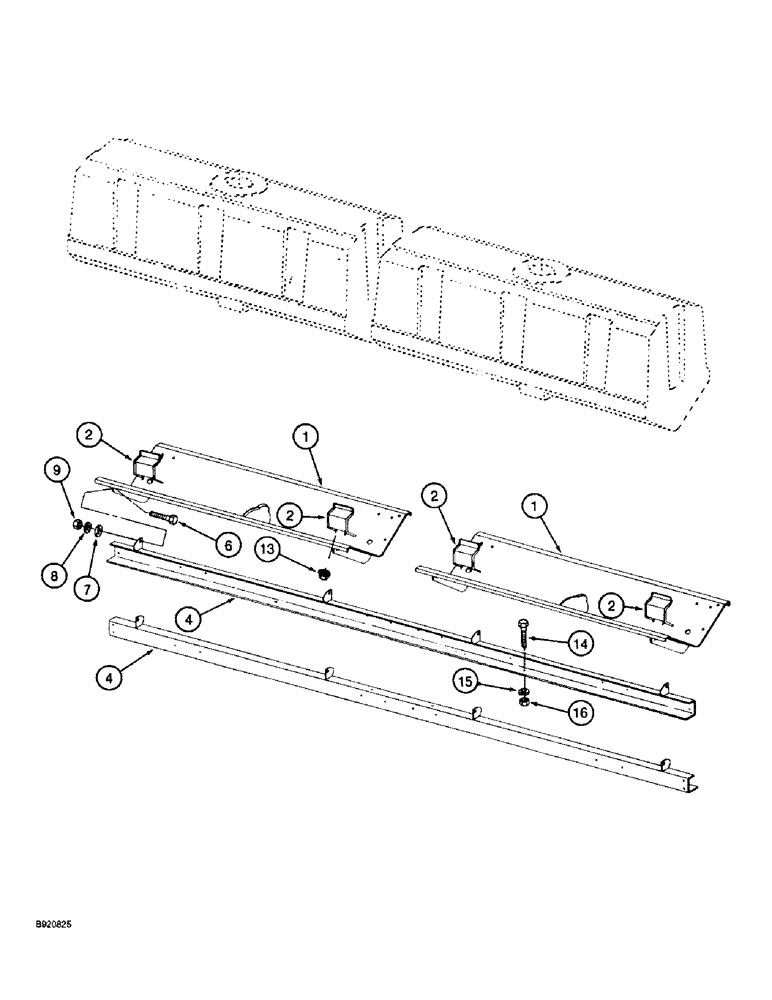

Запчасти Case IH 2044 (9B-08) - WATER TANK SUPPORT, 2044 COTTON PICKER (14) - WATER SYSTEM

1

1339484C1

SUPPORT

SADDLE - tank

2шт.

2

1329232C1

SUPPORT

BRACKET - tank retaining

8шт.

4

1270191C4

SUPPORT

- water tank

2шт.

6

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

8шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

16шт.

8

492-11038

LOCK WASHER,3/8"

8шт.

9

425-106

NUT,3/8"-16, Cl 5

8шт.

13

231-5146

FLANGE NUT,3/8"-16

16шт.

14

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

16

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.
