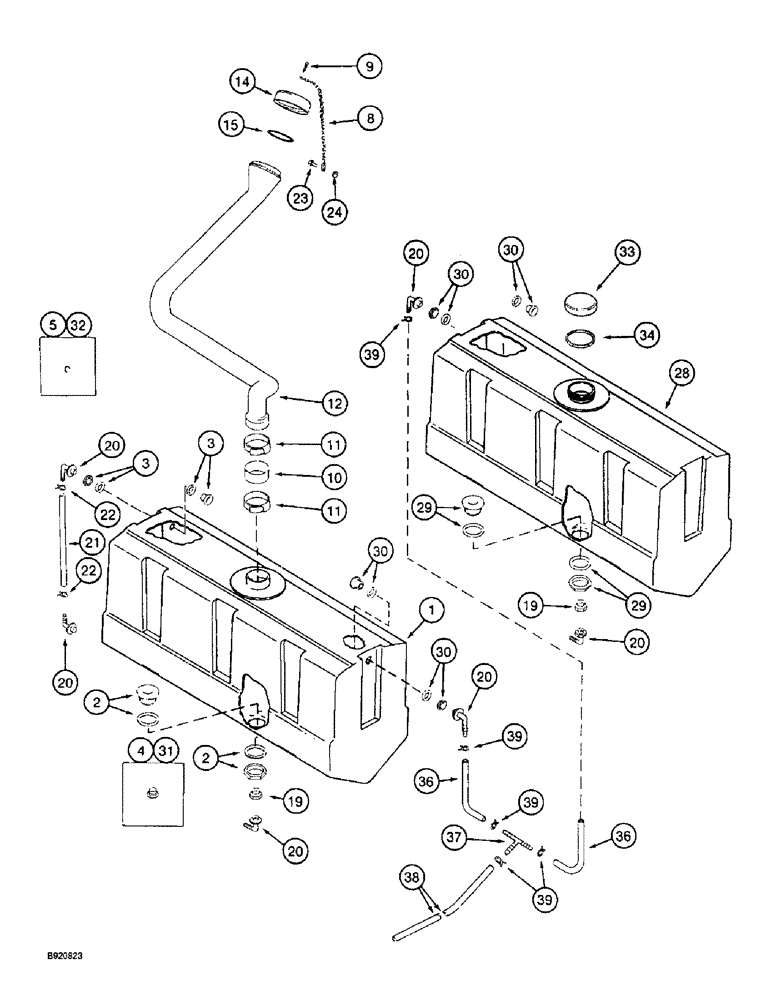

Запчасти Case IH 2044 (9B-04) - WATER TANK, 2044 COTTON PICKER (14) - WATER SYSTEM

1

1329203C2

TANK

ASSEMBLY - water, 130 gallon, left-hand side

1шт.

2

1254377C1

FITTING

- nylon, 4 piece, special, 1-1/4 inch PT

2шт.

3

1345186C1

FITTING

- nylon, 4 piece, 3/4 inch PT

3шт.

4

1254380C2

PLUG,Hex Hd, 1 1/4" NPT, Nylon

- hex, special, 1-1/4 inch PT

1шт.

5

353-207

PLUG,Sq Drive, 3/4"-14 NPT

- square drive, 3/4 inch PT

3шт.

8

1345176C1

CHAIN (AG)

CHAIN - water cap

1шт.

9

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

10

1345179C1

COUPLING

- spout

1шт.

11

214-1466

HOSE CLAMP,#66, 3.75" - 4.63", Type F Worm

CLAMP - Type F hose (Replaces clamp 274090R91)

2шт.

12

1345150C1

TUBE,80 mm OD, 731.6, 239.4 mm Length

- water fill

1шт.

14

1345173C1

PLUG

CAP ASSEMBLY - tank

1шт.

15

1345175C1

GASKET,115.1mm ID x 131.1mm OD x 3.8mm Thk

- tank cap

1шт.

19

1329209C1

BUSHING

REDUCER - 1-1/4 female x 3/4 inch male

1шт.

20

1329210C1

ELBOW

- 90 degree, 1/2 stem end x 3/4-16 inch

5шт.

21

NSS

NOT SOLD SEPARAT

HOSE - sight gauge, 19 inch (483 mm) long, cut from bulk hose 665181R1 below

1шт.

22

214-1312

HOSE CLAMP,#12, 3/4", Spring

CLAMP - spring type, 3/4 inch

2шт.

23

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

24

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

28

1345184C1

TANK

ASSEMBLY - water, 130 gallon, right-hand side

1шт.

29

1254377C1

FITTING

- nylon, 4 piece, special, 1-1/4 inch PT

1шт.

30

1345186C1

FITTING

- nylon, 4 piece, 3/4 inch PT

1шт.

31

1254380C2

PLUG,Hex Hd, 1 1/4" NPT, Nylon

- hex, special, 1-1/4 inch PT

1шт.

32

353-207

PLUG,Sq Drive, 3/4"-14 NPT

- square drive, 3/4 inch PT

1шт.

33

1345173C1

PLUG

CAP ASSEMBLY - tank

1шт.

34

1345175C1

GASKET,115.1mm ID x 131.1mm OD x 3.8mm Thk

- tank cap

1шт.

36

NSS

NOT SOLD SEPARAT

HOSE - tank connector, 12 inch (305 mm) long, cut from bulk hose 665181R1 below

2шт.

37

1285274C1

TEE

- hose, 1/2 inch

1шт.

38

NSS

NOT SOLD SEPARAT

HOSE - water supply, 54 inch (1372 mm) long, cut from bulk hose 665181R1 below

1шт.

39

214-1312

HOSE CLAMP,#12, 3/4", Spring

CLAMP - spring type, 3/4 inch, if used

5шт.

39

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

CLAMP - adjustable, 1/2-29/32 inch diameter, if used

5шт.

665181R1

HOSE,0.50" ID

Cut from Bulk 0.50" ID

1шт.
