Запчасти Case IH 2044 (9A-86) - SKIP ROW DOOR ATTACHMENT, 2044 COTTON PICKER (13) - PICKING SYSTEM

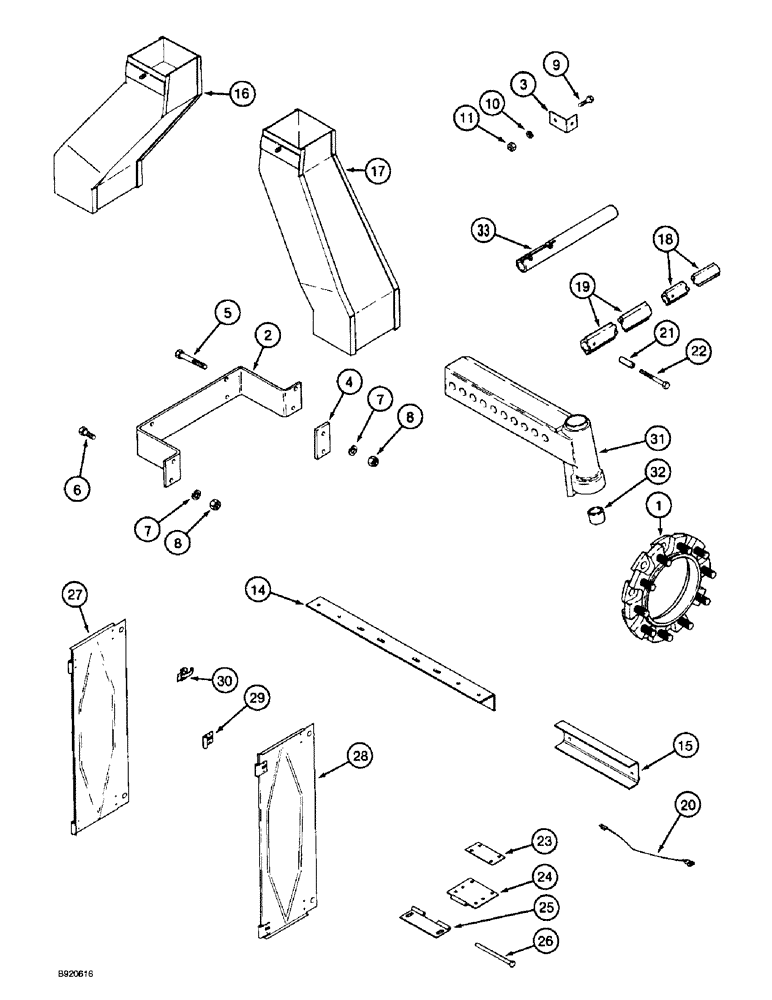

Схема запчастей Case IH 2044 - (9A-86) - SKIP ROW DOOR ATTACHMENT, 2044 COTTON PICKER (13) - PICKING SYSTEM
8
32
11
31
1
28
24
3
8
17
18
25
14
22
2
21
27
7
5
9
23
10
30
33
26
20
29
16
6
7
4
19
15

Артикул

Название

Примечание

Количество

1

188124C91

RETAINER

SPACER - wheel, 2 inch

2шт.

2

1349907C1

SUPPORT

BRACKET - extension mud shield

2шт.

3

1349923C1

SUPPORT

BRACKET - shield mounting

2шт.

4

215520C2

LARGE PLATE

BAR - mud blade

8шт.

5

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

8шт.

6

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

16шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

16шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

10

492-11038

LOCK WASHER,3/8"

4шт.

11

425-106

NUT,3/8"-16, Cl 5

4шт.

14

1349908C1

ANGLE BAR

ANGLE - front chute support

2шт.

15

1349920C1

ANGLE BAR

ANGLE - outer chute support

2шт.

16

1349983C1

EXTENSION

- rear dorr, left-hand

1шт.

17

1349984C1

EXTENSION

- rear door, right-hand

1шт.

18

1984330C1

TUBE

- inner profile

2шт.

19

1984331C1

TUBE

- outer profile

2шт.

20

1987369C1

HARNESS

- lamp extension

2шт.

21

155588C1

SPACER,3/8" X-Strng Pipe x 2"

- pipe, 3/8 x 2 inch

2шт.

22

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

2шт.

23

1988645C1

BLOCK

SPACER - hinge

4шт.

24

1278648C1

HINGE

- adjustable

8шт.

25

1278647C1

HINGE

- slotted

4шт.

26

1262749C1

HEADED PIN

PIN - headed, hinge

4шт.

27

1278819C2

DOOR

- drum, left-hand

1шт.

28

1278820C2

DOOR

- drum, right-hand

1шт.

29

1278818C2

HINGE

- door

4шт.

30

1333780C1

LATCH

- hinge

2шт.

31

1988879C1

AXLE

ASSEMBLY - stub extension

2шт.

32

1259518C1

BUSHING,63.53mm ID x 67.21mm OD x 50.8mm L

- spindle

2шт.

33

1988880C1

TUBE

- tie rod

2шт.

Выбрано товаров: 31
