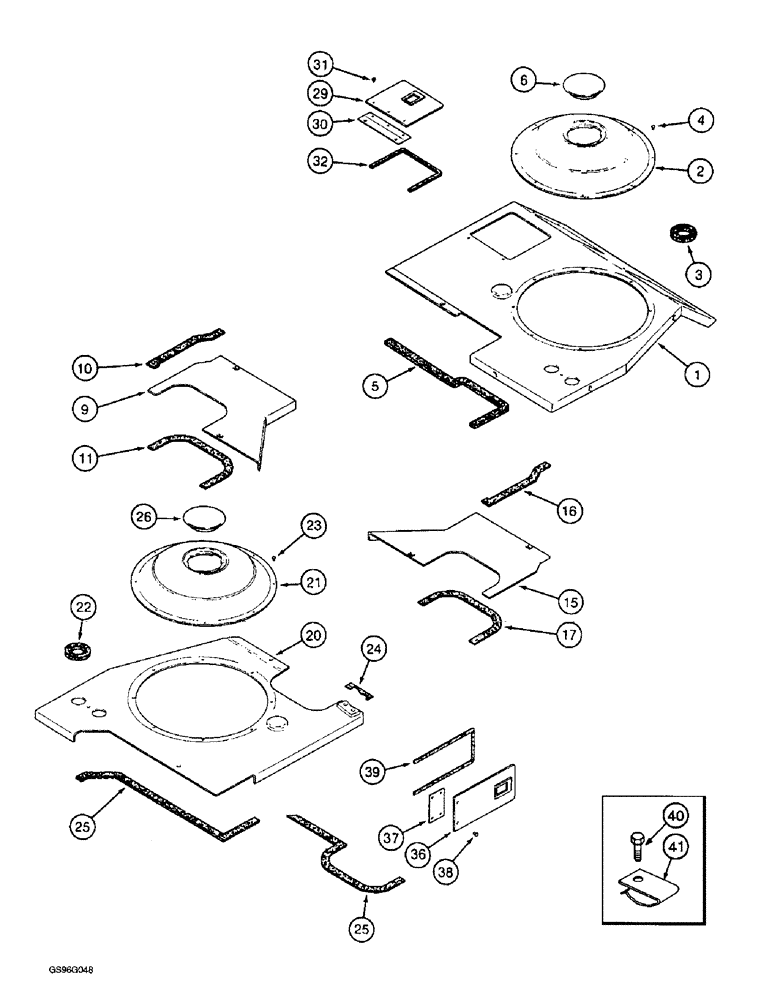

Запчасти Case IH 2044 (9A-82) - DRUM COVERS (13) - PICKING SYSTEM

1982626C1

COVER

ASSEMBLY - left-hand top, front

1шт.

1982627C1

COVER ASSY

COVER ASSEMBLY - right-hand top, front

1шт.

1982724C1

COVER ASSY

COVER ASSEMBLY - upper, front

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - top front, order cover assembly

1шт.

2

1982649C1

COVER

- drum rotor

1шт.

3

1990287C1

GASKET

GASKET - doffer, foam

1шт.

4

151-218

RIVET,Tr Hd, 3/16" x .281", Alum.

8шт.

5

NSS

NOT SOLD SEPARAT

SEAL - foam duct, 21-1/4 inch (540 mm) long, cut from bulk seal 195917C1

1шт.

6

353-414

PLUG,Dome, 1.375" Hole, Nylon

top cover Dome, 1.375" hole, Nylon

1шт.

1990260C2

OLIVE

COVER ASSEMBLY - top center

1шт.

9

1982628C1

COVER

- top, center, order cover assembly 1990260C2

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - foam duct, 10-5/16 inch (262 mm) long, cut from bulk seal 195917C1 below

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - foam duct, 15-23/64 inch (390 mm) long, cut from bulk seal 195917C1 below

1шт.

1990261C2

COVER ASSY

COVER ASSEMBLY - top, center

1шт.

15

1982629C1

COVER

- top center, order cover assembly 1990261C2, shown

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - foam duct, 10-5/16 inch (262 mm) long, cut from bulk seal 195917C1 below

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - foam duct, 15-23/64 inch (390 mm) long, cut from bulk seal 195917C1 below

1шт.

1982630C2

COVER

ASSEMBLY - top, left-hand rear

1шт.

1982631C2

COVER

ASSEMBLY - top, right-hand rear, shown

1шт.

20

NSS

NOT SOLD SEPARAT

COVER - top rear, order cover assembly

1шт.

21

1982649C1

COVER

- drum rotor

1шт.

22

1990287C1

GASKET

GASKET - doffer, foam

1шт.

23

151-218

RIVET,Tr Hd, 3/16" x .281", Alum.

8шт.

24

NSS

NOT SOLD SEPARAT

SEAL - foam duct, 3-9/64 inch (80 mm) long, cut from bulk seal 187874C2 below

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL - foam duct, 2-23/64 inch (60 mm) long, cut from bulk seal 195917C1 below

2шт.

26

353-414

PLUG,Dome, 1.375" Hole, Nylon

top cover Dome, 1.375" hole, Nylon

1шт.

1982665C2

COVER ASSY

COVER ASSEMBLY - access, large

1шт.

29

1982666C2

COVER

- access, large

1шт.

30

1982668C1

HINGE

- access cover

1шт.

31

151-218

RIVET,Tr Hd, 3/16" x .281", Alum.

3шт.

32

1994969C1

SEALING STRIP

- foam, 17-3/4 inch (450 mm) long, cut from bulk seal 1994968C1 below

1шт.

1982669C2

COVER ASSY

COVER ASSEMBLY - access, small

1шт.

Latch for # 1982669c2 is a 1982673c1

1шт.

36

1982670C2

COVER

- access, small

1шт.

37

1982672C1

HINGE

- access cover

1шт.

38

151-218

RIVET,Tr Hd, 3/16" x .281", Alum.

2шт.

39

1994970C1

SEALING STRIP

- foam, 20-1/8 inch (512 mm) long, cut from bulk seal 1994968C1

1шт.

40

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch, use to attach covers to housing

1шт.

41

104329C1

NUT

- speed, U-type, 1/4-20, use to attach, Serial Range: covers-housing

1шт.

195917C1

GASKET

SEAL - bulk, foam, adhesive-backed, 600 inch (15240 mm) long

1шт.

187874C1

GASKET

SEAL - bulk sheet, 3/8 (10) wide x 600 (15240 mm) long x 1/8 inch (3 mm) thick

1шт.

1994968C1

FOAM INSULATION

SEAL - bulk, foam, adhesive-backed, 600 inch (15240 mm) long

1шт.
