(9A-76) - COVERS AND DOORS, 2044 COTTON PICKER

Запчасти Case IH 2044 (9A-76) - COVERS AND DOORS, 2044 COTTON PICKER (13) - PICKING SYSTEM

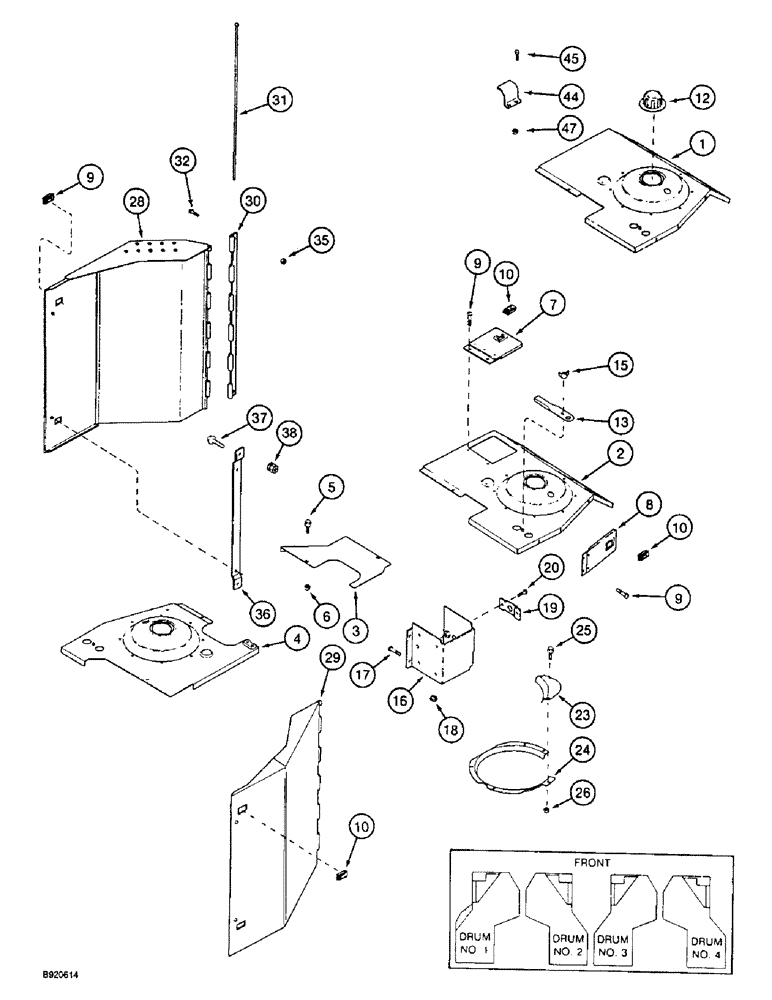

Схема запчастей Case IH 2044 - (9A-76) - COVERS AND DOORS, 2044 COTTON PICKER (13) - PICKING SYSTEM
37
25
6
23
29
38
17
32
24
9
12
15
10
44
30
19
9
1
47
4
16
7
28
35
20
13
18
3
36
26
10
8
5
45
9
2
10
31
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

(NOTE: A single quantity in the \xd2 required\xd3 columns

1шт.

5

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex flange, 1/4 NC x 3/4 inch

18шт.

6

673689R1

NUT

- speed, 1/4 inch NC

18шт.

8

1982669C2

COVER ASSY

COVER ASSEMBLY - access, small , parts list page 9A-83 (Replaces cover 1982669C1)

2шт.

Latch for # 8 is a 1982673c1

1шт.

9

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

SCREW - slotted truss head, 1/4 NC x 1/2 inch, Ten used with drums 1,2 and 4; Twelve used with drum 3

1шт.

12

1982787C2

PLUG

COVER - rotor (Replaces cover 1982787C1)

2шт.

13

1982894C2

LOCKING PLATE

PLATE - lock, doffer adjustment (Replaces plate 1982894C1)

2шт.

15

126177

WING NUT

NUT - wing, 1/4 inch NC

2шт.

23

1982858C1

COVER

- access, picker bar

2шт.

24

1988726C1

RING

- rotor guard, left-hand

1шт.

24

1988727C1

RING

- rotor guard, right-hand, shown

1шт.

25

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex flange, 1/4 NC x 3/4 inch

14шт.

26

673689R1

NUT

- speed, 1/4 inch NC

14шт.

44

1983176C1

SUPPORT

BRACKET - rotor wrench, no longer available (See Note)

1шт.

See Figure Note.

1шт.

45

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

2шт.

47

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex, flange, self-locking, 5/16 inch NC

2шт.
