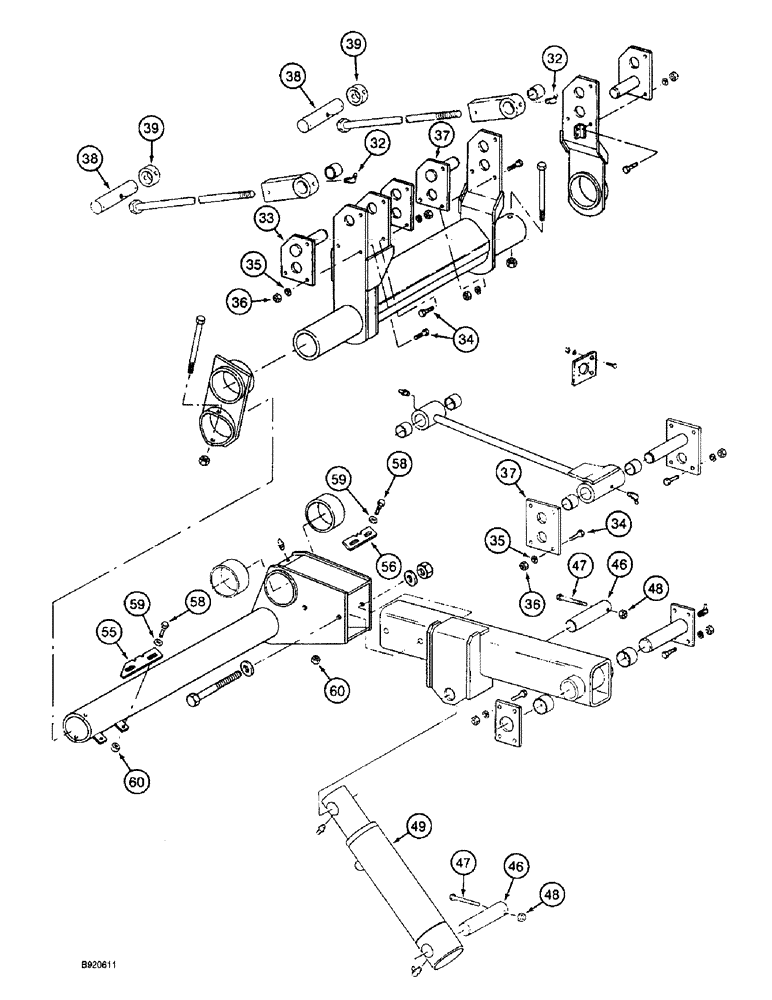

Запчасти Case IH 2044 (9A-70) - DRUM LIFT ARM, 2044 COTTON PICKER (13) - PICKING SYSTEM

32

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

33

1278416C1

SHAFT

- lower, outer

2шт.

34

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

35

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

36

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

37

1278433C1

LARGE PLATE

PLATE - lower

4шт.

38

1982868C1

PIN,50.8mm OD x 110mm L

- radius rod

4шт.

39

1982869C1

SPACER

- radius rod

4шт.

46

1288567C3

PIVOT PIN

PIN - pivot, used in upper position only

4шт.

47

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

4шт.

48

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

4шт.

49

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, parts list page 8-39

2шт.

55

1338018C1

LARGE PLATE

PLATE - adjusting, outer

2шт.

56

1338020C1

LARGE PLATE

PLATE - adjusting, inner

2шт.

58

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

59

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

8шт.

60

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

8шт.
