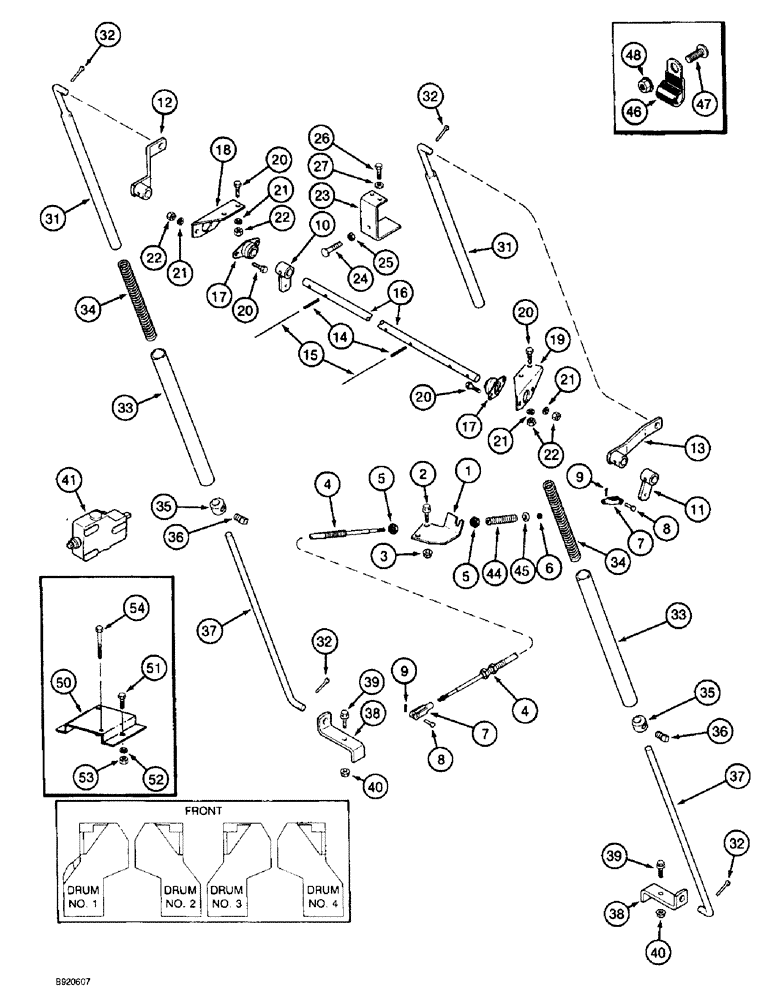

Запчасти Case IH 2044 (9A-62) - HEIGHT CONTROL LINKAGE, 2044 COTTON PICKER (13) - PICKING SYSTEM

1

1982701C1

SUPPORT

Cable, Drum Number 1

1шт.

1

1982700C1

SUPPORT

Cable, Drum Number 4, (Not Shown)

1шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

Drum Number 1 And 4

2шт.

3

231-5146

FLANGE NUT,3/8"-16

Drum Number 1 And 4

2шт.

4

1349863C1

CABLE

Height Control, Drum Number 1 And 4

1шт.

5

425-157

JAM NUT,Jam, 7/16"-20, G5

Drum Number 1 And 4

4шт.

6

NSS

NOT SOLD SEPARAT

NUT, Drum Number 1 And 4

2шт.

7

1338454C2

CLEVIS

Cable, Drum Number 1 And 4

2шт.

8

427-3103

CLEVIS PIN,4.78mm OD x 26.19mm L

Drum Number 1 And 4

2шт.

9

432-48

COTTER PIN,1/16" x 1/2"

Drum Number 1 And 4

2шт.

10

1984026C1

ARM

Cable And Stop, Drum Number 1 And 4

1шт.

11

1982693C1

BAR

Cable, Drum Number 1 And 4

1шт.

12

1982690C1

ARM

Pivot, Large Offset, Drum Number 1 And 4

1шт.

13

1982715C1

ARM

Pivot, Small Offset, Drum Number 1 And 4

2шт.

14

438-11616

LOCK PIN,1/4" x 1", Slotted

Drum Number 1 And 4

5шт.

15

1329485C2

ELECTRICAL WIRE

Retaining, Drum Number 1 And 4

5шт.

16

1982713C1

SHAFT

Pivot, Drum Number 1 And 4

1шт.

17

164864C91

FLANGE,15.89mm ID

Drum Number 1 And 4

2шт.

18

1982685C1

ANGLE BAR

Drum Number 1 And 4

1шт.

19

1982684C1

ANGLE BAR

Drum Number 1 And 4

1шт.

20

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

Drum Number 1 And 4

7шт.

21

492-11031

LOCK WASHER,5/16"

Drum Number 1 And 4

9шт.

22

425-105

NUT,5/16"-18, G5

Drum Number 1 And 4

9шт.

23

1982722C1

SUPPORT

Stop, Drum Number 1 And 4

1шт.

24

28766R1

BOLT

Drum Number 1 And 4

1шт.

25

425-106

NUT,3/8"-16, Cl 5

Drum Number 1 And 4

1шт.

26

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Drum Number 1 And 4

2шт.

27

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16"), Drum Number 1 And 4

2шт.

31

670890R91

ROD

Push, Upper, Qty. 1 For Drum Number 2 And 3, Qty. 2 For Drum Number 1 And 4

1-2шт.

32

432-816

COTTER PIN,1/8" x 1"

Qty. 2 For Drum Number 2 And 3, Qty. 4 For Drum Number 1 And 4

2-4шт.

33

669058R1

TUBE,30.2 mm OD, 406.5 mm Length

Qty. 1 For Drum Number 2 And 3, Qty. 2 For Drum Number 1 And 4

1-2шт.

34

523677R1

SPRING

Push Rod, Qty. 1 For Drum Number 2 And 3, Qty. 2 For Drum Number 1 And 4

1-2шт.

35

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

Qty. 1 For Drum Number 2 And 3, Qty. 2 For Drum Number 1 And 4

1-2шт.

36

485-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

Drum Number 1, 2, 3, And 4

1шт.

37

1982717C1

ROD

Push, Lower, Qty. 1 For Drum Number 2 And 3, Qty. 2 For Drum Number 1 And 4

1-2шт.

38

1982738C1

ANGLE

Control, Push, Qty. 1 For Drum Number 2 And 3, Qty. 2 For Drum Number 1 And 4

1-2шт.

39

409-7612

BOLT,3/8"-16 x 1.09" OAL

Qty. 1 For Drum Number 2 And 3, Qty. 2 For Drum Number 1 And 4

1-2шт.

40

231-5146

FLANGE NUT,3/8"-16

Qty. 1 For Drum Number 2 And 3, Qty. 2 For Drum Number 1 And 4

1-2шт.

41

REF

INSTRUCTION

VALVE ASSEMBLY, Height Control, Drum Number 1 And 4

1шт.

See Figure 8-35

1шт.

44

1990208C1

SPRING

Cable Return, Drum Number 1 And 4

1шт.

45

495-61020

WASHER,0.203" ID x 0.75" OD x 0.067" Thk

Drum Number 1 And 4

1шт.

46

515-2195

CLAMP,3/8", Insul, 1/4" Bolt

Drum Number 2 And 3

1шт.

47

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Drum Number 2 And 3

1шт.

48

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Drum Number 2 And 3

1шт.

50

1288889C1

SUPPORT

Valve, Drum Number 1 And 4

1шт.

51

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Drum Number 1 And 4

2шт.

52

492-11031

LOCK WASHER,5/16"

Drum Number 1 And 4

2шт.

53

425-105

NUT,5/16"-18, G5

Drum Number 1 And 4

2шт.

54

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Drum Number 1 And 4

2шт.
