Запчасти Case IH 2044 (9A-58) - PLANT COMPRESSOR, WITH DEEP CONTOUR POCKETS (13) - PICKING SYSTEM

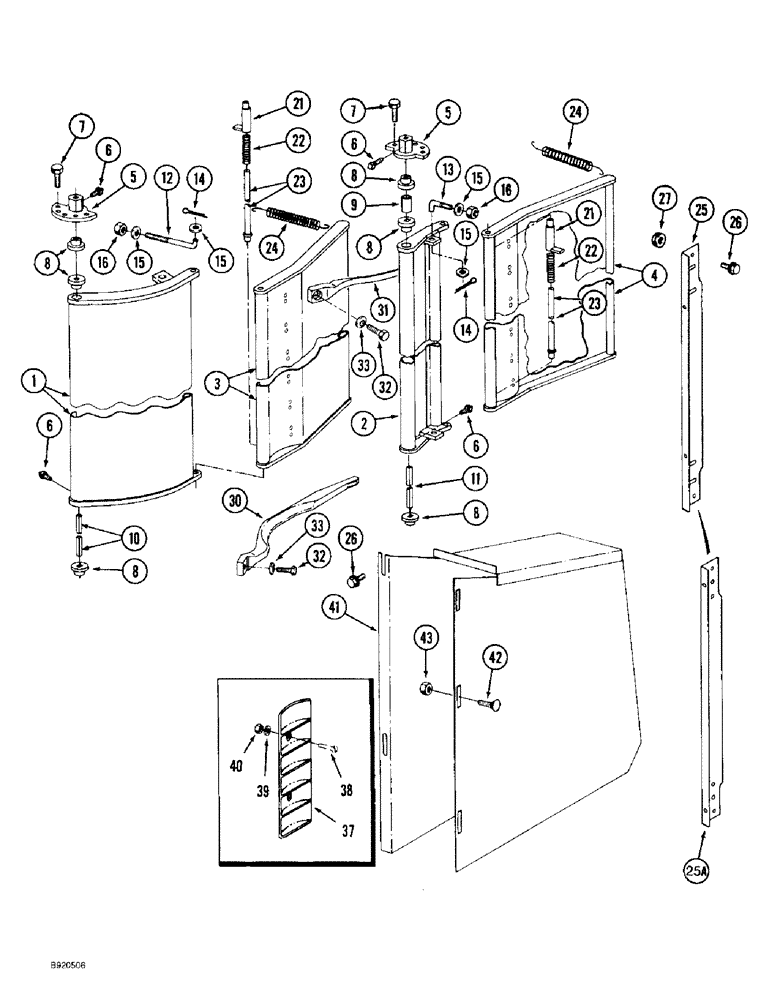

Схема запчастей Case IH 2044 - (9A-58) - PLANT COMPRESSOR, WITH DEEP CONTOUR POCKETS (13) - PICKING SYSTEM
15
43
33
21
27
6
4
15
6
8
42
22
25
33
1
38
16
26
5
32
21
26
12
6
8
7
9
23
31
22
41
10
5
15
7
6
30
23
15
37
40
3
24
14
8
39
32
16
11
13
8
25a
14
2
8
24

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

(NOTE: A single quantity in the \xd2 required\xd3 column

1шт.

REF

INSTRUCTION

means that every drum requires that quantity)

1шт.

1

1546336C2

GUIDE

- plant, front left-hand, one used with 2022 left-hand drum, one used with 2044 drum No. 2 and No. 4 (Replaces guide 1546336C1)

1шт.

1

1546337C2

GUIDE

- plant, front right-hand, not shown, one used with 2022 right-hand drum, one used with 2044 drum No. 1 and No. 3 (Replaces guide 154337C1)

1шт.

2

1546344C2

GUIDE

- plant, rear left-hand, one used with 2022 left-hand drum, one used with 2044 drum No. 2 and No. 4 (Replaces guide 1546344C1)

1шт.

2

1546345C2

GUIDE

- plant, rear right-hand, not shown, one used with 2022 right-hand drum, one used with 2044 drum No. 1 and No. 3 (Replaces guide 1546345C1)

1шт.

3

1546340C1

EXTENSION

- plant guide, front

1шт.

4

1546348C1

EXTENSION

- plant guide, rear

1шт.

5

216542C1

HUB

- torsion

2шт.

6

485-1258

SET SCREW,Sq Hd, 1/4"-20 x 1/2"

SCREW - set, square head, 1/4 NC x 1/2 inch, cup point

4шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

8

216544C1

BUSHING

- guide

6шт.

9

86982778

SPACER,15.8mm ID x 21.34mm OD x 46.02mm L

- 5/8 ID x 1-13/16 inch long

1шт.

10

1982784C1

TORSION BAR

BAR - torsion, front

1шт.

11

1982785C1

TORSION BAR

BAR - torsion, rear

1шт.

12

669752R1

ADJUSTMENT ROD

ROD - adjusting, front

2шт.

13

216543C1

ADJUSTMENT ROD

ROD - adjusting, rear

2шт.

14

32-812

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

4шт.

15

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

16

131-463

NUT,3/8"-16

NUT - heavy hex, self-locking, 3/8 inch NC

4шт.

21

673851R3

ROD

- extension

2шт.

22

10322R

SPRING

- compression

2шт.

23

1982712C1

STEM

ROD - hinge (Replaces rod 673851R2)

2шт.

24

1338869C1

SPRING

- compression

2шт.

25

1982806C1

SUPPORT

CHANNEL - adjusting rod, no longer available, order channel 1982806C2 below

1шт.

25a

1982806C2

SUPPORT

CHANNEL - adjusting rod

1шт.

26

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

2шт.

27

231-5146

FLANGE NUT,3/8"-16

2шт.

30

216828C2

GUIDE

SLAT - plant, left-hand

17шт.

31

216829C2

GUIDE

SLAT - plant, right-hand

17шт.

32

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

34шт.

33

87058C1

BELLEVILLE WASHER

- Belleville lock

34шт.

37

667386R2

PLATE

- compressor

6шт.

38

474-12510

SCREW,FLAT, 1/4" - 28 x 5/8"

- machine, flat head slotted, 1/4 NF x 5/8 inch

18шт.

39

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

18шт.

40

425-114

NUT,1/4"-28, G5

18шт.

41

1278941C2

GUARD

SHIELD - plant, left-hand, one used with 2022 left-hand drum, one used with 2044 drum No. 2

1шт.

41

1278942C2

GUARD

SHIELD - plant, right-hand, not shown, one used with 2022 right-hand drum, one used with 2044 drum No. 3

1шт.

42

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch, three used with 2022 left-hand and right-hand drums, three used with 2044 drum No. 2 and No. 3

1шт.

43

231-5146

FLANGE NUT,3/8"-16

Three used with 2022 left-hand and right-hand drums, three used with 2044 drum No. 2 and No. 3 Flg, USR, 3/8"-16

1шт.

Выбрано товаров: 40
