Запчасти Case IH 2044 (9A-38) - DOFFER (13) - PICKING SYSTEM

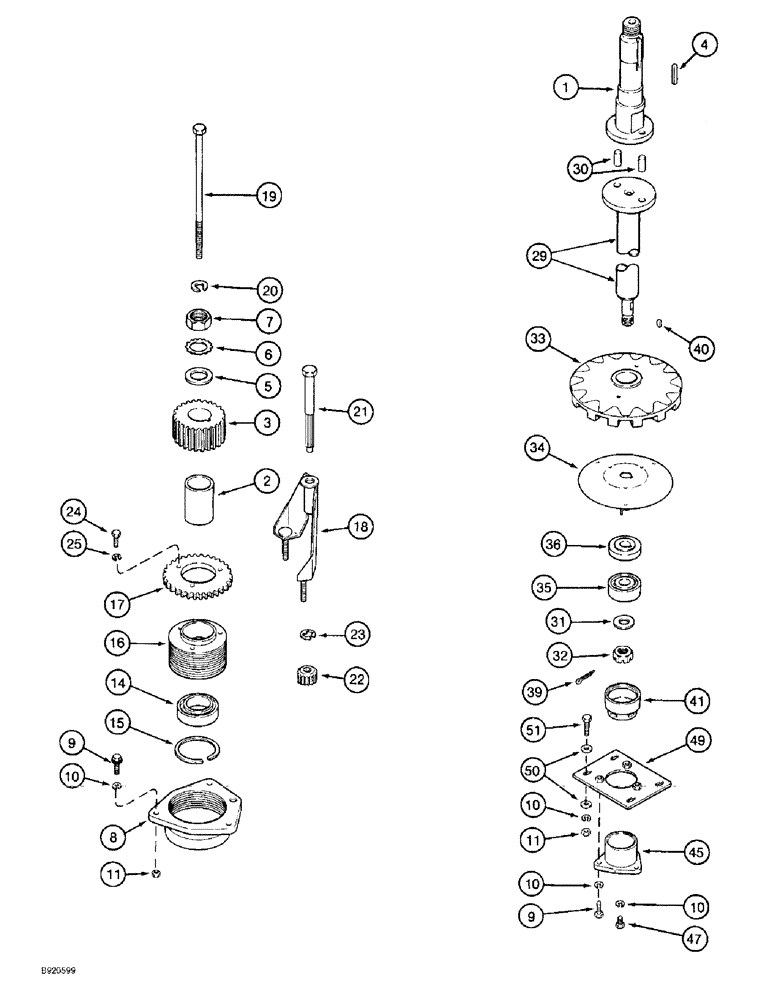

Схема запчастей Case IH 2044 - (9A-38) - DOFFER (13) - PICKING SYSTEM
10
24
7
10
4
39
45
50
34
36
10
35
11
9
10
9
16
30
32
6
49
47
15
3
8
22
14
33
41
2
1
25
29
5
17
40
21
31
11
20
23
19
51
18

Артикул

Название

Примечание

Количество

1

1982374C1

SHAFT

- doffer drive

2шт.

2

1982420C1

SPACER

- 35 x 48 x 73 mm

2шт.

3

1339305C1

PINION

GEAR - doffer drive, 42 tooth, if used

2шт.

3

1339303C1

GEAR

- doffer drive, 36 tooth, if used

2шт.

4

457400R1

KEY,5/16" Sq x 1 3/4", Par

- square, 5/16 x 1-3/4 inch

2шт.

5

495-81190

WASHER,1.16" ID x 1.75" OD x 0.12" Thk

- flat, 1-5/32 x 1-3/4 x 1/8 inch

2шт.

6

192-306

LOCK WASHER,Type W-06

WASHER - bearing lock, SAE No. W-06

2шт.

7

329-1518

JAM NUT,Jam, 1 1/8"-12, G8

2шт.

8

1982372C1

CAGE

- bearing, doffer drive shaft

2шт.

9

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

6шт.

10

492-11038

LOCK WASHER,3/8"

1шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

14

662519R91

BALL BEARING,1.5312" ID x 80 mm OD x 1.083"

- drive shaft

2шт.

15

49137D

RING, SNAP

RING - snap, bearing retainer

2шт.

16

1982373C1

SET SCREW

SCREW - adjusting

2шт.

17

1982389C1

GEAR

- 56 tooth

2шт.

18

1982577C2

SUPPORT

BRACKET - doffer adjusting bolt

2шт.

19

413-8168

BOLT,Hex, 1/2" - 13 x 10-1/2", Gr 5

- hex, 1/2 NC x 10-1/2 inch

2шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

21

1982419C2

BOLT

BOLT - special

2шт.

22

216584C3

GEAR

- spindle drive

6шт.

23

100-3362

SNAP RING,#62, .480" Dia, E-Type

Ring, Retaining, (Replaces 373523R1) #62, .480" Dia, E-Type

2шт.

24

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

6шт.

25

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

1982421C1

SHAFT

ASSEMBLY - doffer, no longer available, order shaft assembly 123613A1

2шт.

123613A1

SHAFT

ASSEMBLY - doffer, no longer available as a unit, order components

1шт.

29

1982375C1

SHAFT

- doffer, no longer available, order shaft assembly 123613A1 and nut 128658A1

1шт.

29

131435A1

SHAFT

- doffer (Replaces shaft 1982375C1)

1шт.

30

37-1614

DOWEL,3/8" x 7/8"

PIN - dowel, 3/8 x 7/8 inch, hardened (Replaces pin 19996R1)

1шт.

31

95-81056

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

- flat, 25/32 x 1-1/4 x 1/16 inch

1шт.

32

425-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF, used with shaft 1982375C1

1шт.

32

128658A1

NUT

- doffer shaft

1шт.

33

204710C2

DOFFER

- black

18шт.

34

1329439C1

DISC

- doffer bottom

1шт.

35

669807R91

BALL BEARING,0.751" ID x 52 mm OD x 0.7"

- shaft, lower

1шт.

36

87282C1

WASHER

- special, doffer shaft lower

1шт.

39

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

40

126-113

WOODRUFF KEY,#61, 3/16" x 5/8", HT

2шт.

41

1339066C1

BEARING CAP,48mm ID x 52mm OD x 40.10mm

- bearing, lower

1шт.

45

669806R2

CAGE

- bearing, lower doffer

2шт.

47

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

2шт.

49

223977C1

PLATE

- adjusting

2шт.

50

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

16шт.

51

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

8шт.

Выбрано товаров: 44
