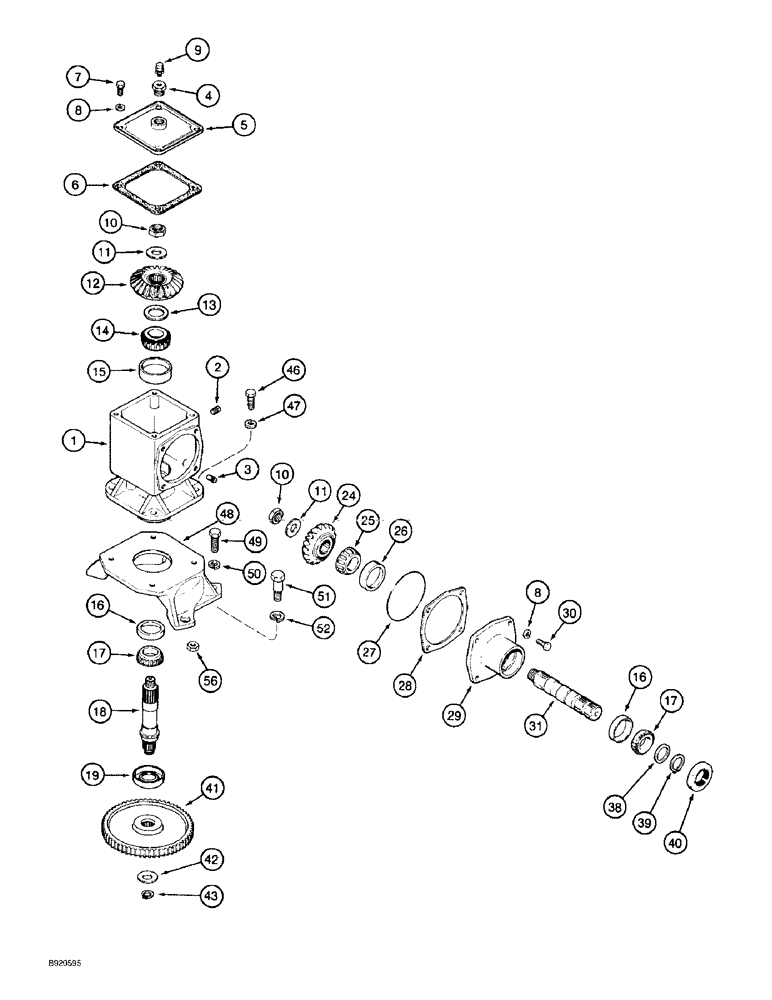

Запчасти Case IH 2044 (9A-18) - GEARBOX, DRUM NUMBER ONE AND FOUR, 2044 COTTON PICKER (13) - PICKING SYSTEM

1984306C2

DRIVE, ANGLE

GEARBOX ASSEMBLY - drum Number 1 and 4, no longer available, order gear assembly 1984306C3

2шт.

1

1984202C2

HOUSING

- drum drive

1шт.

1984306C3

DRIVE, ANGLE

GEARBOX ASSEMBLY - drum Number 1 and 4 (No. 1 Shown)

2шт.

1

1984202C3

HOUSING

- drum drive

1шт.

2

221-841

PLUG

- hex socket, 1/4 inch PT

1шт.

3

86819C1

PLUG

- square head, magnetic, 1/4 inch PT

1шт.

4

28796R1

ORIFICE

REDUCER - straight, 1/2 x 1/8 inch PT

1шт.

5

223857C1

COVER

- housing

1шт.

6

86822C2

GASKET,1.58mm Thk

- cover, housing

1шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

8

492-11038

LOCK WASHER,3/8"

8шт.

9

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

VALVE - vent, includes felt washer, 1/8 PT x 1 inch

1шт.

10

185216C1

LOCK NUT

- hex, self-locking, 7/8 inch NF

2шт.

11

1982956C1

WASHER

- flat, special

2шт.

12

1546152C1

PINION

GEAR - bevel, 24 tooth, forged (Replaces gear 223843C1)

1шт.

86814C1

SHIM KIT

KIT - shim, bevel gear

1шт.

13

NSS

NOT SOLD SEPARAT

SHIM - 0.150 inch, one in kit

1шт.

13

NSS

NOT SOLD SEPARAT

SHIM - 0.138 inch, one in kit

1шт.

13

NSS

NOT SOLD SEPARAT

SHIM - 0.125 inch, one in kit

1шт.

13

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch, four in kit

1шт.

14

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

CONE - tapered roller bearing

1шт.

15

165964R1

BEARING CUP

CUP - tapered roller bearing

1шт.

16

536054R1

BEARING CUP,60mm OD x 11.94mm W

CUP - tapered roller bearing

2шт.

17

536053R1

ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"

CONE - tapered roller bearing

2шт.

18

1982402C1

SHAFT

- output, gearbox

1шт.

19

223876C1

SEAL

- output shaft, used with housing 1984292C2 only

1шт.

19

1990323C1

SEAL,38.05mm ID x 68.33mm OD x 12.7mm Thk

- output shaft, used with housing 1984292C3 only

1шт.

24

1546151C1

PINION

GEAR - bevel, 19 tooth, forged (Replaces gear 223844C1)

1шт.

25

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE - tapered roller bearing, 1-3/8 inch ID

1шт.

26

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Tapered roller (Replaces cup G57451)

1шт.

27

238-5157

O-RING,0.103" Thk x 4.487" ID, -157, Cl 5, 75 Duro

1шт.

86815C1

SHIM KIT

KIT - shim, shaft housing

1шт.

28

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch, two in kit

1шт.

28

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch, two in kit

1шт.

28

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch, two in kit

1шт.

28

NSS

NOT SOLD SEPARAT

SHIM - 0.011 inch, two in kit

1шт.

28

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch, one in kit

1шт.

29

223847C1

EXTENSION

- bearing support

1шт.

30

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

31

1984200C1

SHAFT

- input, gearbox

1шт.

38

199883C1

WASHER,35.08mm ID x 44.93mm OD x 2.51mm Thk

WASHER - bearing, special

1шт.

39

103-16137

SNAP RING,#137. Ext

Ring, Snap, #137, Ext

1шт.

40

223880C1

SEAL

- input shaft, used with housing 1984202C2 only

1шт.

40

1990324C1

SEAL,34.88mm ID x 66.73mm OD x 8mm Thk

- input shaft, used with housing 1984202C3 only

1шт.

41

1982400C1

PINION

GEAR - 95 tooth

1шт.

42

1982956C1

WASHER

- flat, special

1шт.

43

100-1687

SNAP RING,#87, Ext

Ring, Snap, (Replaces 21424R1) #87, Ext

1шт.

46

326-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

4шт.

47

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

48

1982422C1

SUPPORT

- gearbox

1шт.

49

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

2шт.

50

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

51

1982634C2

BOLT

BOLT - shoulder, 5/8 NC x 1-3/4 inch (Replaces bolt 1982634C1)

2шт.

52

892-11020

LOCK WASHER,M20

WASHER, LOCK, M20

2шт.

56

329-108

NUT,1/2"-13, G8

4шт.
