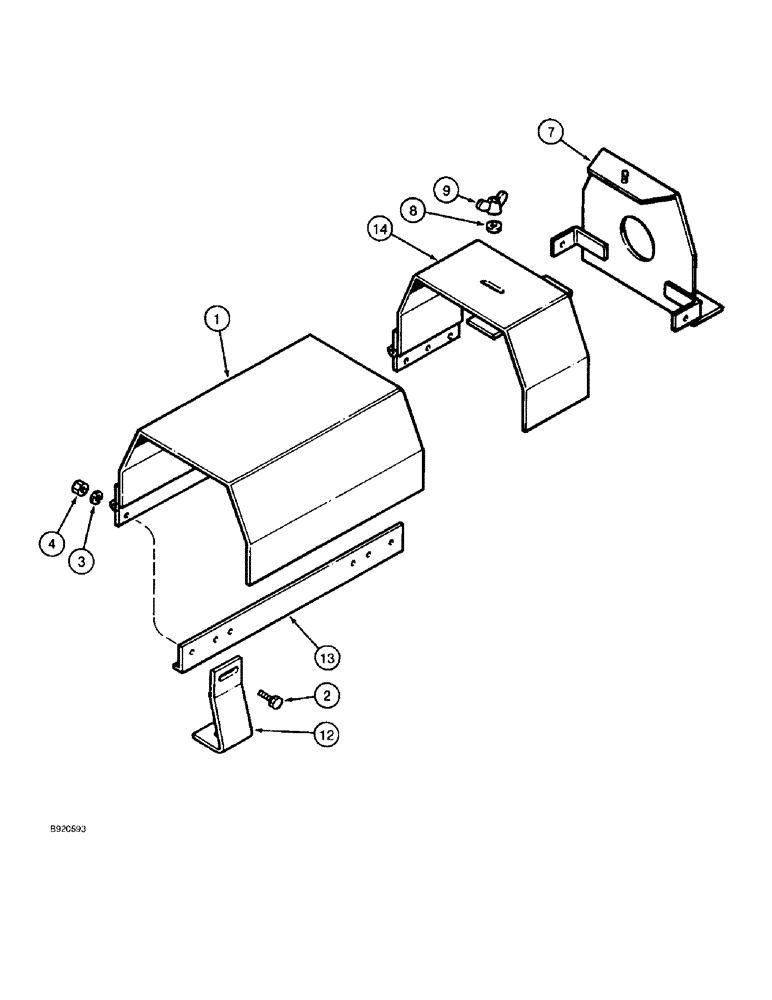

Запчасти Case IH 2044 (9A-12) - DRIVE LINE SHIELD (13) - PICKING SYSTEM

1

1339281C1

GUARD

SHIELD - drum driveline

2шт.

2

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

8шт.

3

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

4

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

8шт.

7

1339210C2

ANGLE BAR

BRACKET - shield support

2шт.

8

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

9

86627130

WING NUT,1/4"-20

NUT - wing, 1/4 inch NC

2шт.

12

1983146C1

SUPPORT

- shield

2шт.

13

1339212C1

ANGLE BAR

BRACKET - hinge support

2шт.

14

1339205C2

GUARD

SHIELD - drive line

2шт.
