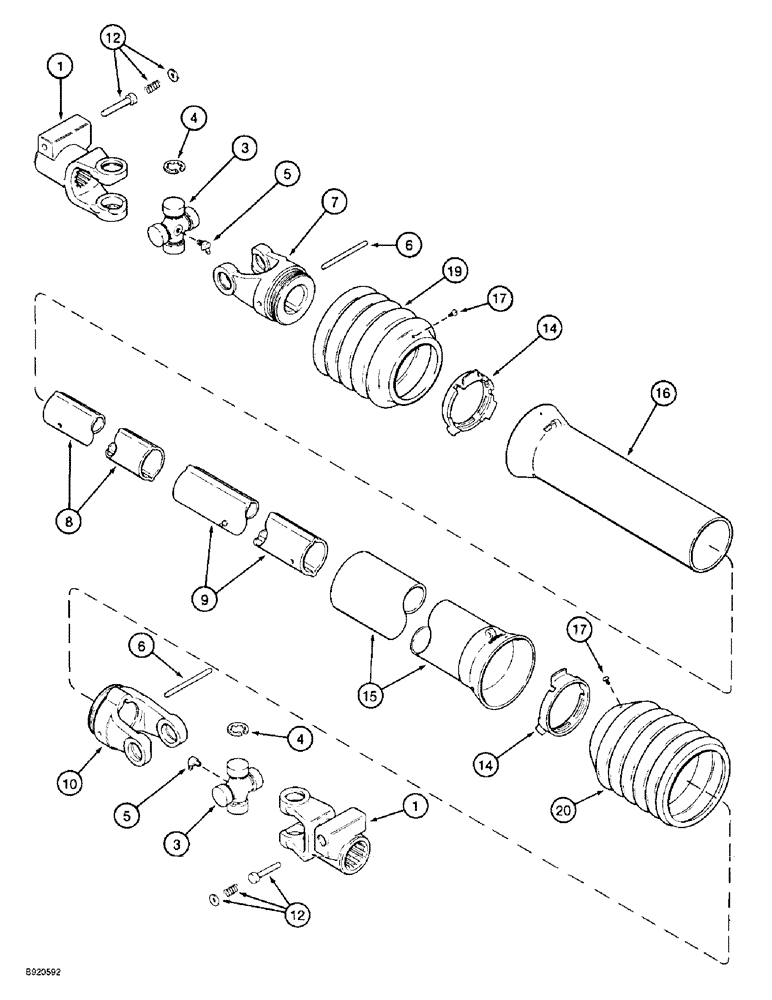

Запчасти Case IH 2044 (9A-10) - SHIELDED TELESCOPING SHAFT, GEAR BOX TO GEAR BOX, 2044 COTTON PICKER (13) - PICKING SYSTEM

1984234C2

SHAFT

ASSEMBLY - cross drum drive (Replaces shaft assembly 1984234C1)

2шт.

1

1984240C1

COUPLING

YOKE - cross shaft splined

2шт.

1984235C1

SPIDER ASSY.

KIT - universal joint

2шт.

3

NSS

NOT SOLD SEPARAT

CROSS - universal joint, with bearing, order kit 1984235C1

1шт.

4

NSS

NOT SOLD SEPARAT

RING - snap, bearing lock, order kit 1984235C1

4шт.

5

NSS

NOT SOLD SEPARAT

FITTING - grease, 67-1/2 degree, order kit 1984235C1

1шт.

6

838-1865

LOCK PIN,M8 x 65 Slotted

PIN - roll, 8 x 65 mm (Replaces pin 30868R1)

2шт.

7

1984241C1

COUPLING

YOKE - inner shaft

1шт.

8

1984243C1

TUBE,34.5 mm OD

- inner profile

1шт.

9

1988779C1

TUBE,41 mm OD, 375 mm Length

- outer profile

1шт.

10

1984242C1

COUPLING

YOKE - outer shaft

1шт.

12

1281458C1

KIT

- pin

2шт.

1984219C1

PACKAGE

KIT - grease fittings, package of 10, not shown

1шт.

1984257C1

PACKAGE

KIT - cross shaft shield

1шт.

14

1281450C1

RING

- bearing

2шт.

15

NSS

NOT SOLD SEPARAT

SHIELD - outer, order kit 1984257C1

1шт.

16

NSS

NOT SOLD SEPARAT

SHIELD- inner, order kit 1984257C1

1шт.

17

NSS

NOT SOLD SEPARAT

SCREW - cone shield, order kit 1984257C1

2шт.

NSS

NOT SOLD SEPARAT

DECAL - safety, order kit 1984257C1

1шт.

19

NSS

NOT SOLD SEPARAT

SHIELD - cone, 5 rib, order kit 1984257C1

1шт.

20

NSS

NOT SOLD SEPARAT

SHIELD - cone, 8 rib, order kit 1984257C1

1шт.
