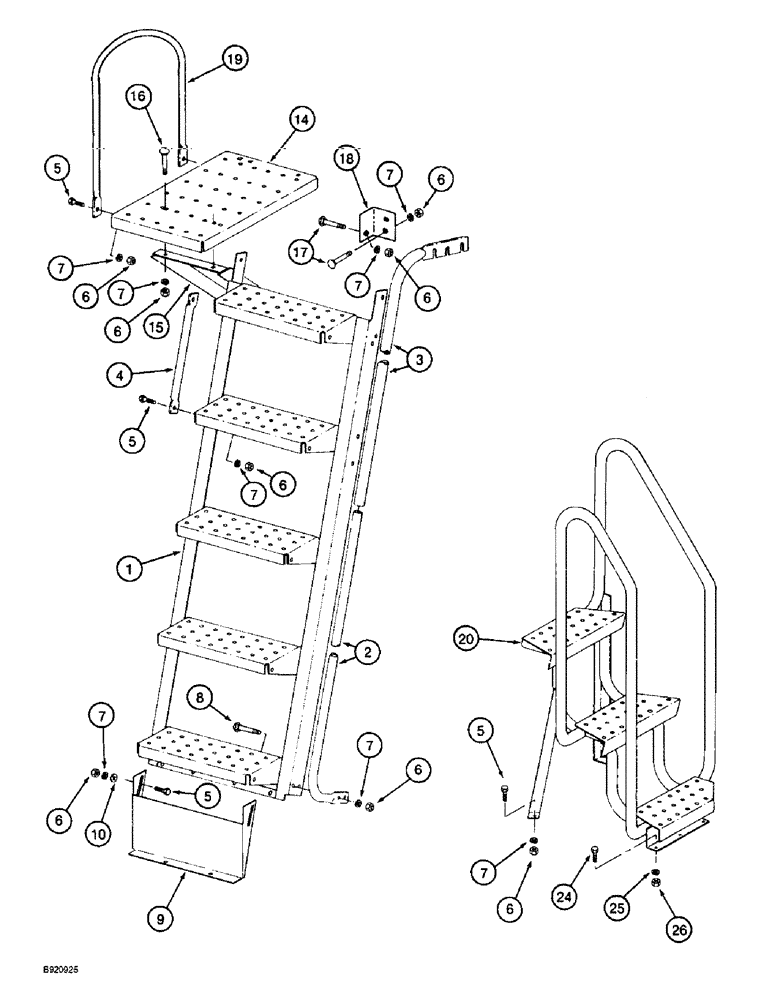

Запчасти Case IH 2044 (9F-34) - STEPS AND LADDERS, 2044 COTTON PICKER (12) - CHASSIS

1

1278706C5

LADDER

- operators

1шт.

2

1278711C1

RAIL

- ladder, inner

1шт.

3

1982289C1

GRAB RAIL

RAIL - ladder, outer

1шт.

4

1285388C1

SUPPORT

RAIL - hand

1шт.

5

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

6

425-106

NUT,3/8"-16, Cl 5

14шт.

7

492-11038

LOCK WASHER,3/8"

14шт.

8

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

2шт.

9

1266362C2

SUPPORT

- chute ladder

1шт.

10

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

14

1278720C4

PLATFORM

- operators

1шт.

15

1278724C1

SUPPORT

BRACE - platform

1шт.

16

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

7шт.

18

1278726C1

SUPPORT

BRACKET - platform

1шт.

19

87138C1

RAIL ASSY.

RAIL - hand

1шт.

20

1982800C2

STEP

PLATFORM - drum

1шт.

24

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

25

492-11038

LOCK WASHER,3/8"

1шт.

26

425-106

NUT,3/8"-16, Cl 5

1шт.
