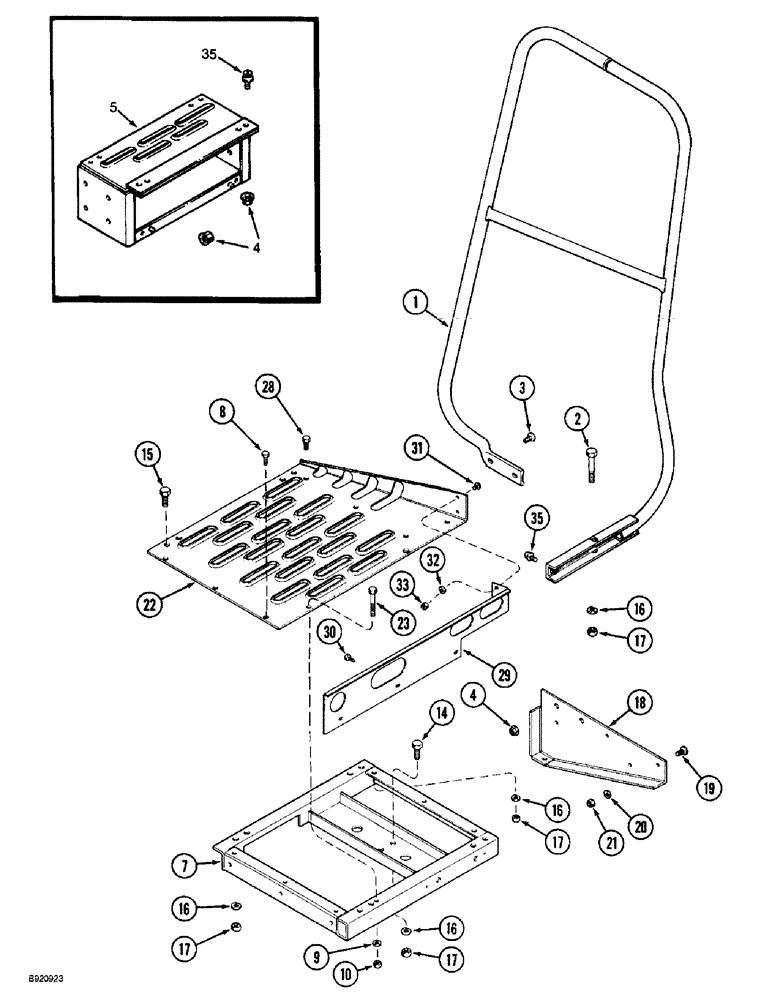

Запчасти Case IH 2044 (9F-30) - PLATFORM EXTENSION (12) - CHASSIS

1

198548C2

RAIL

- hand, platform extension, front

1шт.

2

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

3

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

2шт.

4

231-5146

FLANGE NUT,3/8"-16

7шт.

5

198482C2

SUPPORT ASSY.

SUPPORT - operators platform extension, use with skip row attachment

1шт.

7

1278508C4

SUPPORT

- operators platform

1шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

9

492-11038

LOCK WASHER,3/8"

8шт.

10

425-106

NUT,3/8"-16, Cl 5

8шт.

14

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

6шт.

15

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

11шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

11шт.

22

198547C3

LARGE PLATE

TREAD - platform extension

1шт.

23

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

1шт.

28

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

29

198542C3

SUPPORT

- extension, right-hand

1шт.

30

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch

3шт.

31

1330152C1

SCREW,Sl Serr Truss Hd, 5/16" - 18 x 3/4"

2шт.

32

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

33

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

35

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

5шт.
